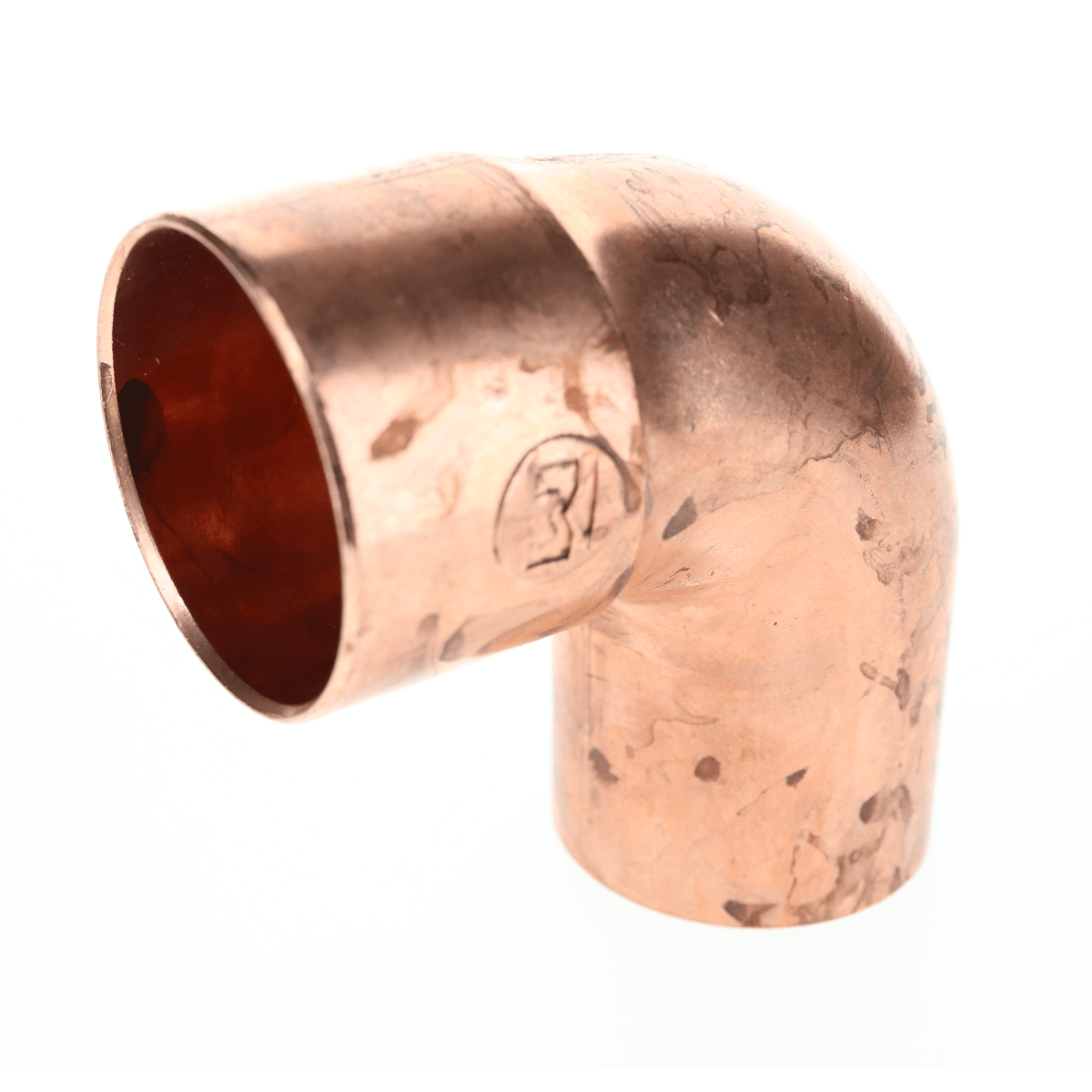

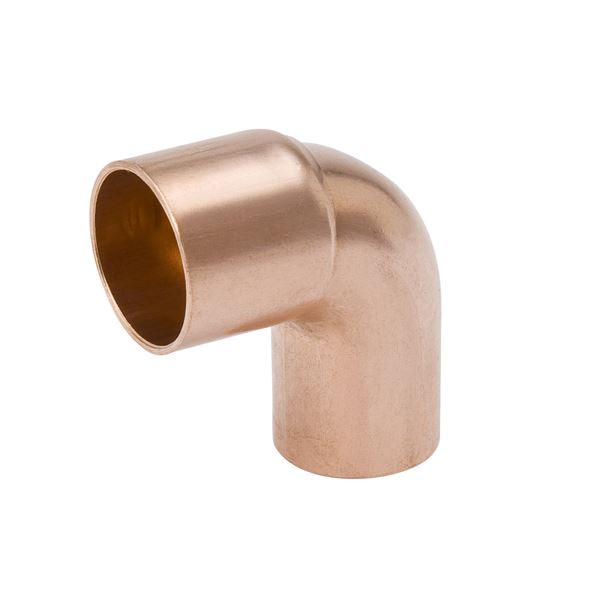

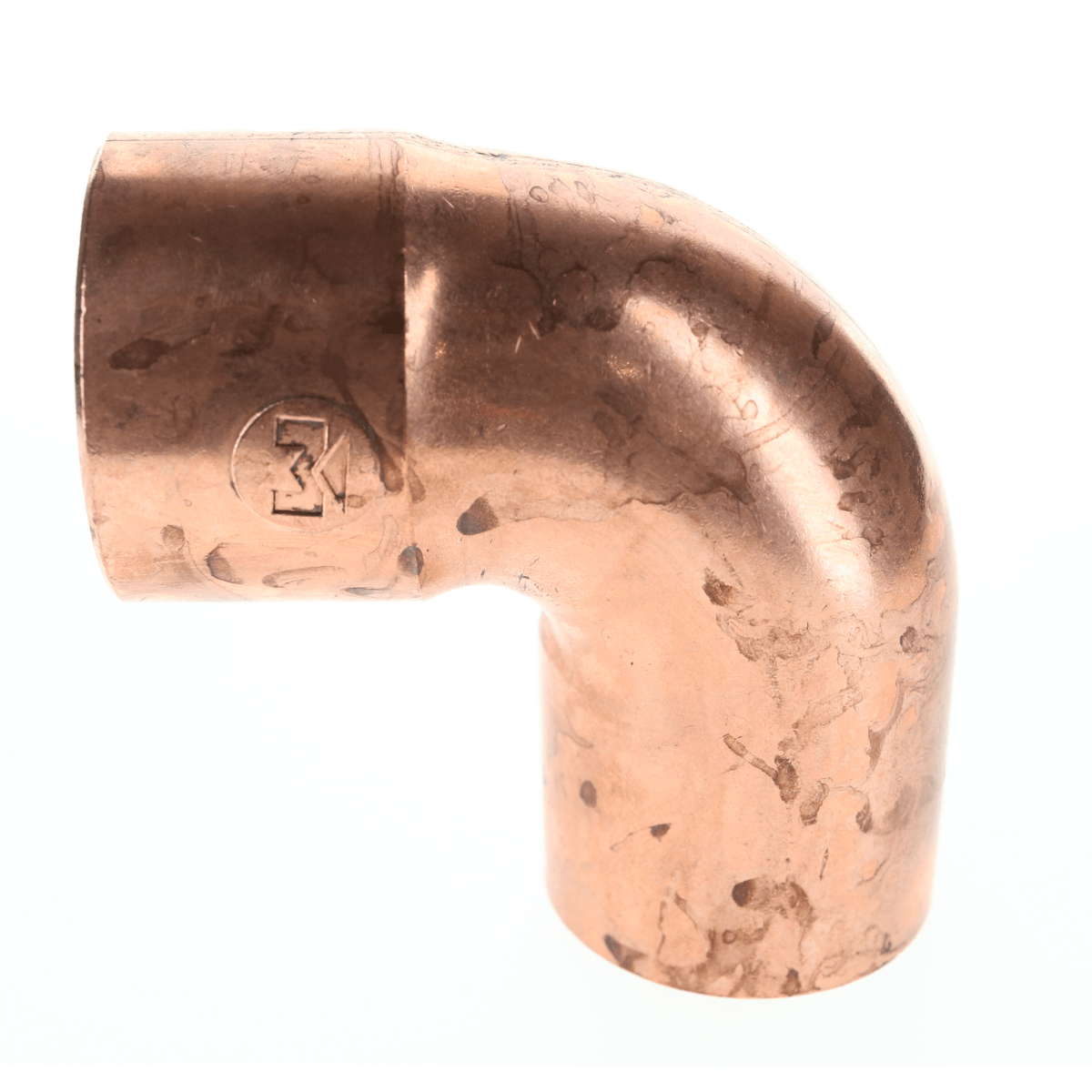

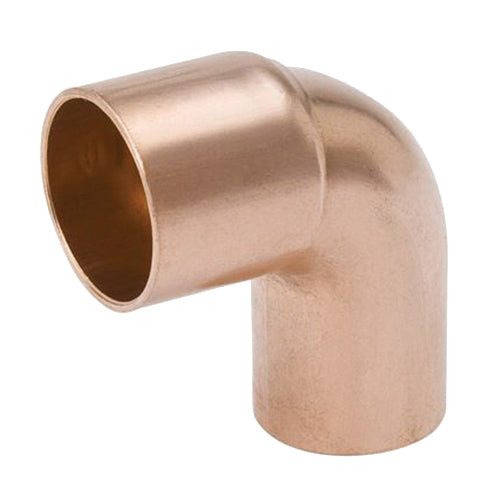

Mueller Streamline W 02385 short radius street elbow (1-1/2 in / 90°)

Product Description

The Mueller Streamline W 02385 is a 90-degree short-radius street elbow constructed of wrot copper for above-ground potable water supply systems. It provides a 1-1/2 inch nominal connection with a 1-5/8 inch outside diameter and FTG x C solder-joint connection, and measures approximately 3.25 inches overall. The fitting is rated to 700 psi and conforms to NSF 61G and applicable ASME standards for pressurized plumbing and HVACR supply systems.

• Short-radius 90° street elbow, nominal 1-1/2 in with 1-5/8 in outside diameter and 3.25 in overall length
• FTG x C solder-joint (sweat) connection suitable for copper tubing installations
• Rated to 700 psi and certified to NSF 61G and ASME standards for pressurized plumbing/HVACR systems

Product Highlights

1-1/2 in short-radius 90° wrot copper street elbow, FTG x C, 700 psi, NSF 61G

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02385
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• MPN: W 02385
• Model: WE-503
• Type: Short radius street elbow
• Angle: 90 deg
• Nominal Size: 1-1/2 in
• Outside Diameter: 1-5/8 in (1.625 in)
• Connection Type: FTG x C (solder-joint / sweat)
• Material: Wrot copper
• Pressure Rating: 700 psi
• Overall Length: 3.25 in
• Overall Height: 3.12 in
• Overall Width: 1.74 in
• Weight: 0.44 lb
• Standards/Certifications: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Intended Use: Above-ground potable water supply systems; plumbing and HVACR supply/pressurized systems
• UPC: 685768208990
