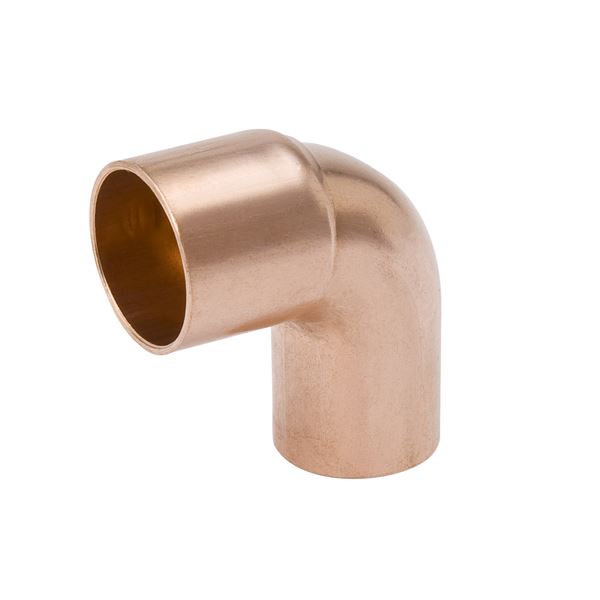

Mueller Streamline W 02384 WE-503 street elbow short radius 90 deg (1-1/4 FTG x 1-1/4 C)

Product Description

Mueller Streamline W 02384 is a WE-503 short radius 90 deg street elbow designed for copper solder-joint plumbing systems. The fitting is constructed of wrot copper with FTG (male solder) to C (cup female solder) connections and nominal size 1-1/4 x 1-1/4 inch. It is intended for above-ground potable water supply systems and is manufactured to ASME and NSF 61G standards.

• Short radius 90 deg street elbow, model WE-503, nominal 1-1/4 x 1-1/4 inch (FTG x C).
• Wrot copper construction with 1-3/8 inch outer diameter and weight approximately 0.29 lb.
• Meets NSF 61G and applicable ASME standards for copper solder-joint fittings; designed for above-ground potable water supply systems.

Product Highlights

90 deg short radius copper street elbow, FTG x C connections, intended for above-ground potable water systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02384

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 02384
• Model: WE-503
• Item Name: Street Elbow
• Type: Short Radius
• Bend Angle: 90 deg
• Connection Type: FTG x C (male solder x cup female solder)
• Nominal Size: 1-1/4 x 1-1/4 Inch
• Outer Diameter: 1-3/8 Inch
• Material: Wrot copper
• Weight: 0.29 lb
• Overall Length: 2.86 in
• Overall Height: 2.86 in
• Overall Width: 1.49 in
• Standards: NSF 61G; ASME (applicable fittings standards)
• Intended Use: For use in above-ground potable water supply systems
• Alternate Description: 1-3/8 OD FTG x C 90 ELL
