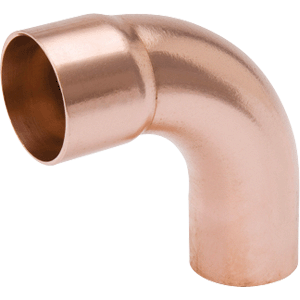

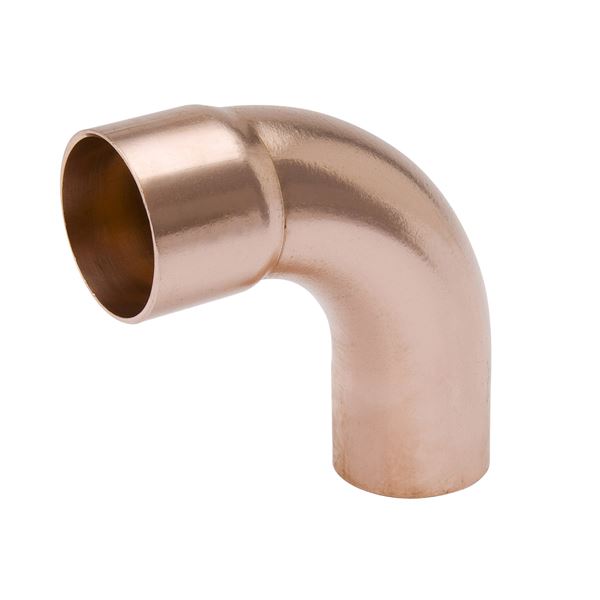

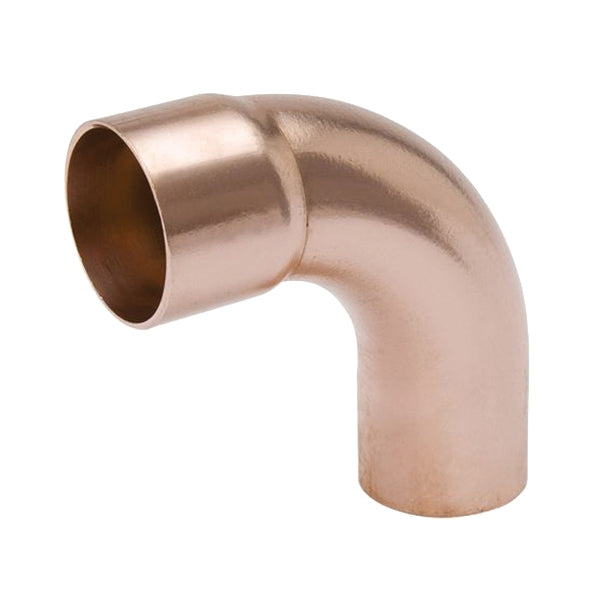

Mueller Streamline W 02359 Long Radius 90 Degree Street Elbow 2 in (WE-503L)

Product Description

The Mueller Streamline W 02359 is a 2 in long-radius 90-degree street elbow (Ftg x C) constructed of wrought copper or bronze for above-ground potable water supply systems. The solder-joint fitting provides a long-turn flow path and is rated to 700 psi. It conforms to ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1 and meets NSF 61-G for potable water applications.

• 2 in nominal size long-radius 90° street elbow with Ftg x C solder-joint connection
• Constructed of wrought copper or bronze; rated to 700 psi for pressurized systems
• Meets ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1 and NSF 61-G

Product Highlights

2 in long-radius 90° street elbow (Ftg x C); wrought copper construction; 700 psi; ASME and NSF 61-G compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02359
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer: Mueller Industries
• Manufacturer Part Number: W 02359
• Model: WE-503L
• Series: Streamline
• Material: Wrought copper or bronze
• Form: Wrot
• Nominal Size: 2 in
• Connection Sizes (OD): 2-1/8 in x 2-1/8 in
• Connection Type: Ftg x C (fitting x copper solder/joint)
• Angle: 90 deg
• Type: Long radius street elbow
• Pressure Rating: 700 psi
• Standards/Certifications: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61-G
• Length: 5.43 in
• Overall Height: 5.28 in
• Overall Width: 2.25 in
• Item Weight: 1.23 lb
• Application: Above-ground potable water supply systems
• UPC: 685768208938
• Alternate Part Numbers: W02359, WE-503L, EC4UCF
