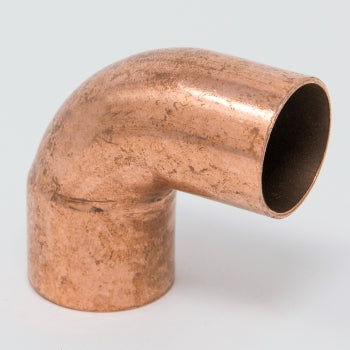

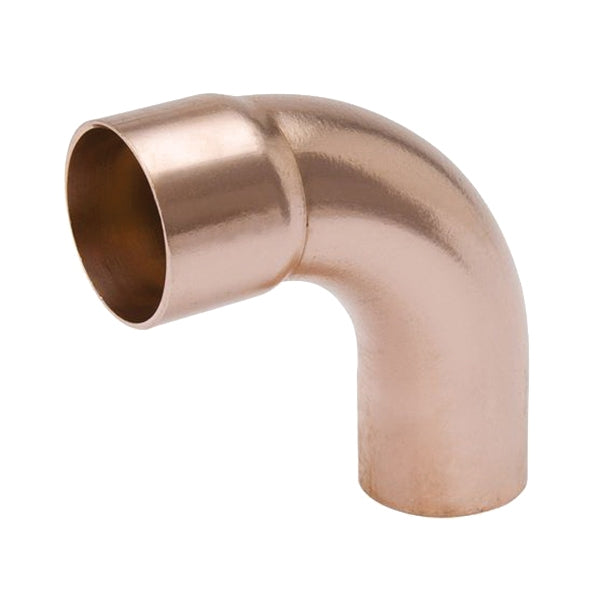

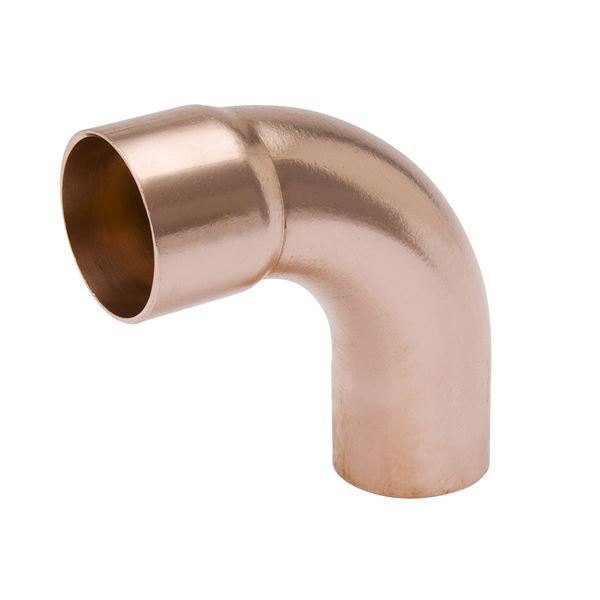

Mueller Streamline W 02355 Street Elbow 90 LR (1-1/2 in)

Product Description

Mueller Streamline W 02355 is a 90° long radius street elbow for copper piping, nominal 1-1/2 in with 1-5/8 in outside diameter. The fitting features a FTG x OD connection (female fitting x OD), is constructed of copper/wrot copper, and is intended for above-ground potable water supply systems with a 700 psi pressure rating and compliance to applicable ASME and NSF 61-G standards.

• 90° long radius street elbow for solder or sweat connections with FTG x OD configuration
• Nominal 1-1/2 in size, 1-5/8 in outside diameter, constructed of copper/wrot copper
• Rated to 700 psi for above-ground potable water supply systems; meets ASME and NSF 61-G standards

Product Highlights

90° long radius copper street elbow, 1-1/2 in nominal (1-5/8 in OD), FTG x OD connection, 700 psi rating, ASME and NSF 61-G compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02355
• Country of Origin: Domestic

Technical Specifications

• Brand: MUELLER STREAMLINE
• MPN: W 02355
• Item Number: W 02355
• Model: WE-503L
• Nominal Size: 1-1/2 in
• Outside Diameter: 1-5/8 in
• Angle: 90 deg
• Type: Long Radius (LR) Street Elbow
• Connection Type: FTG x OD (female fitting x OD)
• End Types: Fitting (male)/Cup (female) variations noted across sources
• Material: Copper (wrot copper)
• Pressure Rating: 700 psi
• Application: Above-ground potable water supply systems, pressure/supply systems
• Standards/Certifications: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61-G
• Overall Length: 4.31 in
• Overall Height: 4.15 in
• Overall Width: 1.74 in
• Weight: 0.60 lb
• UPC: 685768208921
• Part Number / SKU: COPF-150-LTST90-C
