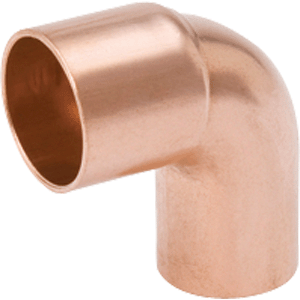

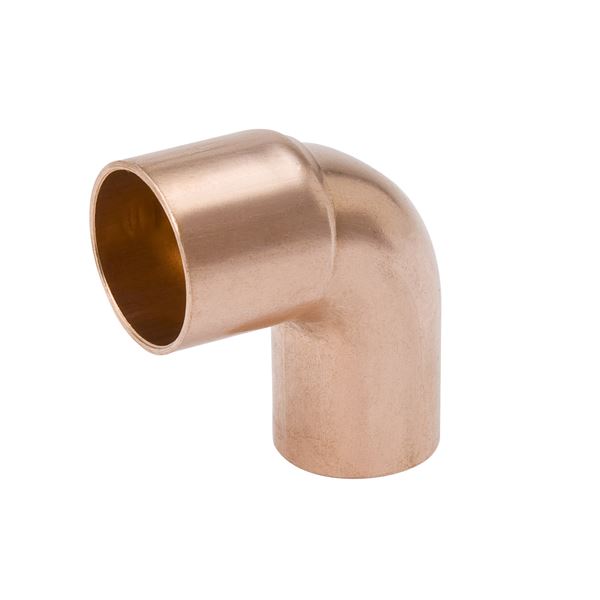

Mueller Streamline W 02344 90 Degree Elbow Short Radius Street FTG x C 1 inches

Product Description

Mueller Streamline W 02344 is a 90 degree short-radius street elbow (FTG x C) made of wrot copper for solder-joint connections in above-ground potable water supply systems. The fitting measures 2.64 in overall length, 2.53 in overall height, and 1.21 in overall width, with 1" end sizes for both ends. It is manufactured to applicable ASME standards and meets NSF 61G where applicable for pressurized potable water applications.

• Construction: wrot copper solder-joint fitting intended for above-ground potable water supply systems.
• Connection: FTG x C end configuration with 1" end sizes (male fitting solder and female cup solder).
• Standards and dimensions: Manufactured to ASME B16 series standards; overall dimensions 2.64 in L x 2.53 in H x 1.21 in W; meets NSF 61G where applicable.

Product Highlights

Short-radius 90 degree street elbow for solder-joint copper potable water piping; ASME and NSF 61G referenced.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02344

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 02344
• Item Number: W 02344
• Part Style: WE-503
• Manufacturer Name: Mueller Streamline
• Product Type: Elbow
• Sub-Type: Short radius street elbow
• Angle: 90 Degree
• End Type: FTG x C (Fitting male solder x Cup female solder)
• End Size: 1"
• Connection Sizes: 1" x 1"
• Material: Wrot copper
• Form: Wrot
• Series: Streamline
• Weight: 0.22 lb
• Overall Length: 2.64 in
• Overall Height: 2.53 in
• Overall Width: 1.21 in
• Standards: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Operating Temperature: See CDA-Copper-Fitting-Pressure-Temp-Ratings
• Operating Pressure: See CDA-Copper-Fitting-Pressure-Temp-Ratings
• Alternate Part Numbers: 30685768208908, MBCWE503-1-1/8, SR118ST, W02344
