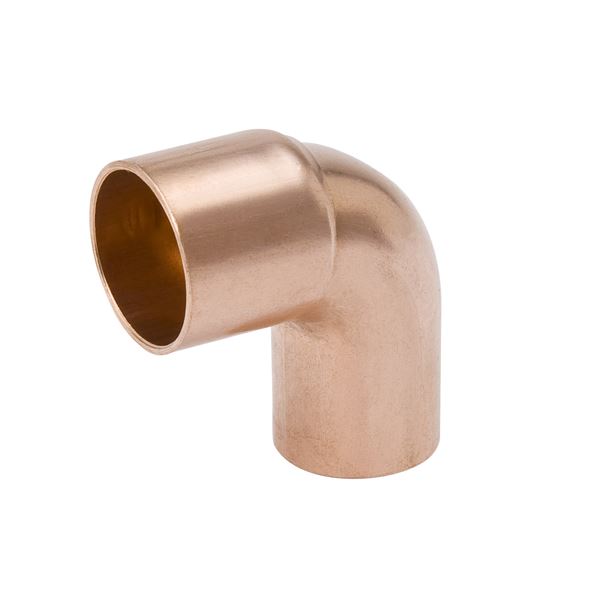

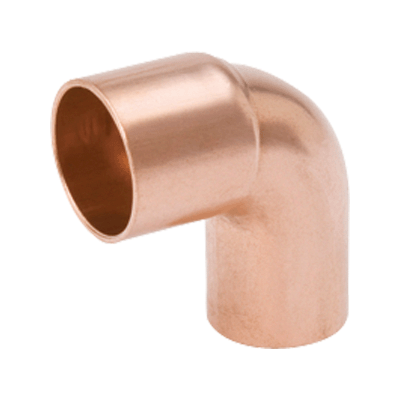

Mueller Streamline W 02312 90° Elbow Short Radius Street Ftg x C (1/4 inches)

Product Description

Mueller Streamline W 02312 is a 90° short-radius street elbow for copper solder-joint piping with an FTG x C end configuration. It provides a compact 90-degree change of direction for 1/4 inch nominal (3/8 inch OD) tubing used in potable water and HVAC systems. Constructed of wrot copper, the fitting meets NSF 61G and applicable ASME standards and has an overall length of 0.88 in.

• 90° short-radius street elbow with FTG x C end configuration (male fitting x cup female solder).
• Nominal size 1/4 inch (3/8 inch OD); overall length 0.88 in, height 0.97 in, width 0.44 in; item weight 0.02 lb.
• Wrot copper construction for solder-joint pressure systems; meets NSF 61G and ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1.

Product Highlights

90° short-radius copper street elbow, FTG x C ends, 1/4" nominal (3/8" OD), meets NSF 61G and ASME standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02312

Technical Specifications

• Brand: Mueller Streamline
• MPN: W 02312
• Item Number: W 02312
• Product Name: 90° Elbow Short Radius Street, FTG x C, 1/4"
• Style: WE-503
• Angle: 90°
• End Configuration: FTG x C (Fitting male solder x Cup female solder)
• Connection Size (Nominal): 1/4"
• Connection Size (OD): 3/8" x 3/8"
• Material: Wrot copper
• Form: Wrot
• Standards/Certifications: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• UPC: 685768208853
• Weight: 0.02 lb
• Dimensions: Overall length 0.88 in; overall height 0.97 in; overall width 0.44 in
• Operating Temperature: See CDA copper fitting pressure and temperature ratings
• Operating Pressure: See CDA copper fitting pressure and temperature ratings
• Use/Application: Copper solder-joint pressure systems; potable water supply; plumbing and HVAC piping
• Product Code: WE-503
• Series/Brand: Streamline
