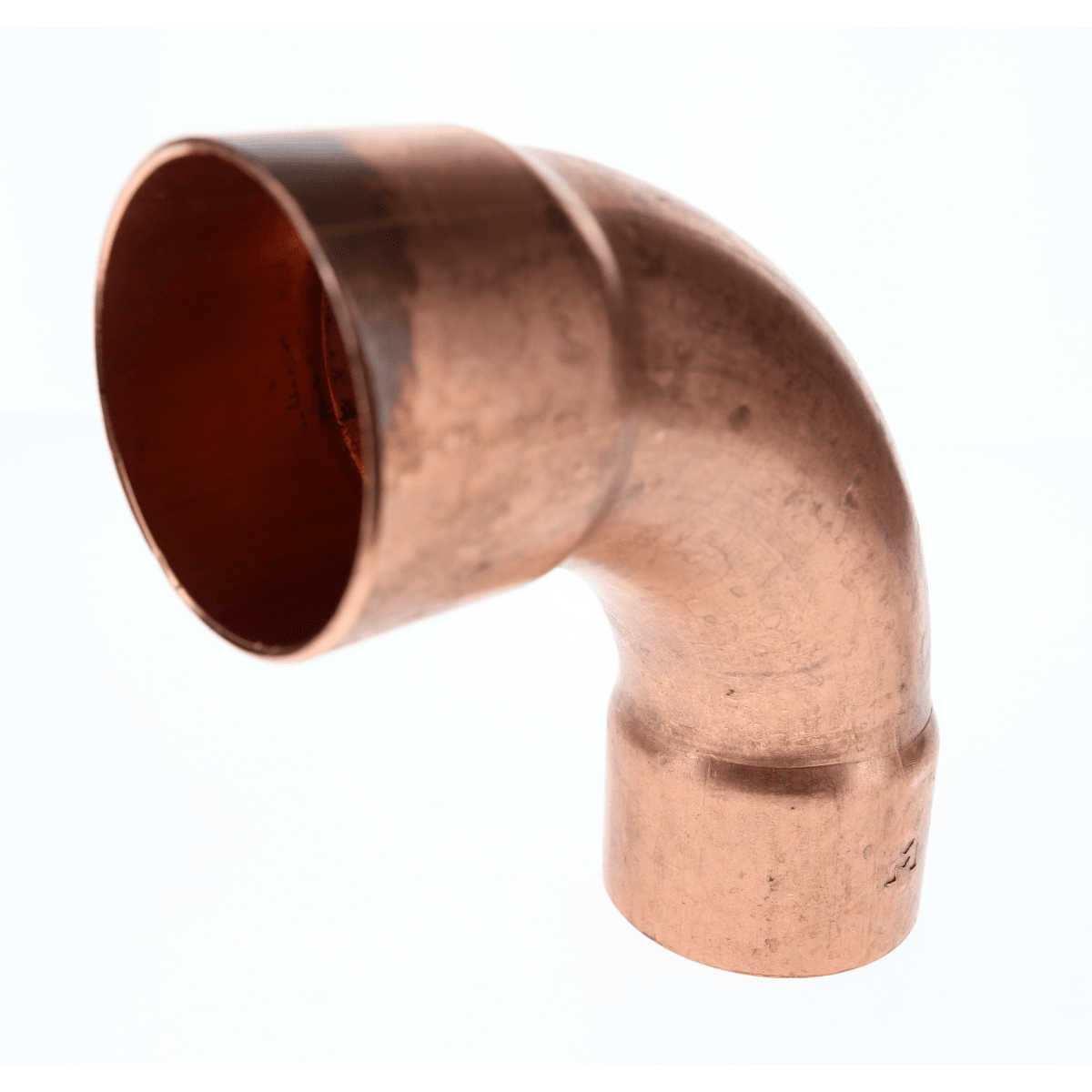

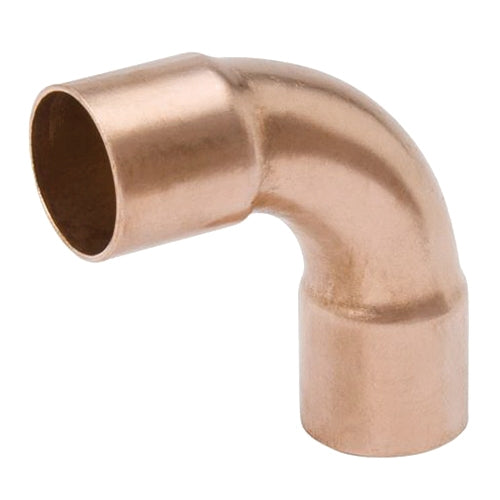

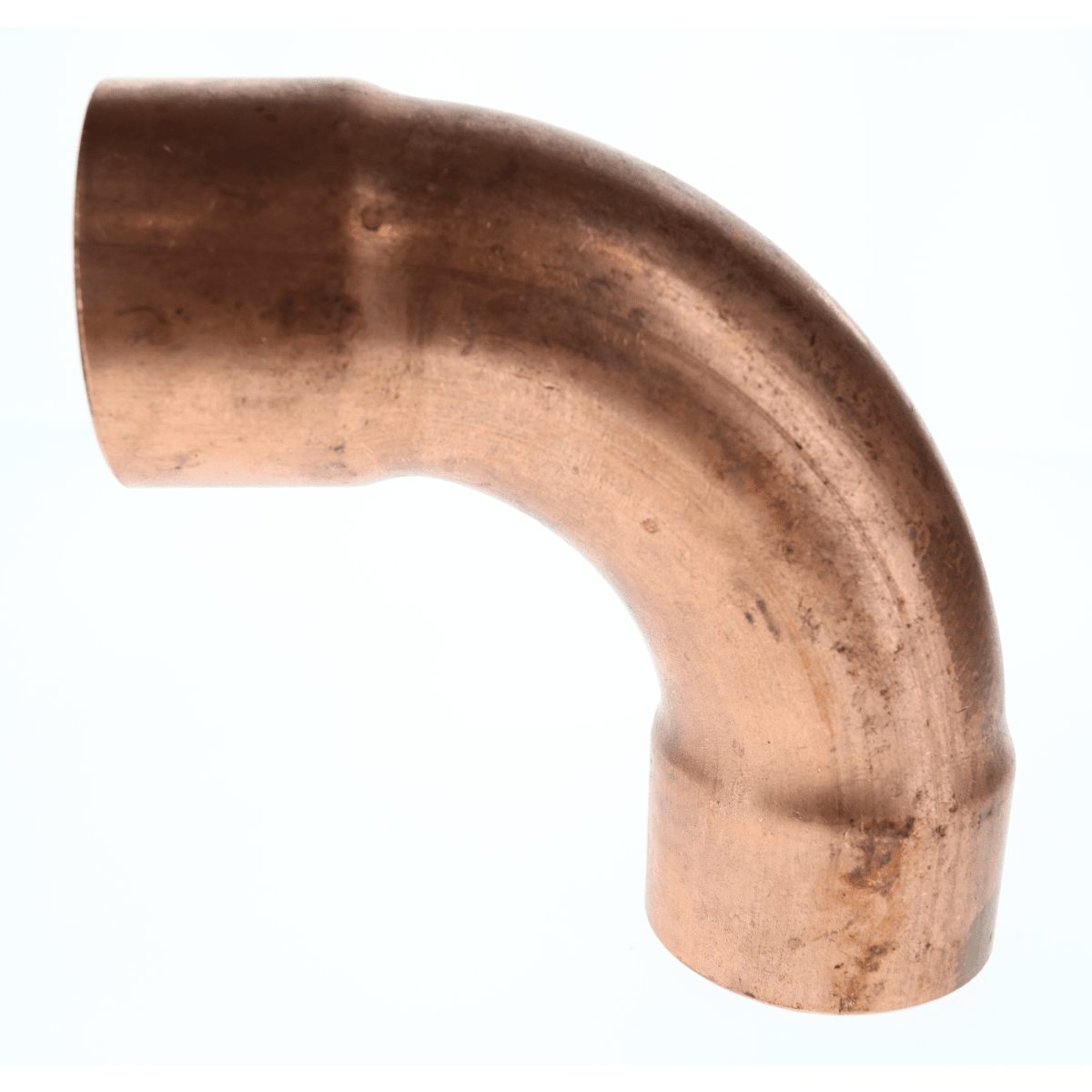

Mueller Streamline W 02092 3 C x C Long Radius 90 Elbow (3 in) WE-500L

Product Description

Mueller Streamline W 02092 is a 3 in long-radius 90° copper elbow with C x C (cup by cup) solder-cup connections designed for above-ground potable water and pressurized supply systems. The fitting has a 3-1/8 in outside diameter, a 700 psi pressure rating, and is constructed of wrought copper (also available in bronze). It meets multiple ASME standards and NSF 61-G for plumbing applications.

• Long-radius 90° elbow with C x C female solder-cup connections for 3 in nominal pipe
• Constructed of wrought copper, 3-1/8 in outside diameter, 700 psi pressure rating
• Meets ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1 and NSF 61-G

Product Highlights

3 in long-radius 90° copper elbow, C x C solder cups, 700 psi, NSF 61-G

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02092
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• MPN: W 02092
• Model: WE-500L
• Product Type: Long-radius 90° elbow
• Angle: 90 deg
• Connection Type: C x C (cup by cup, female solder cup)
• Connection Sizes: 3-1/8 in x 3-1/8 in
• Nominal Size: 3 in
• Outside Diameter: 3-1/8 in
• Pressure Rating: 700 psi
• Material: Wrought copper (also available in bronze)
• Overall Length: 8.57 in
• Overall Height: 8.57 in
• Overall Width: 3.28 in
• Weight: 3.13 lb
• Standards/Certifications: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61-G
• Intended Use: Above-ground potable water supply systems; pressurized supply systems; refrigeration/HVAC applications
• Series: Streamline
• Item Name: Elbow
• UOM: EA
• Country of Origin: Domestic
• Alternate Part Numbers: W02092; WE500L-3-1/8; COPF-300-LT90-C; EL318
