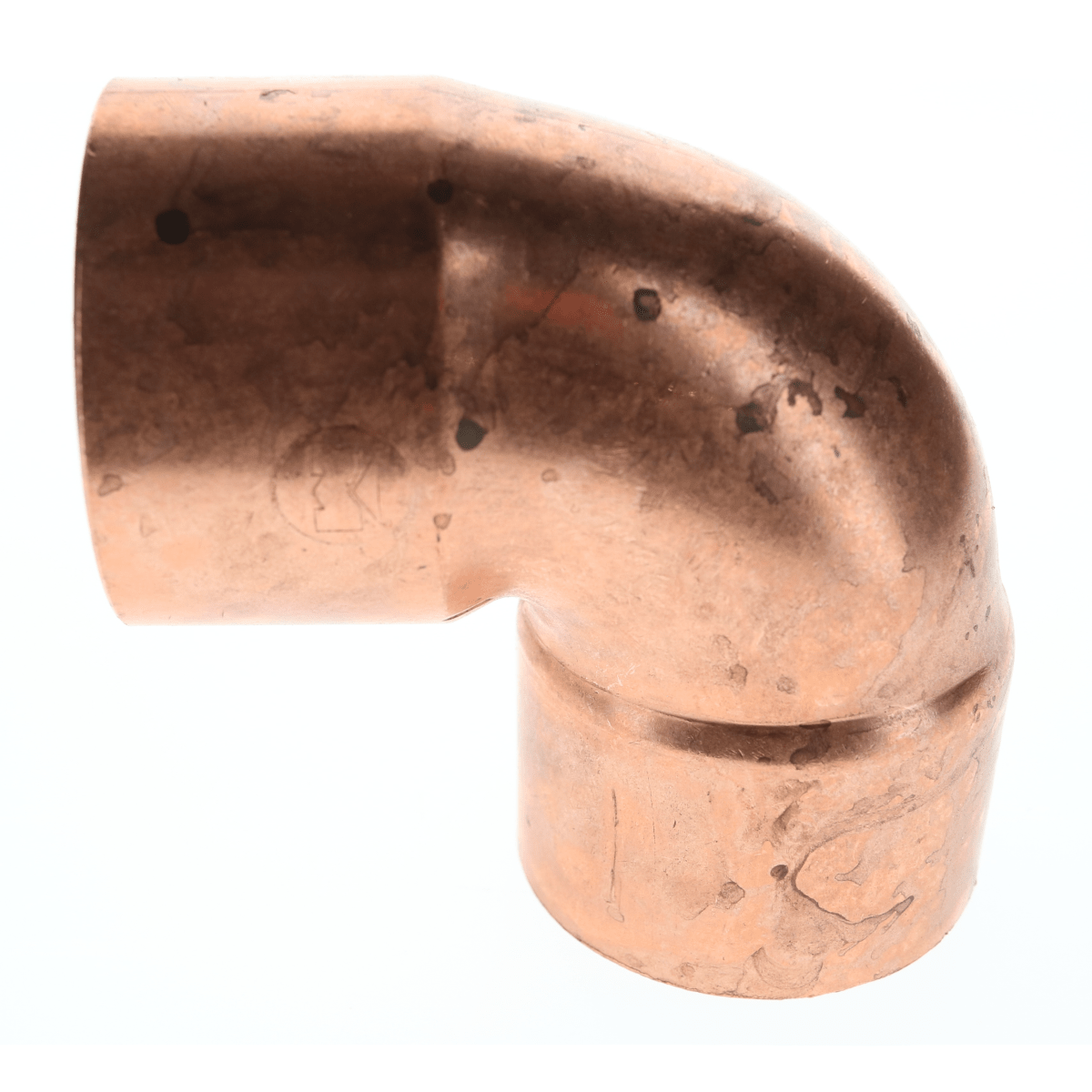

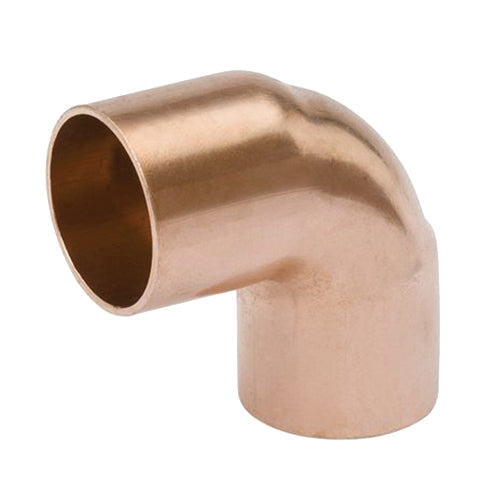

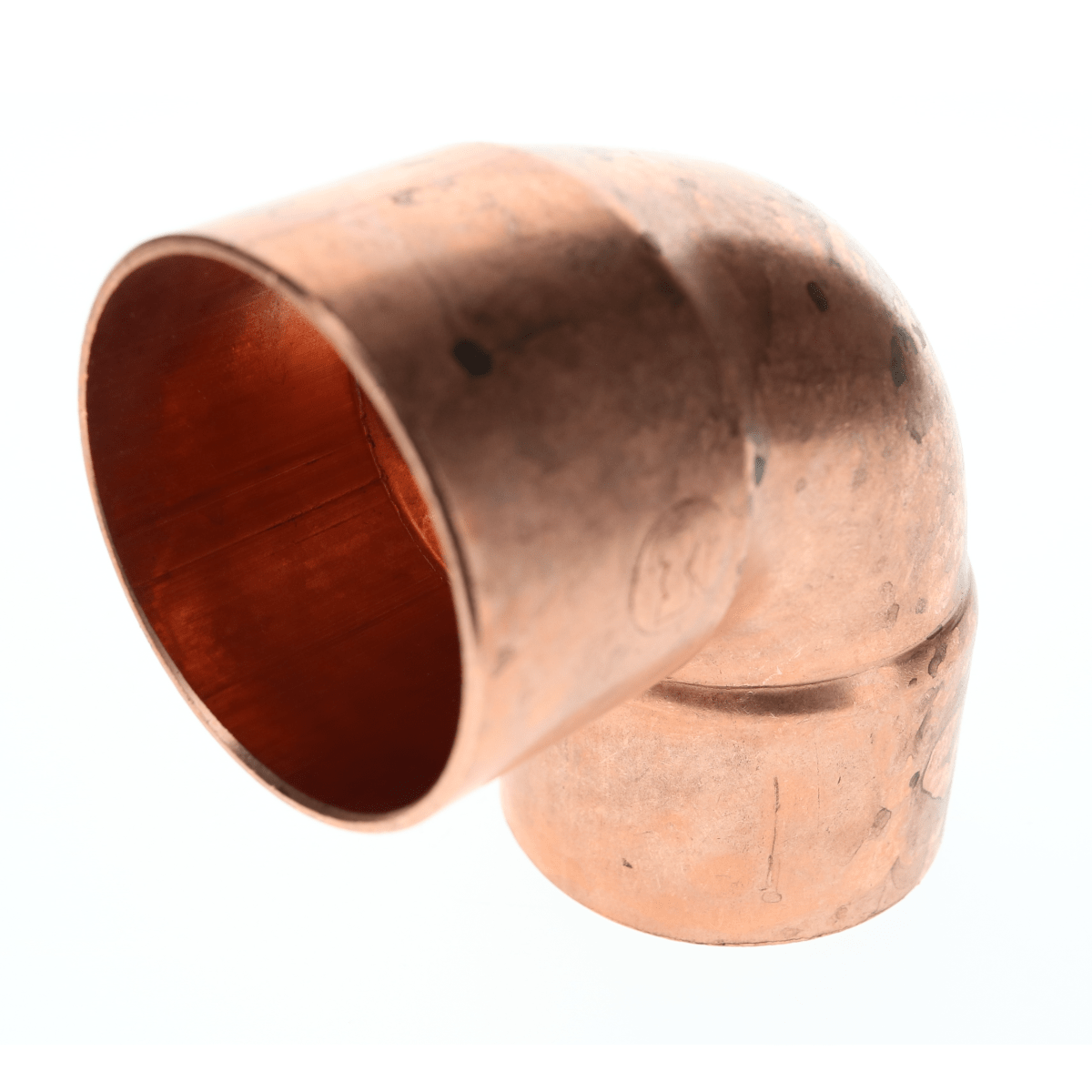

Mueller Streamline W 02087 Copper Sweat 90 Degree Elbow C x C (2-1/2 in / 90 deg)

Product Description

Mueller Streamline W 02087 is a 2-1/2 inch copper sweat 90 degree short-radius elbow with C x C (female solder cup) connections for use in above-ground potable water and pressurized supply systems. The fitting is designed for solder-joint installation to change direction by 90 degrees in copper piping and is constructed of wrought or wrot copper for supply and pressurized applications.

• 2-1/2 in nominal size with C x C female solder cup connections for solder-joint installation
• Short-radius 90 degree elbow constructed of wrot/wrought copper for compact directional change
• Meets multiple standards and certifications including NSF 61G and various ASME specifications; rated for pressure system use

Product Highlights

2-1/2 in short-radius copper sweat 90 degree elbow (C x C) for above-ground potable water and pressurized supply systems

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02087
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer: Mueller Industries
• Manufacturer Part Number: W 02087
• Type: Short radius elbow
• Angle: 90 deg
• Nominal Size: 2-1/2 in
• Connection Type: C x C
• End Type: Female solder cup (C - Cup)
• Material: Wrot copper / wrought copper
• Pressure Rating: 700 psi
• Standards/Certifications: NSF 61G; NSF/ANSI 61 Annex G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; MSS SP104
• Overall Length: 4.56 in
• Overall Height: 4.56 in
• Overall Width: 2.77 in
• Outer Diameter: 2-5/8 in
• Weight: 1.19 lb
• Application: Above-ground potable water supply systems; plumbing and mechanical supply/pressurized systems
• UPC: 685768208754
• Part Number (Alternate): COPF-250-90EL-C
• UOM: EA
