Mueller Streamline W 02086 2 C x C SR 90 Elbow (2 in / 90 deg) WE-500

Product Description

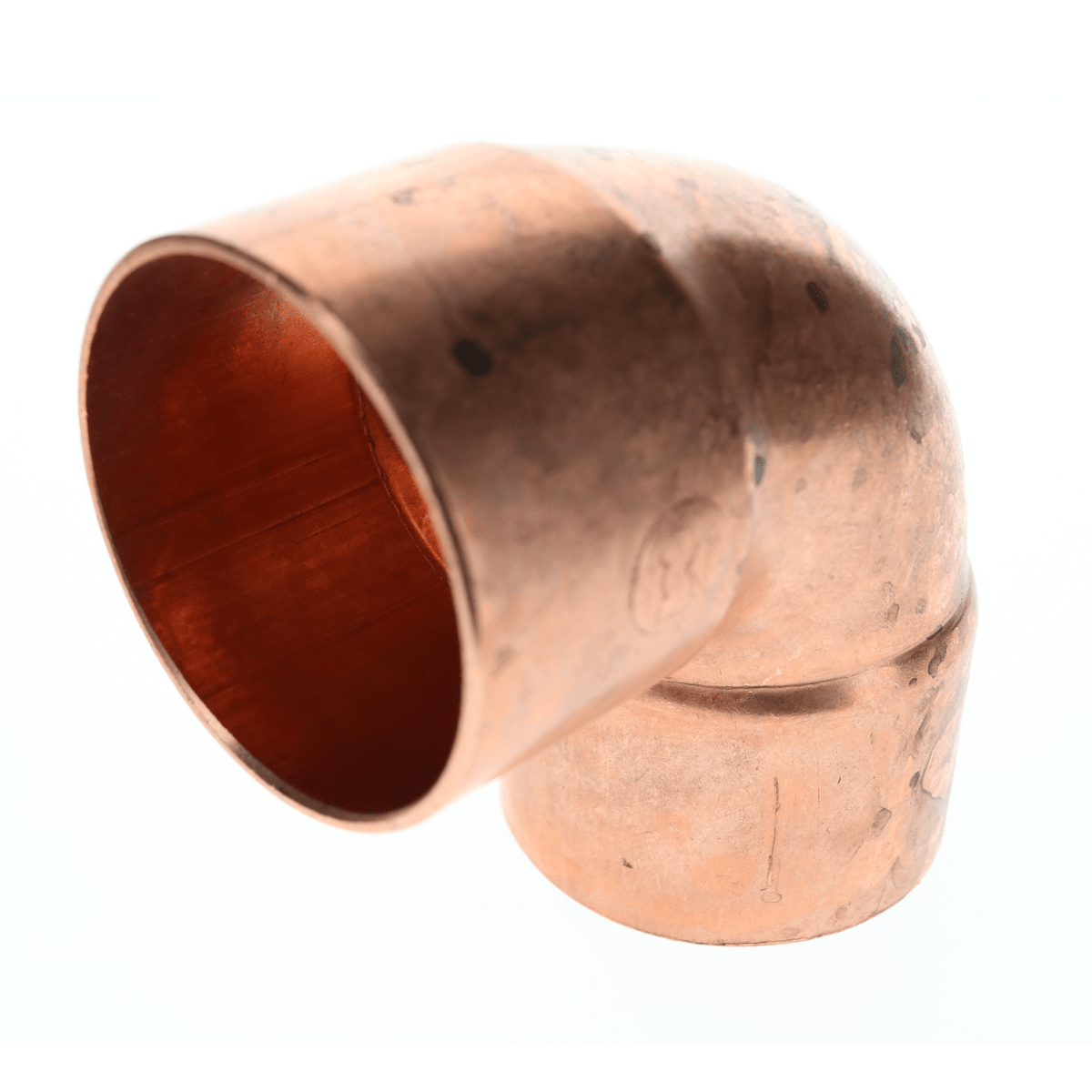

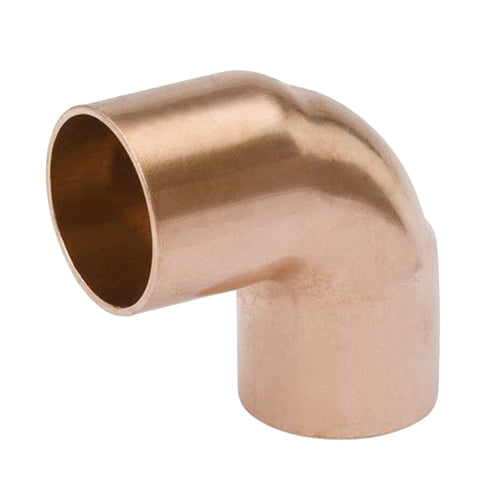

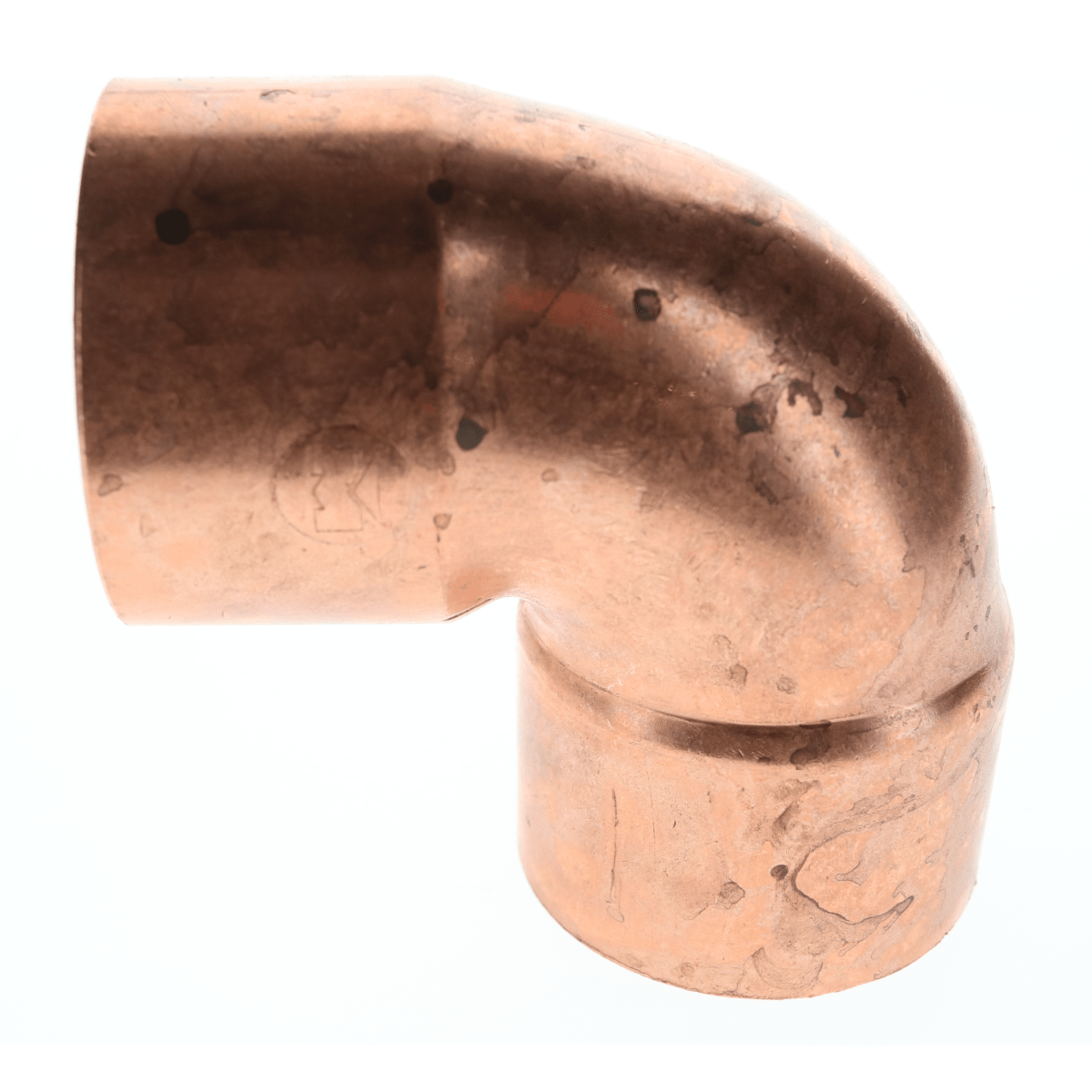

The Mueller Streamline W 02086 is a 90 deg short-radius copper elbow (Model WE-500) with C x C female solder-cup ends for 2 in copper tubing, designed for above-ground potable water supply systems. It has a 2-1/8 in outside diameter, overall length of 3.76 in, and a 700 psi pressure rating, meeting NSF 61G and applicable ASME standards for wrot fittings.

• 2 in nominal (2-1/8 in OD) C x C female solder-cup connections; short-radius 90 deg bend
• Wrot copper construction; overall length 3.76 in; item weight 0.76 lb
• Rated to 700 psi; meets NSF 61G and ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1

Product Highlights

Short-radius 90 deg wrot copper elbow for 2 in solder-joint potable water systems; NSF 61G and ASME compliant.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02086
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer: Mueller Industries
• Manufacturer Part Number: W 02086
• Model: WE-500
• Type: Short radius elbow
• Angle: 90 deg
• Nominal Size: 2 in
• Outer Diameter: 2-1/8 in
• Connection Type: C x C (female solder cup)
• End Style: C x C
• Material: Wrot copper
• Pressure Rating: 700 psi
• Length: 3.76 in
• Overall Height: 3.76 in
• Overall Width: 2.25 in
• Weight: 0.76 lb
• Standards/Certifications: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Application: Above-ground potable water supply systems
• Unit of Measure: EA
