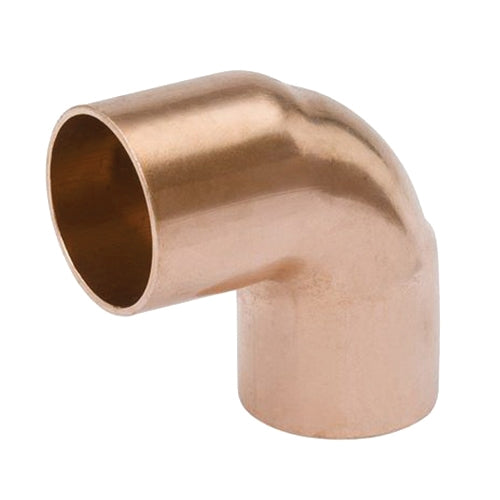

Mueller Streamline W 02085 1-1/2 C x C SR 90 Ell 90 deg

Product Description

Mueller Streamline W 02085 is a 90 deg short-radius solder-joint elbow for 1-1/2 in nominal tubing with C x C female solder cup ends. Constructed of wrought copper (wrought copper or bronze materials noted) and rated to 700 psi, it is intended for above-ground potable water supply systems and complies with NSF 61G and applicable ASME B16-series standards. Typical overall length is 3.13 in and outside diameter 1-5/8 in.

• 90 deg short-radius elbow, C x C female solder cup ends for 1-1/2 in tubing
• Constructed of wrought copper (or bronze as noted); pressure rating 700 psi; overall length 3.13 in; outside diameter 1-5/8 in
• Meets NSF 61G and ASME B16-series standards; for above-ground potable water supply systems

Product Highlights

Short-radius 90 deg copper solder-joint elbow, 1-1/2 in C x C, 700 psi, NSF 61G and ASME B16-series compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02085
• Country of Origin: United States

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 02085
• Item Name: Elbow
• Type: 90 deg Elbow
• Radius Type: Short Radius
• Nominal Size: 1-1/2 in
• Outside Diameter: 1-5/8 in (1.625 in)
• Connection Type: Female solder cup
• End Style: C x C (cup, female solder)
• Pressure Rating: 700 psi
• Material: Wrought copper (or bronze as noted)
• Overall Length: 3.13 in
• Overall Height: 3.13 in
• Overall Width: 1.625 in
• Weight: 0.42 lb
• Standards/Certifications: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Intended Use: Above-ground potable water supply systems
• Pack Quantity (pcs/bag): 10
• Master Pack Quantity (pcs/box): 100
