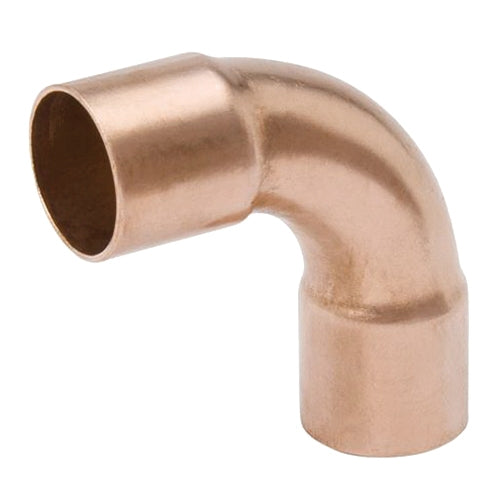

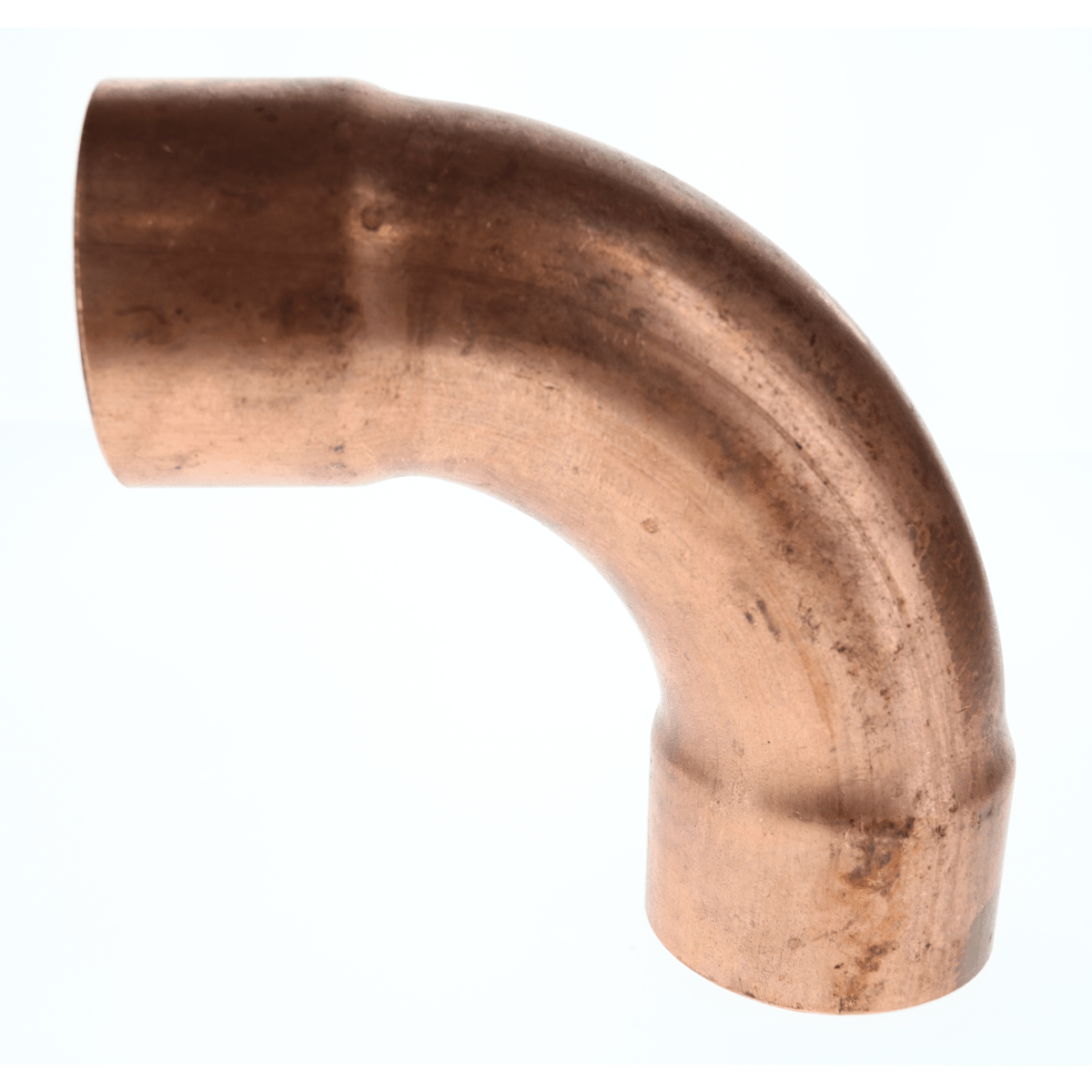

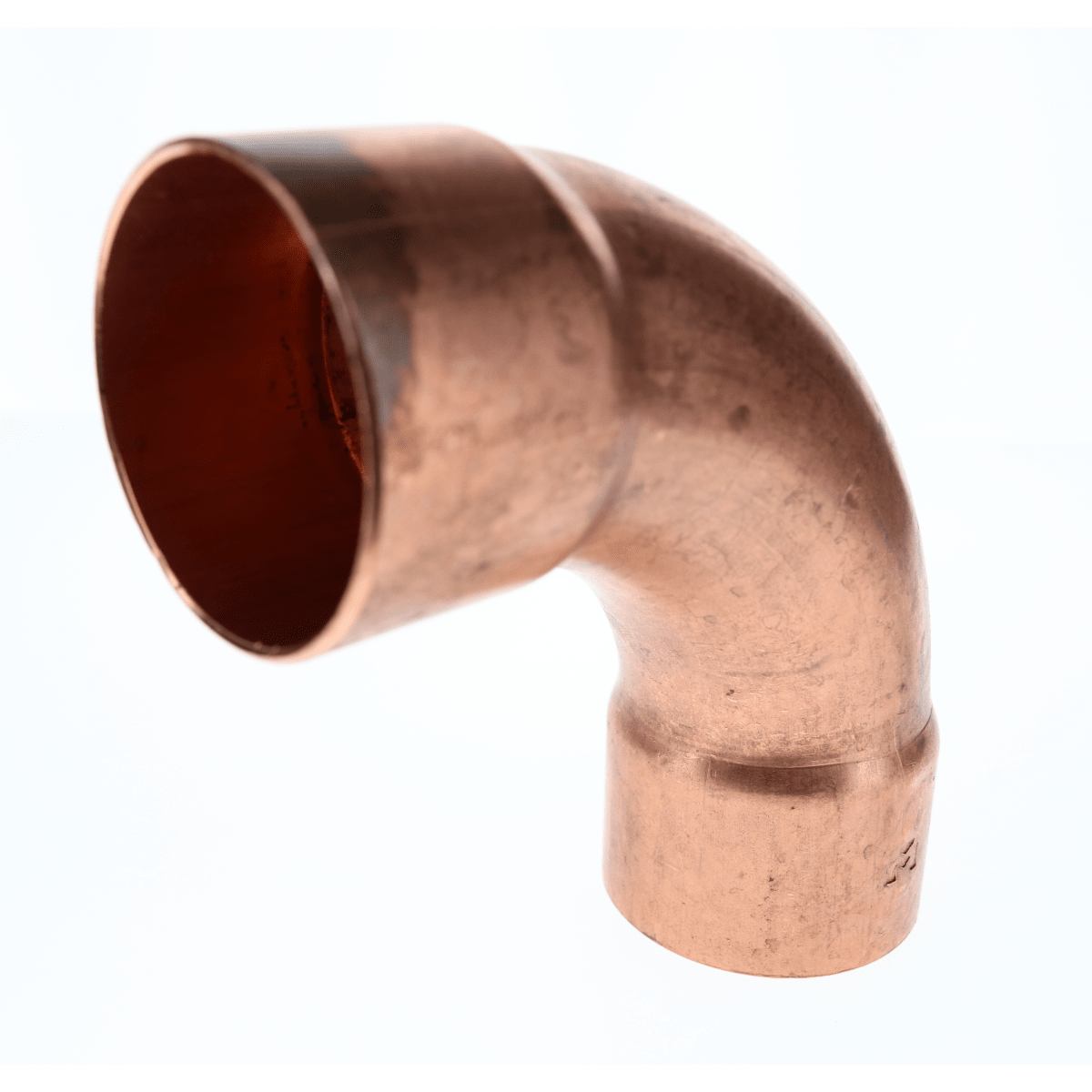

Mueller Streamline W 02072 90° Long Radius Elbow (2 in)

Product Description

Mueller Streamline W 02072 is a 90° long-radius copper elbow for solder-joint (C x C) connections on 2 in nominal copper piping. The wrot copper fitting provides a smooth directional change for pressurized, above-ground potable water and supply systems, with a 700 psi pressure rating. The fitting meets multiple ASME specifications and NSF 61G and has an overall length of 5.29 in and 2-1/8 in connection OD.

• Long-radius 90° elbow with C x C (female solder cup) ends for 2 in nominal copper pipe (2-1/8 in OD).
• Constructed of wrot copper and rated to 700 psi for above-ground potable water and pressurized systems.
• Meets NSF 61G and ASME standards including B16.15, B16.18, B16.22, B16.24, B16.50, and B1.20.1.

Product Highlights

2 in long-radius 90° wrot copper solder-joint elbow; 2-1/8 in OD; 700 psi; NSF 61G and ASME compliant; overall length 5.29 in.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02072
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 02072
• Type: Long Radius Elbow
• Angle: 90 deg
• Nominal Size: 2 in
• Outside Diameter: 2-1/8 in
• Connection Type: Solder-joint (C x C)
• End Style: C - Cup (female solder)
• Material: Wrot copper
• Pressure Rating: 700 psi
• Standards/Certifications: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Overall Length: 5.29 in
• Overall Height: 5.29 in
• Overall Width: 2.25 in
• Weight: 1.23 lb
• Form: Wrot
• Applications: Above-ground potable water and pressurized plumbing supply systems
• UPC: 685768208631
