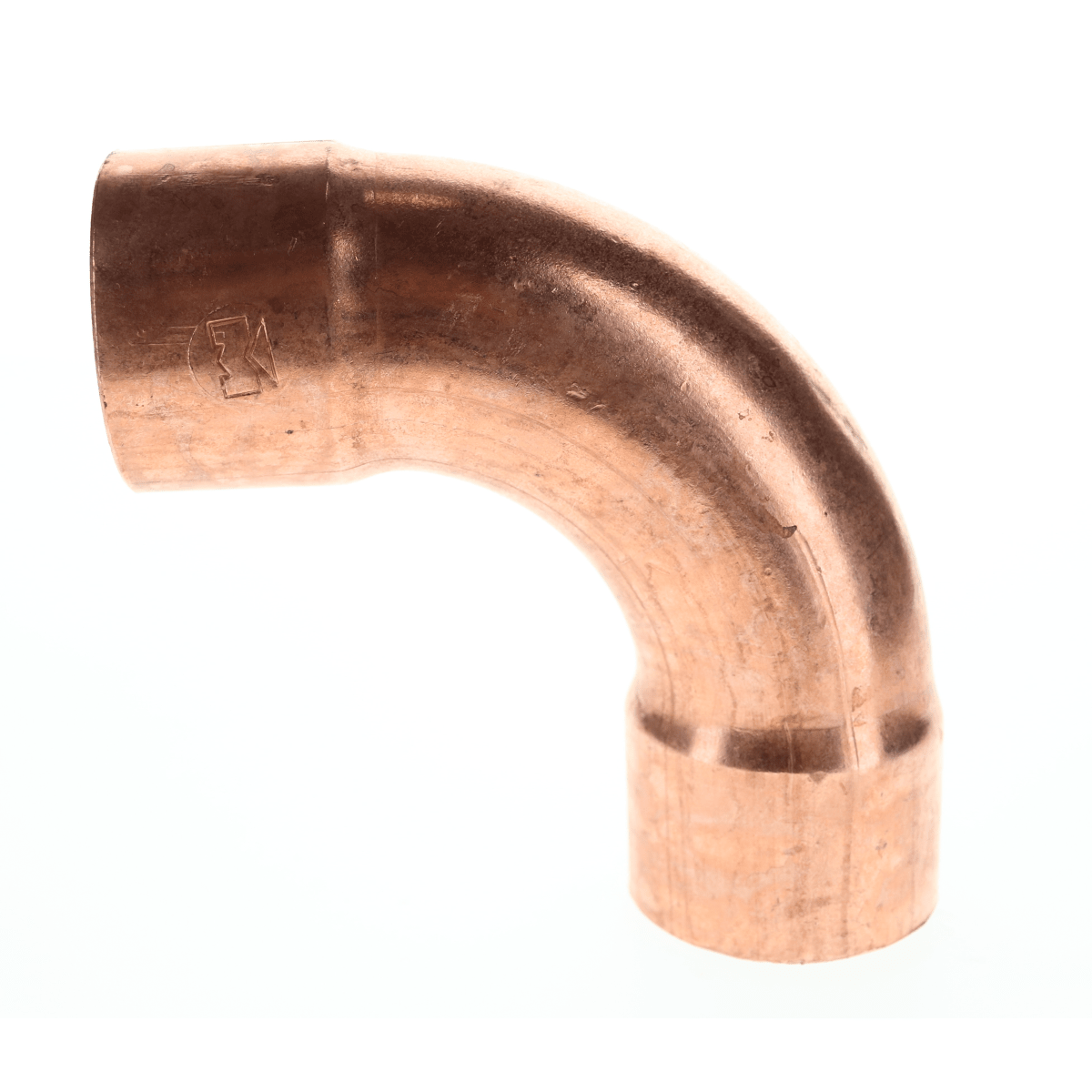

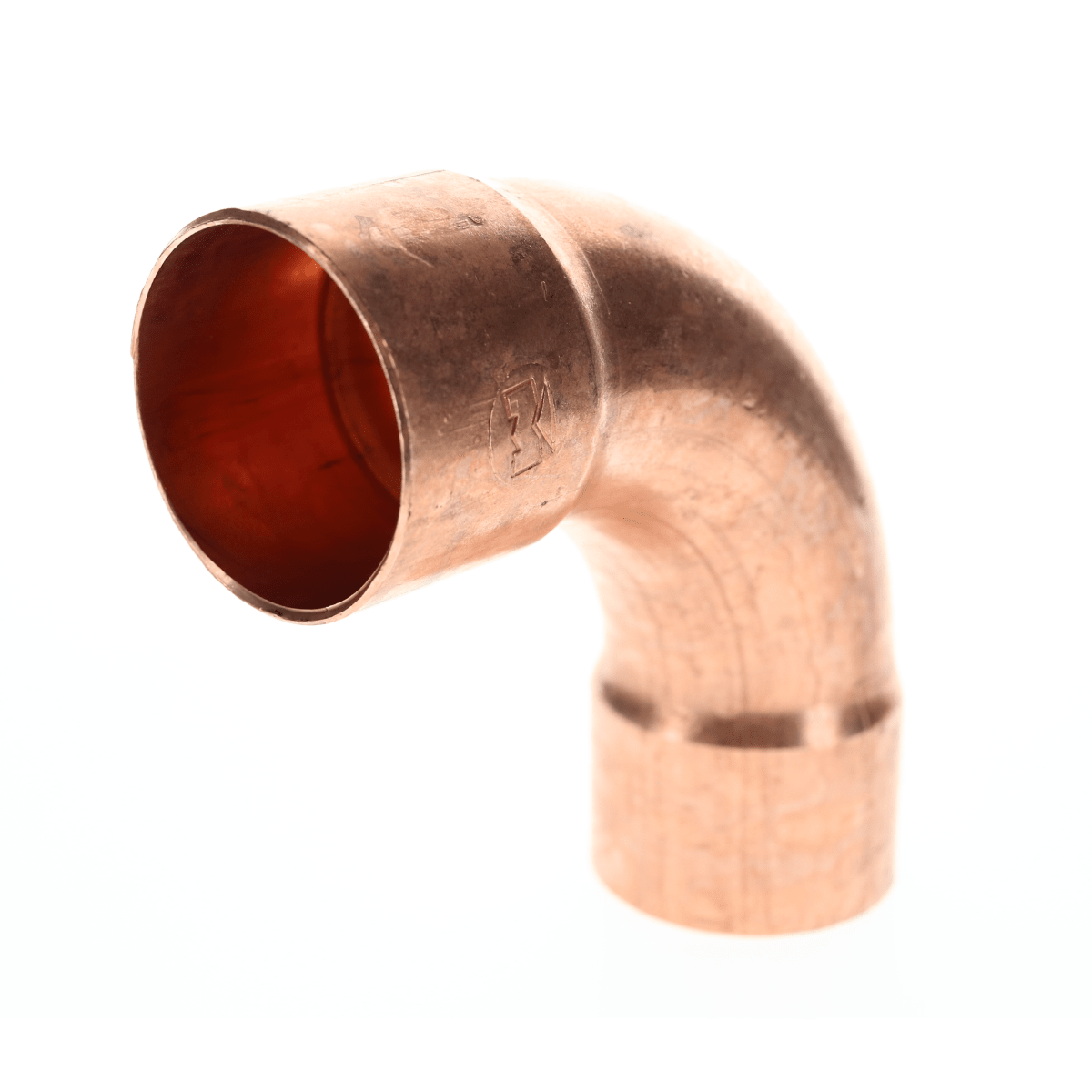

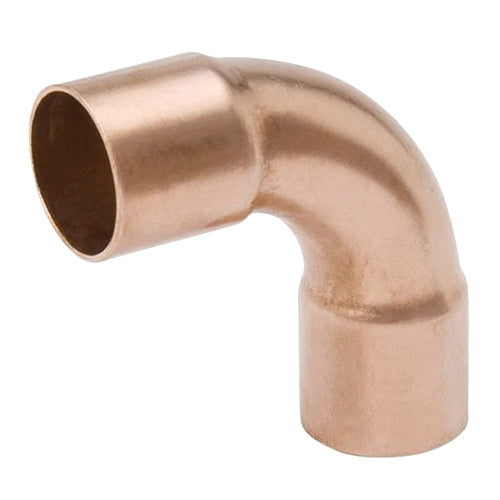

Mueller Streamline W 02063 Copper Long Radius 90 Elbow (1-1/2 Inch / 90 Degree) WE-500L

Product Description

Mueller Streamline W 02063 is a 1-1/2 inch wrot copper long radius 90 Degree elbow (model WE-500L) with cup x cup female soldered ends for above-ground potable water and HVACR supply systems. Constructed from UNS C12200 copper to ASTM B75/B88/B280, the fitting has a 1-5/8 inch outside diameter and is rated to 700 PSI and 250 Deg F. It functions as a solder-joint directional change in copper piping.

• Long-radius 90 Degree elbow, nominal 1-1/2 in with 1-5/8 in outer diameter; model WE-500L.
• Cup x cup (female soldered) sweat connections for solder-joint installation.
• Wrot UNS C12200 copper; meets ASTM B75/B88/B280, ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1, MSS SP104 and NSF 61G; 700 PSI, 250 Deg F.

Product Highlights

1-1/2 in long-radius 90 Degree copper sweat elbow (C x C), 1-5/8 in OD, 700 PSI / 250 Deg F, model WE-500L.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02063
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 02063
• Catalog Number: W 02063
• Model / Series: WE-500L
• Type: Long-radius 90° elbow
• Angle: 90 Degree
• Nominal Size: 1-1/2 Inch
• Outer Diameter: 1-5/8 Inch
• End Connection: Female Soldered x Female Soldered
• End Style: C x C (Cup x Cup)
• Connection Type: Copper solder-joint (sweat)
• Material: UNS C12200 copper (wrot)
• Material Specification: ASTM B75 / B88 / B280
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable water supply systems; HVACR
• Standards / Certifications: UL (Canada and US); ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1; MSS SP104; NSF 61G
• Overall Length: 4.15 in
• Overall Height: 4.15 in
• Overall Width: 1.74 in
• Weight: 0.60 lb
• UPC: 685768208570
