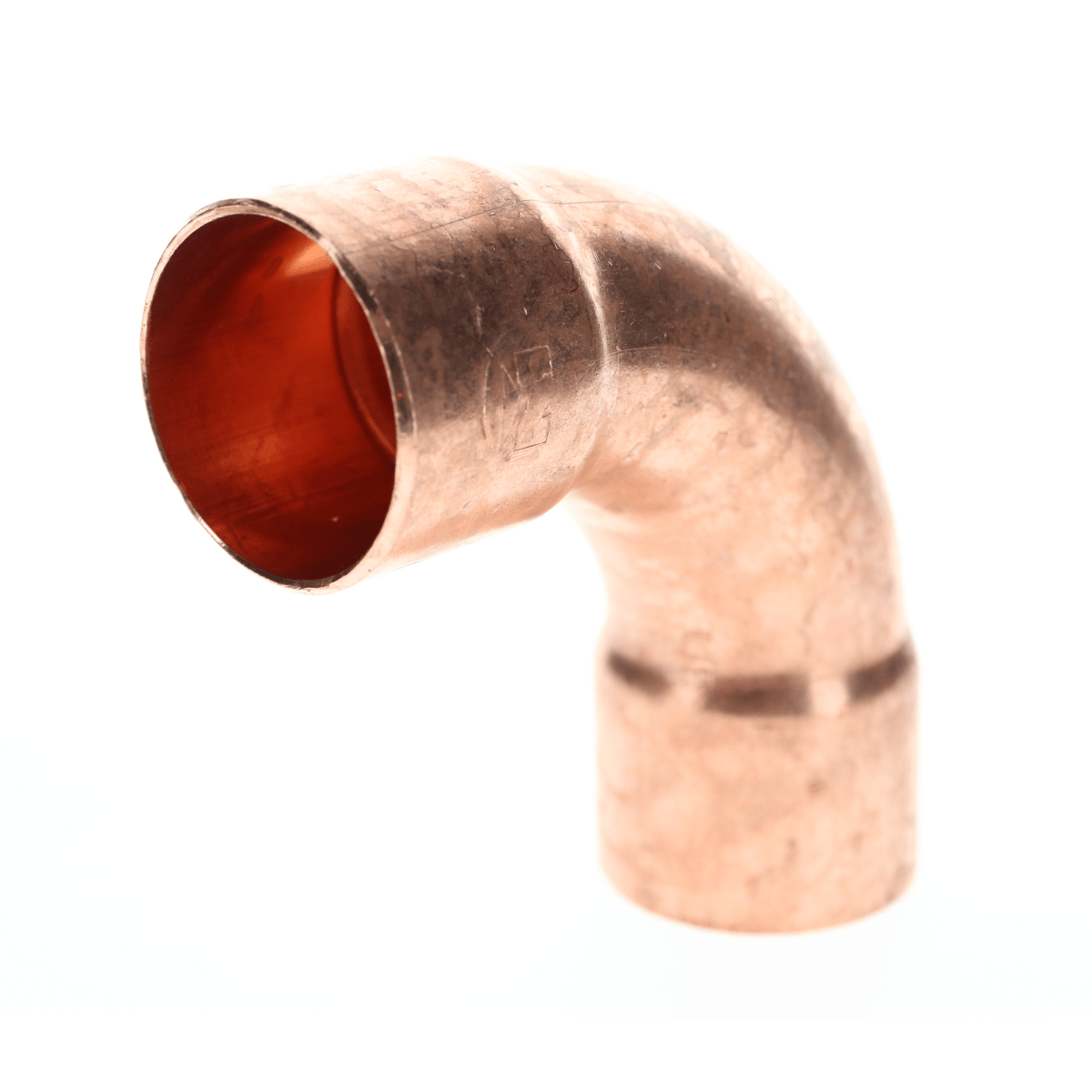

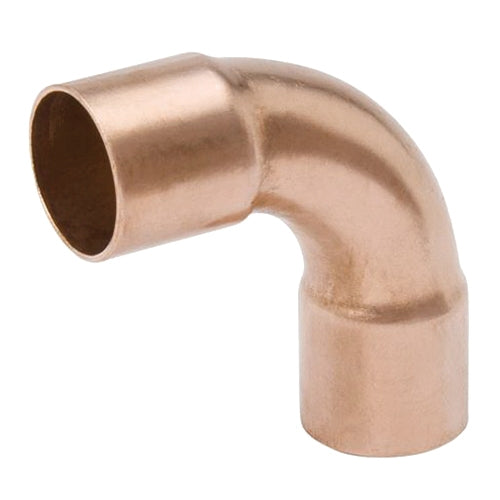

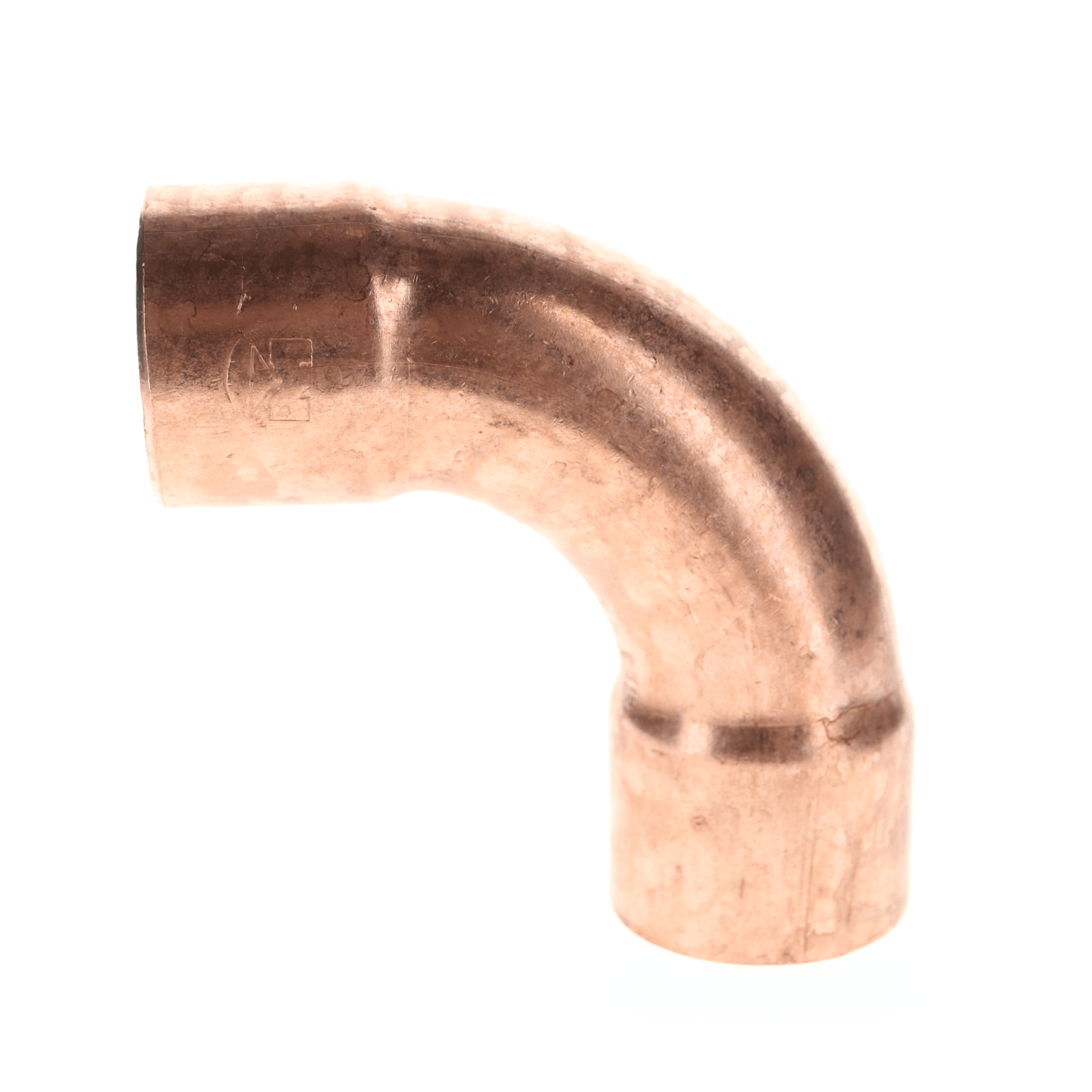

Mueller Streamline W 02055 Copper Elbow 90 Long Radius 1-3/8 inches OD (C x C)

Product Description

Mueller Streamline W 02055 is a 90° long radius copper elbow with a 1-3/8-inch outside diameter and cup-by-cup (C x C) solder-joint connections. Constructed of wrot copper for solder-joint pressure applications, the fitting is intended for above-ground potable water and pressurized copper piping systems. Selected sizes are third-party verified for 700 psi at 250 deg F and conform to ASME and MSS standards. Overall length is approximately 3.6 inches and weight is about 0.42–0.44 lb.

• 90° long radius elbow with C x C (cup x cup) solder-joint connections and 1-3/8 in outside diameter
• Wrot copper construction (UNS C12200) suitable for solder-joint pressure applications
• Selected sizes rated 700 psi at 250 deg F; conforms to ASME B16.x series, MSS SP104, NSF 61-G and UL recognized

Product Highlights

Long-radius 90° copper elbow, 1-3/8 in OD (nominal 1-1/4 in), wrot copper solder-joint fitting meeting ASME and NSF standards

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02055
• Country of Origin: United States

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 02055
• Model: WE-500L
• Type: Elbow - Long Radius
• Angle: 90 deg
• Connection Type: C x C (cup x cup, female solder cup)
• Connection Size (Outside Diameter): 1-3/8 in
• Nominal Size: 1-1/4 in
• Material: Wrot copper
• UNS: C12200
• Form: Wrot (wrought)
• Application: Above-ground potable water and pressurized copper piping systems
• Pressure Rating: 700 psi
• Temperature Rating: 250 deg F
• Standards/Certifications: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; ASTM B75; MSS SP104; NSF 61-G; UL Recognized
• Overall Length: 3.60 in
• Overall Height: 3.60 in
• Overall Width: 1.50 in
• Item Weight: 0.42-0.44 lb
• Unit of Measure: EA
• Alternative Part Numbers: EL138; COPF-125-LT90-C; MUE W 02055; WE-500L; MBCWE500L-1-3/8
