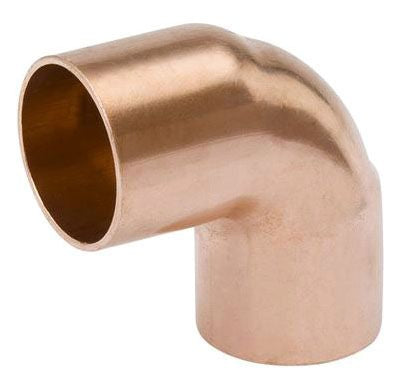

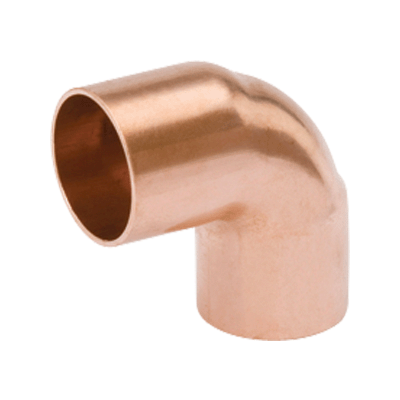

Mueller Streamline W 02017 90° Short Radius Elbow (3/8 in x 3/8 in) WE-500

Product Description

The Mueller Streamline W 02017 is a 90-degree short radius copper elbow designed for solder-joint connections. It provides 3/8 inch nominal flow with 1/2 inch outside diameter female soldered ends and is manufactured seamless from UNS C12200 copper per ASTM B75. The fitting is rated to 700 PSI at 250°F and meets applicable standards for use in DWV, HVAC/R, air conditioning, refrigeration, and piping systems.

• Short radius 90° elbow with 3/8 in nominal (1/2 in OD) female soldered connections
• UNS C12200 copper, wrot seamless construction; manufactured to ASTM B75 and ASME B16.22; meets NSF 61G
• Pressure rated 700 PSI at 250°F; lead-free; intended for DWV, HVAC/R, air conditioning, refrigeration and piping systems

Product Highlights

Short radius 90° solder-joint elbow; 3/8 in nominal with 1/2 in OD connections; 700 PSI at 250°F; complies with ASME B16.22 and NSF 61G

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02017
• Country of Origin: USA

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number (MPN): W 02017
• Alternate Part Number: WE-500
• UPC: 685768208327
• Product Type: Short radius 90° elbow
• Material: Copper (UNS C12200)
• Material Specification: ASTM B75
• Process: Wrot, seamless
• Connection Type: Female solder-joint
• End Connection: Female soldered x Female soldered
• Connection Sizes: 3/8 in x 3/8 in (1/2 in OD x 1/2 in OD)
• Nominal Size: 3/8 in
• Inner Diameter: 0.375 in
• Outside Diameter: 0.5 in
• Angle: 90 degree
• Pressure Rating: 700 PSI at 250°F
• Temperature Rating: 250°F
• Applicable Standards: ASME B16.22; ASTM B75; (other listed standards may apply to various fittings — retained for reference)
• Certifications: NSF 61G; UL
• Lead-free: Yes
• Applications: DWV; HVAC/R; Air conditioning; Refrigeration; Piping systems
• Item Weight: 0.03 lbs each
• Series-Brand: Streamline
• Country of Origin: Made in USA
