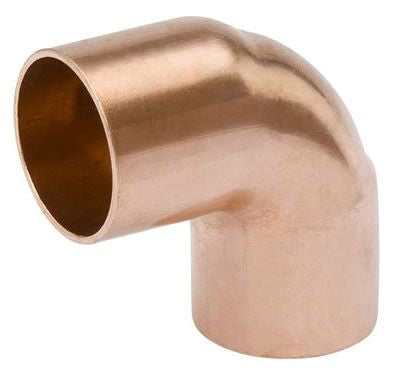

Mueller Streamline W 02003 Elbow Fitting (1/8 Inch x 1/8 Inch, 90 Degree)

Product Description

Mueller Streamline W 02003 is a 90 degree straight, short-radius copper elbow fitting with 1/8 inch solder-joint connections. It is made from UNS C12200 copper per ASTM B75/B88/B280 and is rated for 700 PSI and 250 Deg F for potable water supply systems and HVACR. The fitting features female soldered x female soldered ends, a 1/4 inch outer diameter, lead-free construction, and compliance with UL, ASME, MSS SPI04, and NSF 61G.

• 90 degree straight short-radius elbow with 1/8 inch connections; end connection: female soldered x female soldered
• Material: UNS C12200 copper (ASTM B75/B88/B280); outer diameter 1/4 inch; lead-free construction
• Pressure rating 700 PSI; temperature rating 250 Deg F; applicable standards include UL (US and Canada), ASME B16.x series, MSS SPI04, NSF 61G

Product Highlights

Lead-free copper solder-joint 90° elbow for potable water and HVACR, 1/8 inch connections, 700 PSI and 250 Deg F rating

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02003

Technical Specifications

• Brand: Mueller Streamline
• MPN: W 02003
• Manufacturer Part Number: W02003
• Manufacturer: Mueller Streamline
• Catalog Number: W 02003
• Product Name: Elbow Fitting
• Type: Straight, Short Radius
• Angle: 90 Degree
• Connection Size A: 1/8 Inch
• Connection Size B: 1/8 Inch
• End Connection: Female Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable Water Supply System, HVACR
• Applicable Standards: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Features: Lead-Free
• Outer Diameter: 1/4 Inch
• Category: Plumbing & Bath / Kitchen Fixtures
• UNSPSC Code: 40183101
