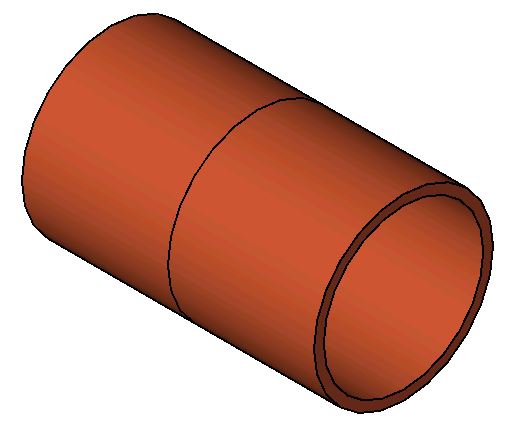

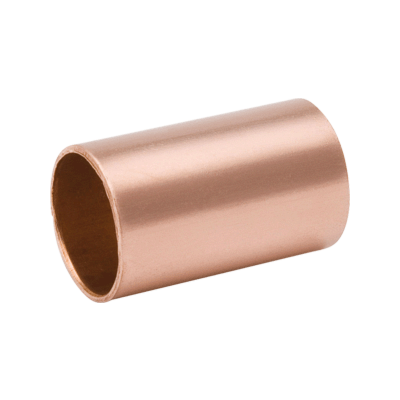

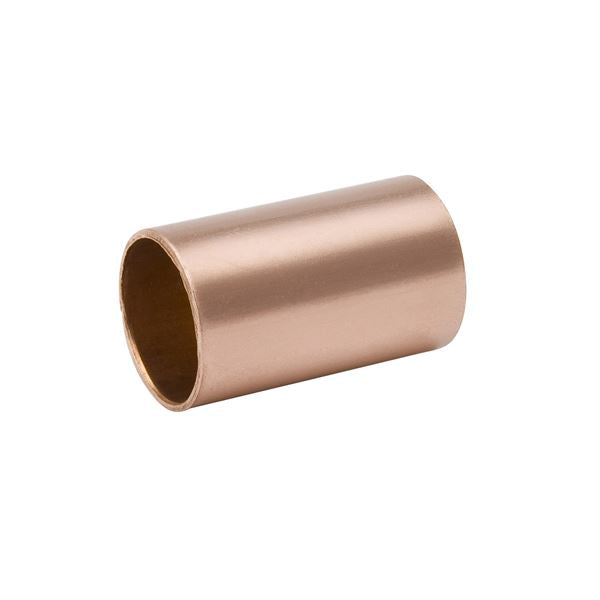

Mueller Streamline W 01905 3/4 C x C No-Stop Coupling (3/4 in)

Product Description

The Mueller Streamline W 01905 is a 3/4 in C x C no-stop coupling designed for above-ground potable water supply systems. Constructed of wrot copper or cast bronze, it provides solder-joint cup connections for 3/4 in copper tubing, is rated to 700 psi, and has a 7/8 in outside diameter. The fitting is designated model WC-400NS and conforms to applicable ASME standards and NSF 61G.

• Constructed of wrot copper or cast bronze for solder-joint (cup) connections to 3/4 in copper tubing
• Rated to 700 psi with a 7/8 in outside diameter; model WC-400NS less-stop coupling
• Meets ASME standards (B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1) and NSF 61G for potable water systems

Product Highlights

3/4 in cup x cup solder-joint coupling, 700 psi rating, ASME and NSF 61G compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 01905
• Country of Origin: Domestic (USA)

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 01905
• Model: WC-400NS
• Product Name: 3/4 C x C No-Stop Coupling
• Nominal Size: 3/4 in
• Connection Type: Cup x Cup (C x C) solder-joint
• End Type: Cup (female solder)
• Connection Sizes: 3/4 in x 3/4 in (7/8 in OD x 7/8 in OD)
• Outside Diameter (OD): 7/8 in
• Material: Wrot copper or cast bronze
• Pressure Rating: 700 psi
• Standards/Approvals: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; B1.20.1; NSF 61G
• Intended Application: Above-ground potable water supply systems / pressure
• Overall Length: 1.60 in
• Overall Width: 0.96 in
• Overall Height: 0.96 in
• Weight: 0.06 lb
• UPC: 685768208204
• Country of Manufacture: Domestic
