Mueller Streamline W 01647cb 1 in Copper 90 Deg Sweat Elbow

Product Description

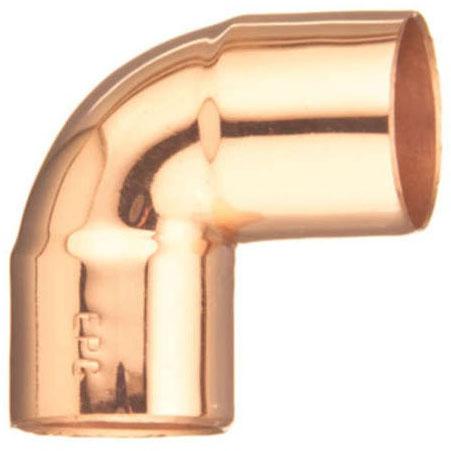

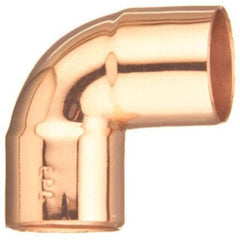

The MUELLER STREAMLINE w 01647cb is a wrot copper 90-degree sweat elbow designed for medical gas piping systems. Manufactured from C12200 phosphorous deoxidized copper, it features cup-by-cup connections on both sides, accepting 1-inch copper tube with a 1.125-inch outer diameter. The fitting is precleaned and bagged to meet the stringent cleanliness requirements of medical gas installations. Rated for a maximum operating pressure of 300 psi and temperatures from -20 degrees F to 250 degrees F, this elbow is built for demanding, code-sensitive environments. A dimple center stop aids consistent insertion depth during assembly. Licensed HVAC, plumbing, and medical gas technicians handle field installation of this fitting.

This elbow is rated for medical gas applications and is suitable for use with gases in cleaned and bagged piping systems. The polished finish and precleaned condition make it appropriate for oxygen, nitrogen, nitrous oxide, and other medical gas distribution lines where contamination control is critical. With an overall length of approximately 2.219 inches, it fits standard 1-inch copper tube runs requiring a 90-degree change of direction.

Key Features

• 90-degree elbow with cup x cup sweat connections for standard soldered assembly
• Wrot copper construction, material grade C12200, for strength and corrosion resistance
• Precleaned and bagged for medical gas service per industry requirements
• Dimple center stop ensures consistent tube insertion depth
• Rated to 300 psi maximum operating pressure
• Compliant with NSF 61G and multiple ASME standards

Compatibility

Designed for use in medical gas piping systems utilizing 1-inch copper tube with a 1.125-inch outer diameter. Both fitting sides accept cup-style connections compatible with standard sweat-joint assembly methods.

Installation Notes

Installation must be performed by a licensed medical gas installer or qualified journeyman plumber in accordance with NFPA 99 and applicable local codes. Shut off and purge the gas supply before cutting or fitting any existing piping. Use only compatible silver-bearing or approved brazing alloys as required by medical gas standards — standard tin-lead solders are not permitted in medical gas systems. Inspect the fitting for packaging integrity before use, as contaminated fittings must not be installed.

Technical Specifications

• Fitting Shape: 90 Degrees Elbow
• Connection Type: Cup x Cup (Sweat)
• Copper Tube Size: 1 inch
• Tube Outer Diameter: 1.125 inches
• Overall Length: 2.219 inches
• Maximum Operating Pressure: 300 psi
• Maximum Operating Temperature: 250 degrees F
• Minimum Operating Temperature: -20 degrees F
• Fitting Material: Wrot Copper
• Material Grade: C12200
• Finish: Polished
• Application: Medical Gas
• For Media Type: Gases
• Precleaned: Cleaned and Bagged
• Center Stop: Dimple Center Stop
• Standards: ASME B1.20.1, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, NSF 61G
• Country of Origin: United States

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: w 01647cb
