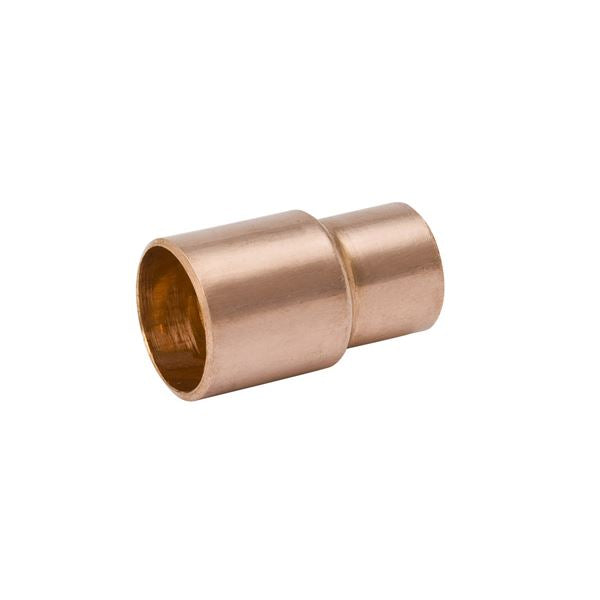

Mueller Streamline W 01355 Reducing Bushing 1-5/8 x 5/8 OD (1-1/2 x 1/2)

Product Description

Mueller Streamline W 01355 is a reducing bushing that adapts a 1-5/8 inch outside diameter connection to a 5/8 inch outside diameter and provides internal plumbing adaptation from 1-1/2 inch ID to 1/2 inch ID. The solder-joint fitting (FTG x C) is constructed of wrot copper (cast bronze where applicable), meets applicable ASME standards, and is intended for above-ground potable water supply applications. Overall length is 2.40 inches; weight 0.22 lb.

• Adapts 1-5/8 in OD to 5/8 in OD with internal 1-1/2 in ID to 1/2 in ID
• Solder-joint end types: FTG (male solder) to C (cup female solder); material: wrot copper (cast bronze where applicable)
• Conforms to ASME standards; overall length 2.40 in, overall height/width 1.63 in, weight 0.22 lb

Product Highlights

Solder-joint reducing bushing for above-ground potable water systems

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 01355

Technical Specifications

• Manufacturer Part Number: W 01355
• Brand: Mueller Streamline
• Product Type: Reducing bushing / fitting reducer (FTG x C)
• Material: Wrot copper (cast bronze where applicable)
• End Type: FTG (male solder) to C (cup female solder)
• Inlet Outside Diameter: 1-5/8 in
• Outlet Outside Diameter: 5/8 in
• Inlet Inside Diameter: 1-1/2 in
• Outlet Inside Diameter: 1/2 in
• End Size Inlet: 1 1/2 in
• End Size Outlet: 1/2 in
• Overall Length: 2.40 in
• Overall Height: 1.63 in
• Overall Width: 1.63 in
• Weight: 0.22 lb
• Style: WC-403
• Standards: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Operating Temperature: Refer to CDA-Copper-Fitting-Pressure-Temp-Ratings
• Operating Pressure: Refer to CDA-Copper-Fitting-Pressure-Temp-Ratings
• Application: Above-ground potable water supply systems
• Unit of Measure: ea
• UPC: 685768207320
