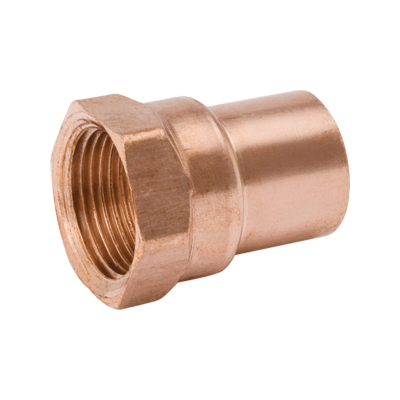

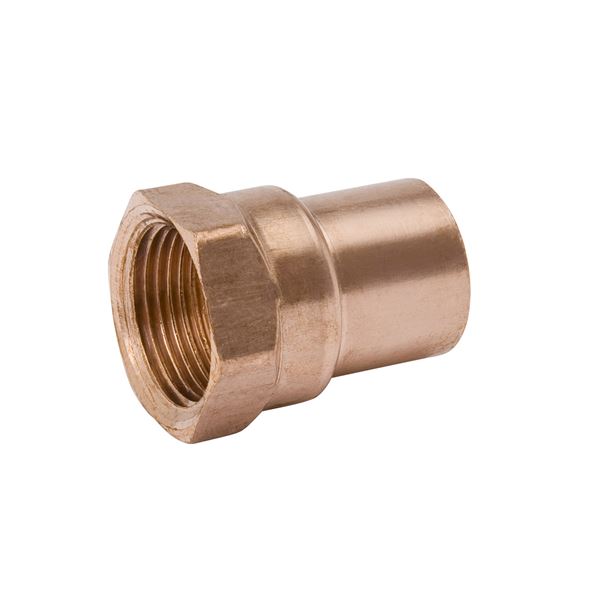

Mueller Streamline W 01247 Adapter Female C x FPT 3/4 x 1/2 (WC-402)

Product Description

Mueller Streamline W 01247 is a wrot copper female adapter (C x FPT) that provides a 3/4 inch cup (solder) connection to a 1/2 inch female pipe tapered thread for above-ground potable water supply systems. The reducing adapter is intended for plumbing and mechanical applications and meets NSF 61G and multiple ASME/ASTM standards for pressure fittings.

• Constructed of high-grade wrot copper for solder-joint connection (3/4 inch cup end) to 1/2 inch FPT
• Meets NSF 61G and applicable ASME/ASTM standards (including ASME B16.22, ASME B1.20.1, ASTM B16 series where specified)
• Compact reducing adapter with overall length 1.36 in and overall height/width 1.16 in; nominal OD 7/8 in x 1/2 in

Product Highlights

3/4 in cup to 1/2 in female pipe thread reducing adapter in wrot copper, model WC-402, compliant with NSF 61G and ASME/ASTM standards

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 01247

Technical Specifications

• Brand: Mueller Streamline
• MPN: W 01247
• Alternate model: WC-402
• Model: WC-402
• Product name: Adapter Female, C x FPT
• Description: Reducing adapter, 3/4 in cup (female solder) x 1/2 in FPT
• Material: Wrot copper
• Connection type: C x FPT (cup solder to female pipe tapered thread)
• Connection sizes: 3/4" x 1/2"
• Outer diameter: 7/8" x 1/2"
• End type 1: C - Cup (female solder)
• End size 1: 3/4 in
• End type 2: FPT - Female pipe tapered thread (NPT)
• End size 2: 1/2 in
• Nominal size: 3/4 x 1/2 inch
• Form: Wrot
• Series: Streamline
• For use with: Above-ground potable water supply systems
• Application: Plumbing and mechanical applications; copper pressure fittings for plumbing, HVACR, and refrigeration systems
• Standards: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; ASTM B16.15/B16.18/B16.22/B16.24/B16.50; MSS SP104 where specified
• NSF Certification: Meets NSF/ANSI 61 Annex G
• Overall length: 1.36 in
• Overall height: 1.16 in
• Overall width: 1.16 in
• Weight: 0.109-0.11 lb
• UPC: 685768206934
• Item weight: 0.11 lb per EA
• UOM: EA
