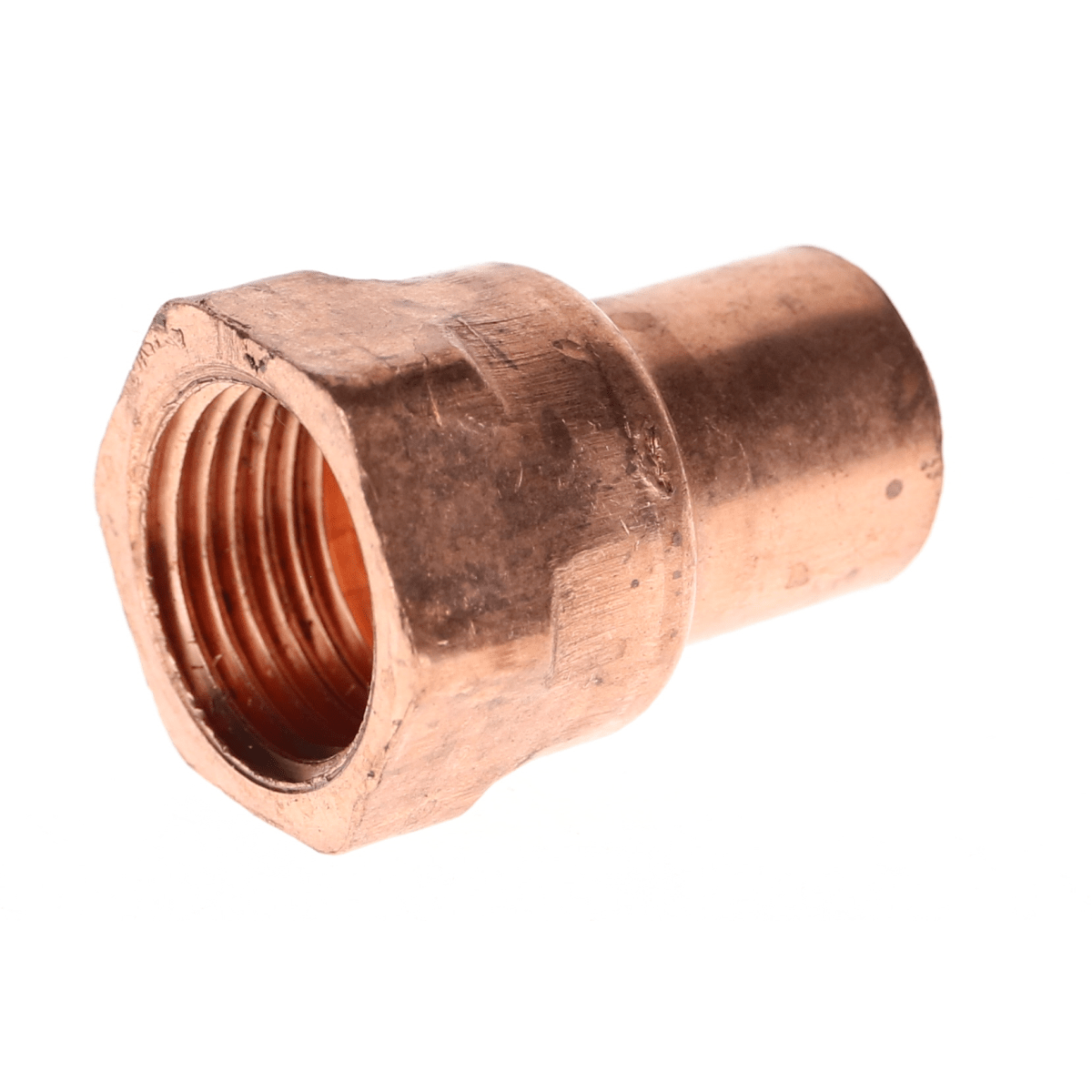

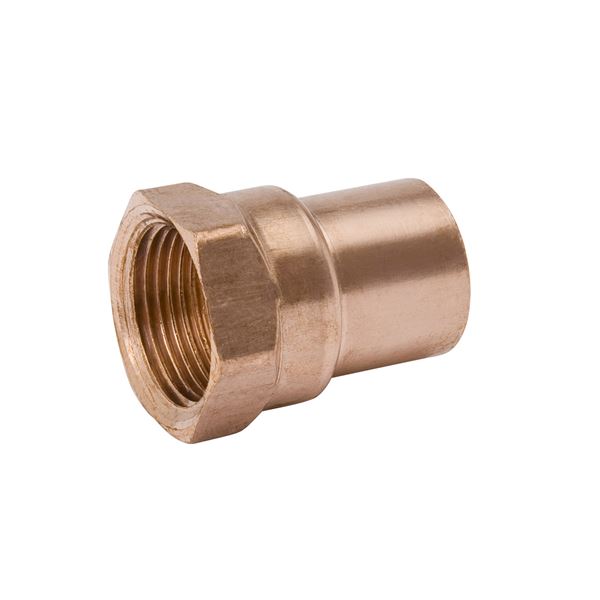

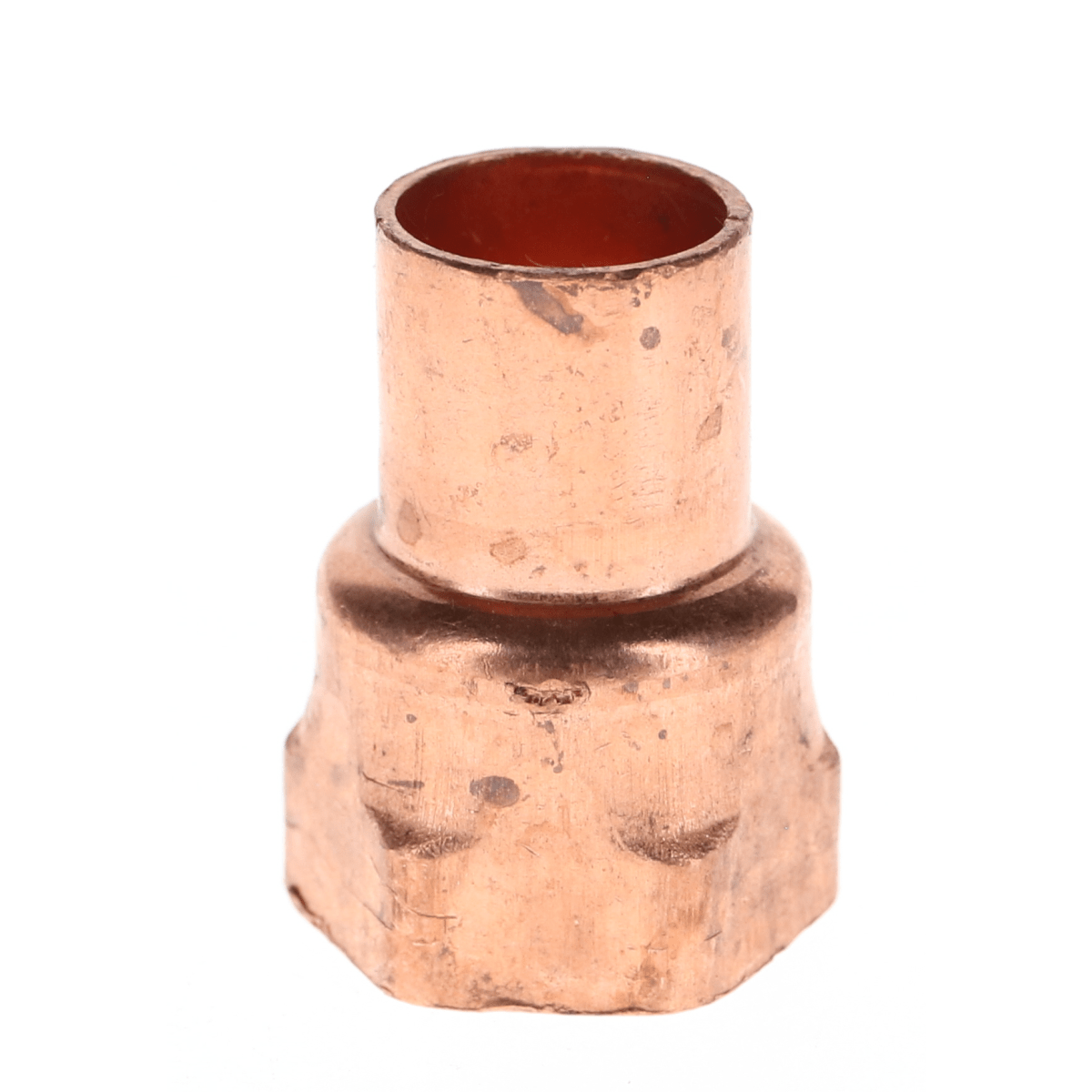

Mueller Streamline W 01246 3/4 C x FNPT Female Adapter (3/4 in)

Product Description

Mueller Streamline W 01246 is a 3/4 in female adapter (C x FNPT) constructed of wrot copper for above-ground potable water supply systems. The solder-joint cup mates to a 3/4 in female pipe tapered thread (NPT) and is rated to 700 psi. Overall dimensions include 7/8 in outside diameter and 1.61 in length. The fitting meets applicable ASME standards and NSF 61G.

• Material: wrot copper construction; solder-joint cup to female pipe tapered thread (C to FNPT/NPT)
• Pressure rating: 700 psi; outside diameter 7/8 in; overall length 1.61 in
• Standards: ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1 and NSF 61G

Product Highlights

3/4 in copper sweat-to-thread female adapter for above-ground potable water and plumbing systems; model W 01246 (WC-402).

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 01246
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 01246
• Model / Style: WC-402
• Fitting Type: Adapter (Female)
• Material: Wrot copper
• Nominal Size: 3/4 in
• Connection Type: C x FNPT (cup/solder to female pipe tapered thread, NPT)
• End Type: C - Cup (female solder)
• Second End Type: FPT / FNPT - Female pipe tapered thread (NPT)
• Outside Diameter: 7/8 in (0.875 in OD)
• Overall Length: 1.61 in
• Overall Height: 1.34 in
• Overall Width: 1.34 in
• Weight: 0.14 lb
• Pressure Rating: 700 psi
• Intended Use / Application: Above-ground potable water supply systems; plumbing and HVAC connections
• Standards / Certifications: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61G
