Mueller Streamline W 01163 Adapter Male C x MPT 1 in

Product Description

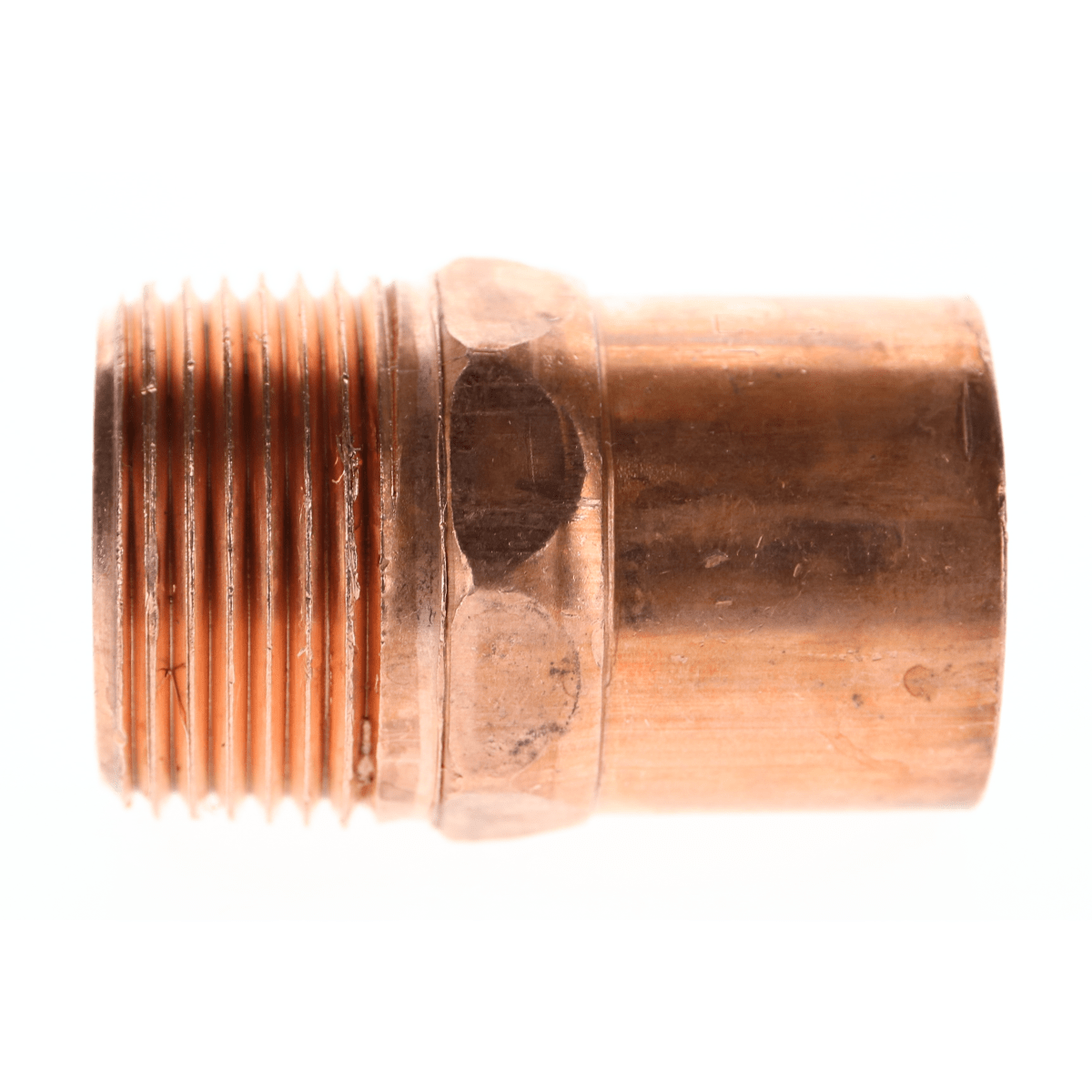

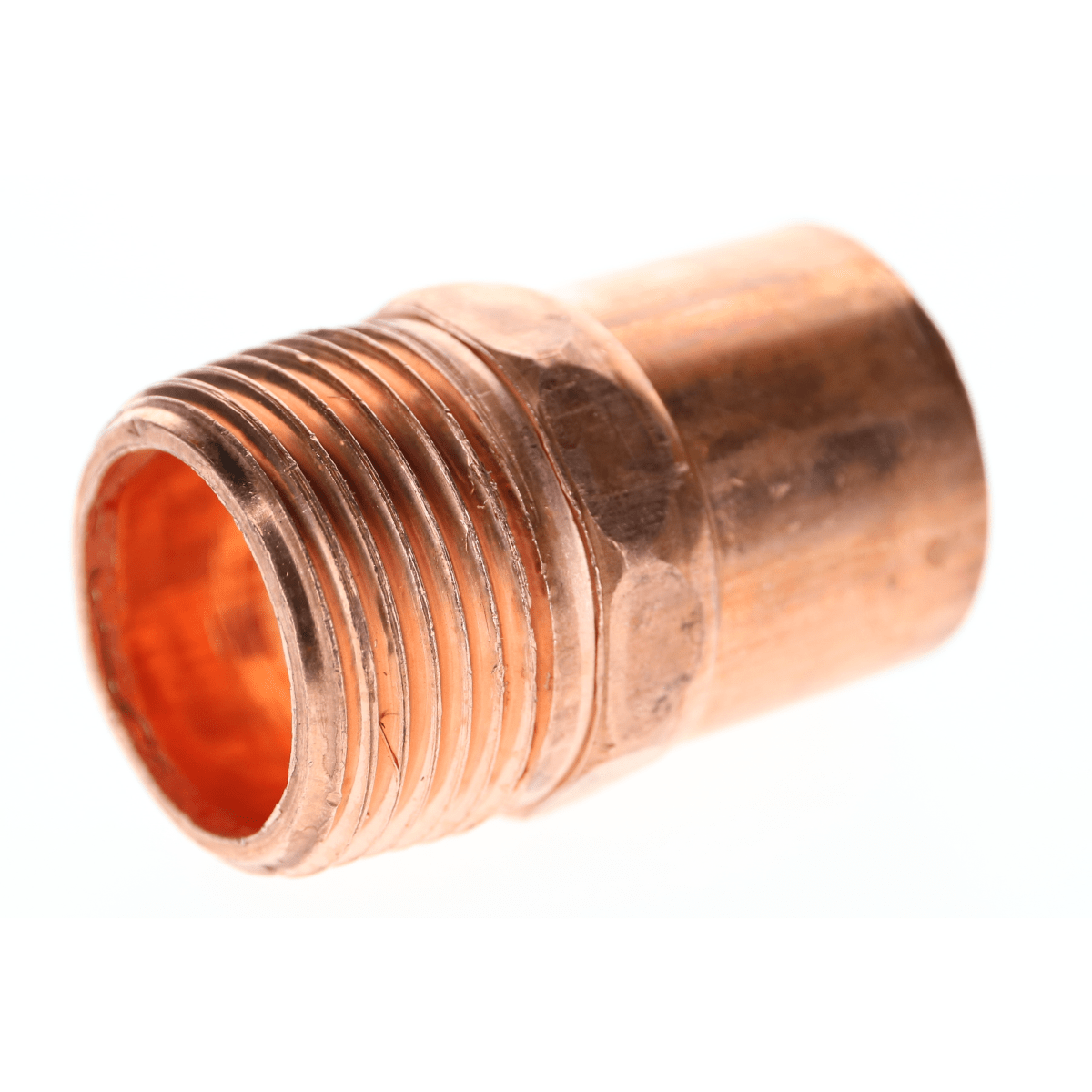

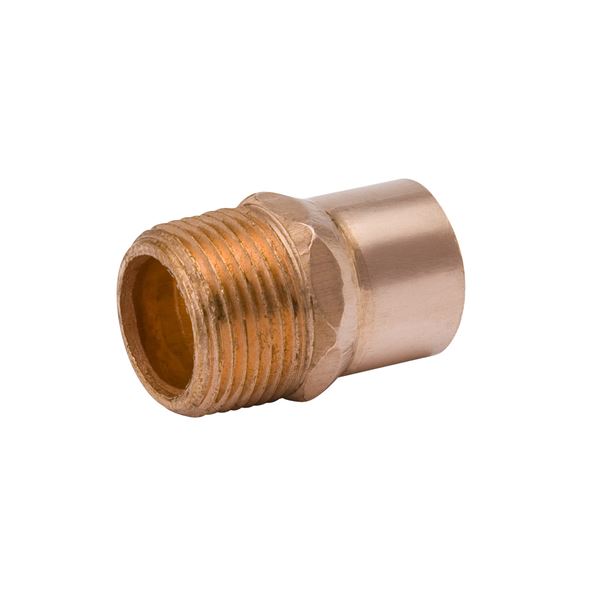

Mueller Streamline W 01163 is a 1 in C x MPT male adapter used to join 1 in nominal copper tubing to 1 in male pipe tapered threads. The fitting features a cup (solder) end, 1-1/8 in outer diameter, overall length 2.05 in, and a 700 psi pressure rating. Constructed of wrought copper (wrought copper or bronze noted), it complies with applicable ASME B16 series standards and NSF 61G for above-ground potable water, plumbing, refrigeration, and HVACR systems.

• 1 in nominal size with 1-1/8 in outer diameter; overall length 2.05 in and weight 0.24 lb
• Cup (C) solder-joint end to 1 in MPT (male pipe tapered thread) connection (C x MPT)
• 700 psi pressure rating; meets ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1 and NSF 61G

Product Highlights

1 in C x MPT solder-joint male adapter; 1-1/8 in OD; 700 psi; ASME and NSF 61G compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 01163
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 01163
• Model / Style: WC-401
• Product Name: Adapter Male, C x MPT, 1 in
• Material: Copper (wrought copper or bronze construction noted)
• Nominal Size: 1 in
• Outer Diameter: 1-1/8 in
• End Style: C x MPT
• Connection Type: Cup (female solder) x Male Pipe Tapered Thread (MPT)
• Second End Size: 1 in
• Overall Length: 2.05 in
• Overall Height: 1.38 in
• Overall Width: 1.38 in
• Weight: 0.24 lb
• Pressure Rating: 700 psi
• Standards / Certifications: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61G
• Intended Use: Above-ground potable water supply systems; plumbing; refrigeration and HVACR supply/pressurized systems
