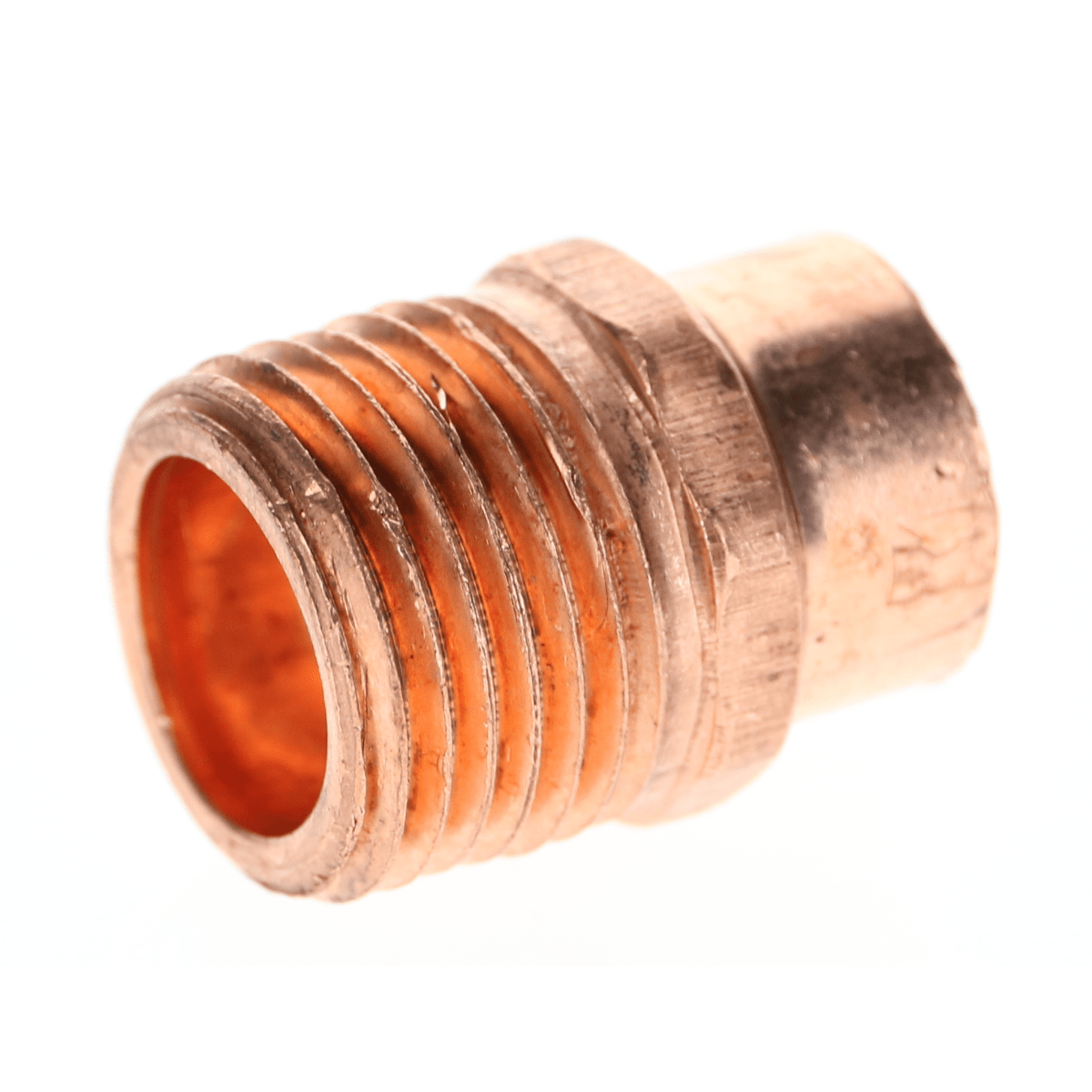

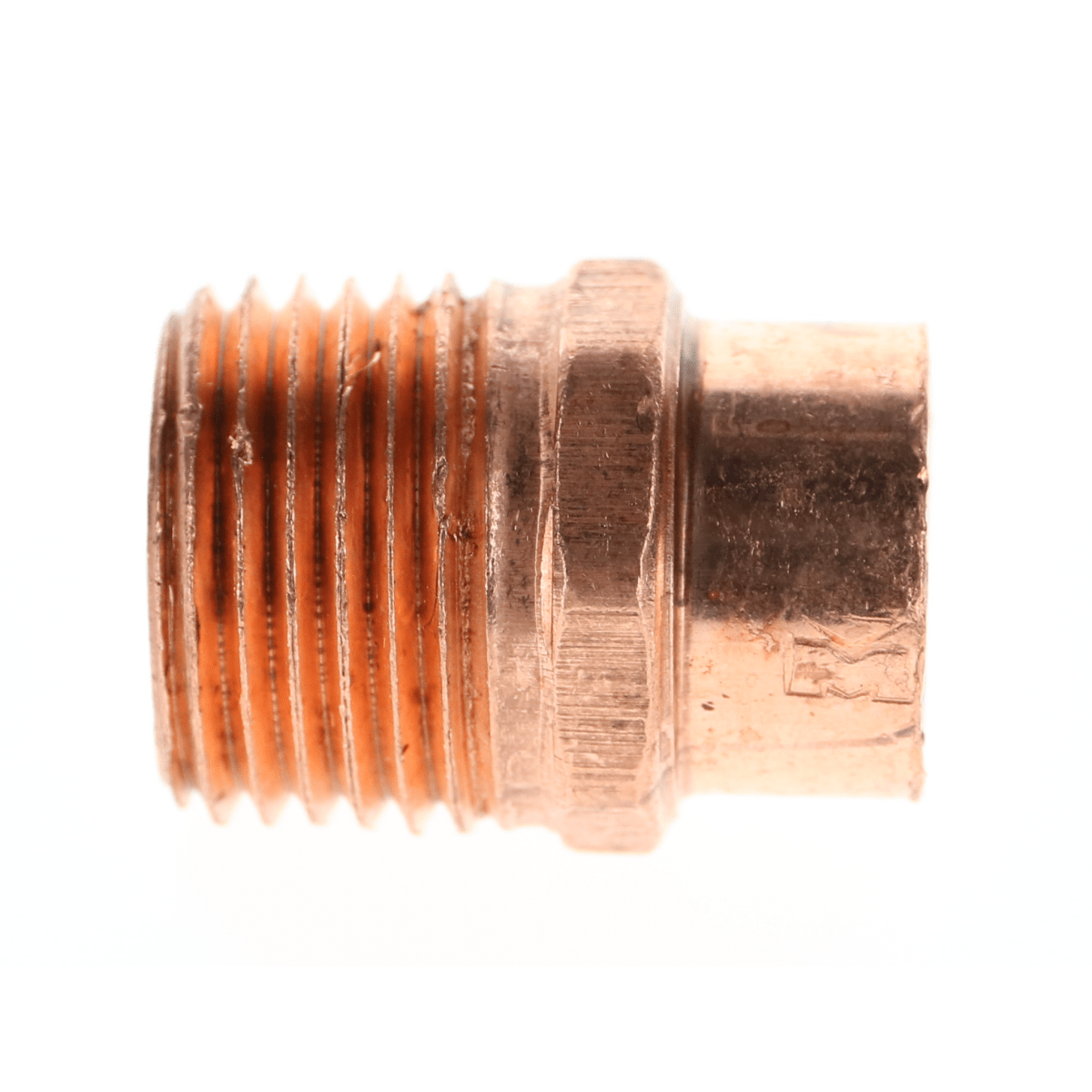

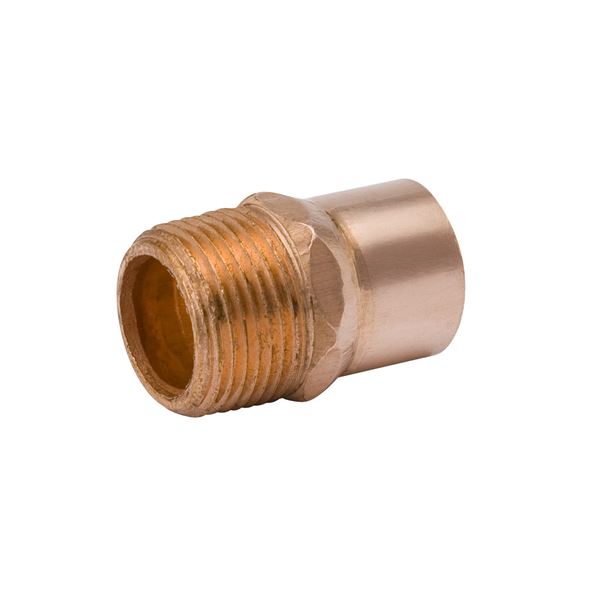

Mueller Streamline W 01131 1/2 C x M Adapter (5/8 OD x 1/2 MPT)

Product Description

Mueller Streamline W 01131 is a 1/2 in cup (solder) to 1/2 in male pipe tapered thread (MPT) adapter constructed of copper for above-ground potable water supply systems. The fitting provides a 5/8 in outside diameter tubing connection, measures approximately 1.11 in overall length, and has a listed pressure rating of 700 psi. It is manufactured to ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1 and meets NSF 61G.

• Material: copper (wrot copper; cast bronze where applicable) with style WC-401 construction
• Connection: 1/2 in cup (female solder) to 1/2 in MPT (male pipe tapered thread); 5/8 in tubing OD
• Performance and standards: 700 psi pressure rating; complies with ASME B16 series and NSF 61G

Product Highlights

1/2 in cup-to-MPT copper adapter, 5/8 in tubing OD, 700 psi, ASME and NSF 61G certified

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 01131
• Country of Origin: Domestic (United States)

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 01131
• Model / Style: WC-401
• Product Type: Adapter (Male)
• Connection Type: Cup (solder) x Male Pipe Taper (MPT/NPT)
• End Type 1: C - Cup (Female Solder)
• End Size 1: 1/2 in
• End Type 2: MPT - Male Pipe Tapered Thread (NPT)
• End Size 2: 1/2 in
• Nominal Size: 1/2 in
• Tube Outside Diameter: 5/8 in OD
• Material: Copper (wrot copper; cast bronze where applicable)
• Pressure Rating: 700 psi
• Standards / Approvals: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61G
• Applications: Above-ground potable water supply systems; refrigeration/HVAC connections
• Overall Length: 1.11 in
• Overall Height: 0.87 in
• Overall Width: 0.87 in
• Weight: 0.06 lb
• Part Number (alt): COPF-050-MA-C
