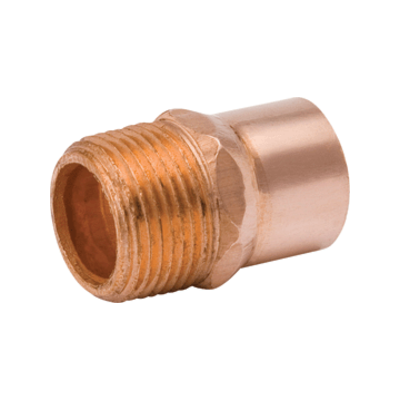

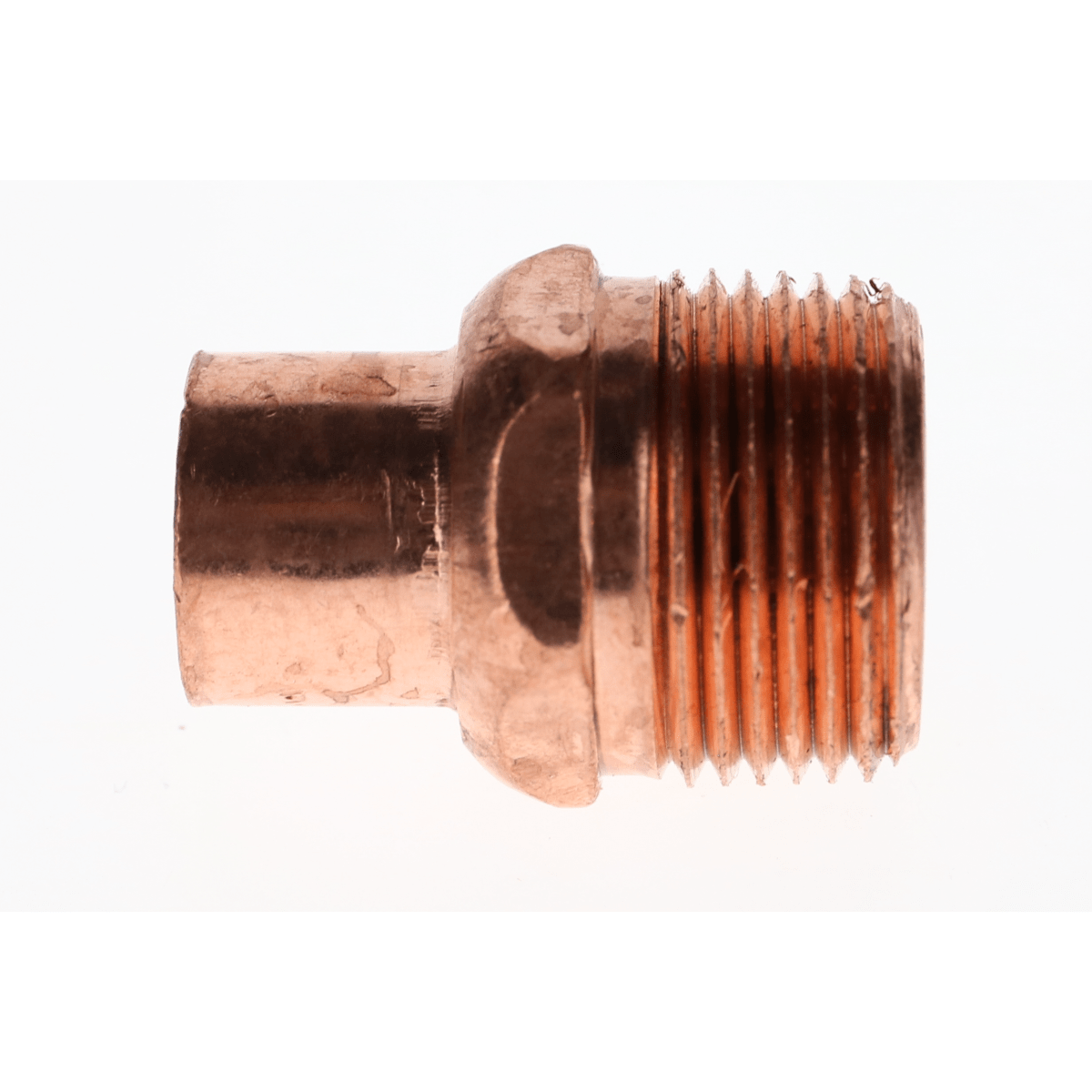

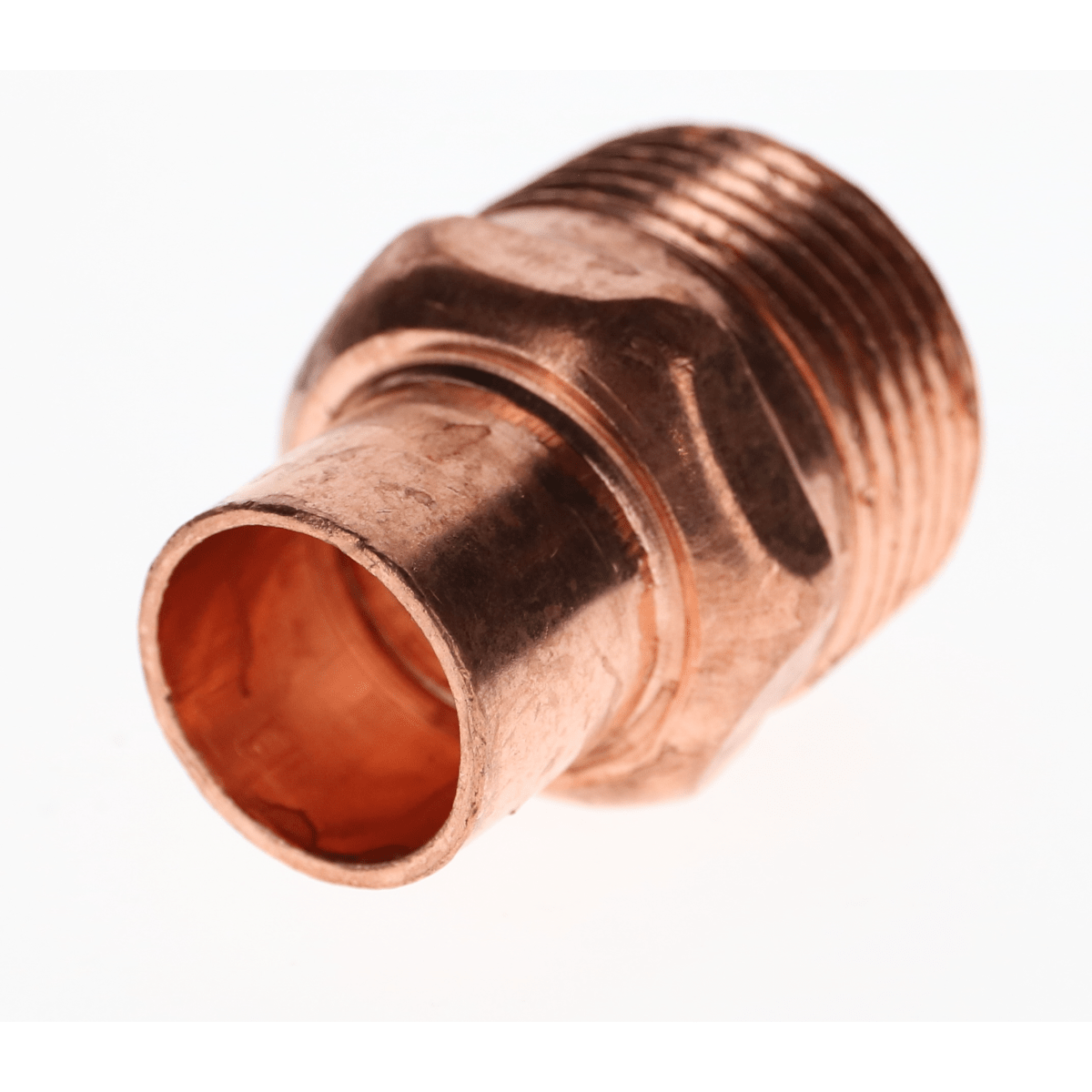

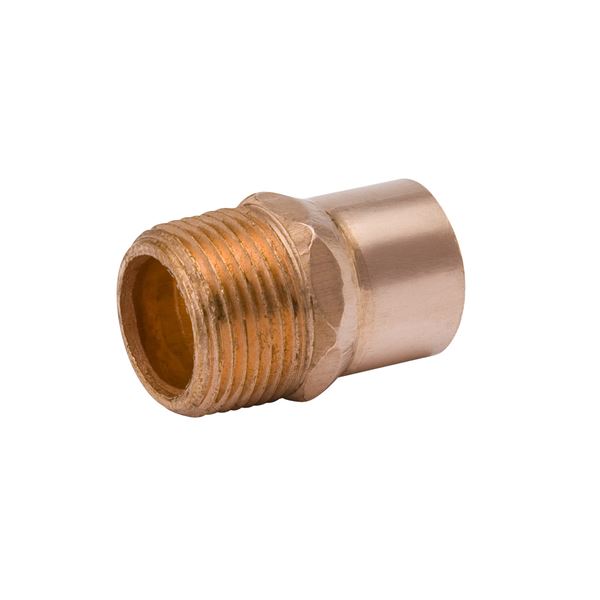

Mueller Streamline W 01130 Copper sweat male adapter C x MPT (1/2 x 3/4)

Product Description

The Mueller Streamline W 01130 is a copper sweat male adapter that connects 1/2-inch copper tubing to a 3/4-inch male pipe tapered thread (MPT). The solder-joint (cup) end accepts 1/2-inch copper (5/8-inch OD) and the MPT end provides a 3/4-inch threaded connection. Constructed of wrot copper for above-ground potable water distribution, the adapter conforms to applicable ASME standards and NSF 61G.

• Connection: 1/2 in cup (female solder) to 3/4 in MPT (male pipe tapered thread); connects 5/8 in OD copper to 3/4 in thread
• Material and standards: wrot copper construction; meets NSF 61G and applicable ASME standards (B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1)
• Physical: overall length 1.43 in, dimensions 1.43 in L x 1.14 in H x 1.14 in W; weight 0.17 lb per EA

Product Highlights

Copper sweat adapter (C x MPT) for connecting 1/2 in copper tubing to 3/4 in male pipe thread; NSF 61G and ASME compliant; wrot copper construction.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 01130

Technical Specifications

• Brand: Mueller Streamline
• MPN: W 01130
• Manufacturer Part Number / Model: W-1130 (WC-401 / WC-401R)
• Part Number: COPF-050.075-MA-C
• UPC: 685768232506
• Material: Wrot copper
• Type: Male adapter
• Connection Type: C x MPT
• End 1 Type: Cup (female solder)
• End 1 Size: 1/2 in (5/8 in OD)
• End 2 Type: Male pipe tapered thread (MPT)
• End 2 Size: 3/4 in
• Connection Sizes (OD): 5/8 in x 3/4 in
• Nominal Size: 1/2 in
• Series / Style: WC-401 / WC-401R
• Standards / Certifications: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Overall Length: 1.43 in
• Dimensions: 1.43 in L x 1.14 in H x 1.14 in W
• Weight: 0.17 lb per EA
• Intended Use: Above-ground potable water supply systems
