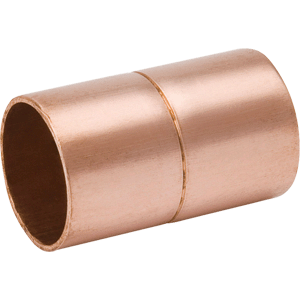

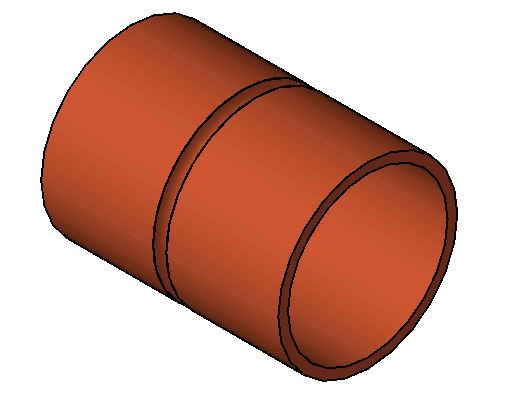

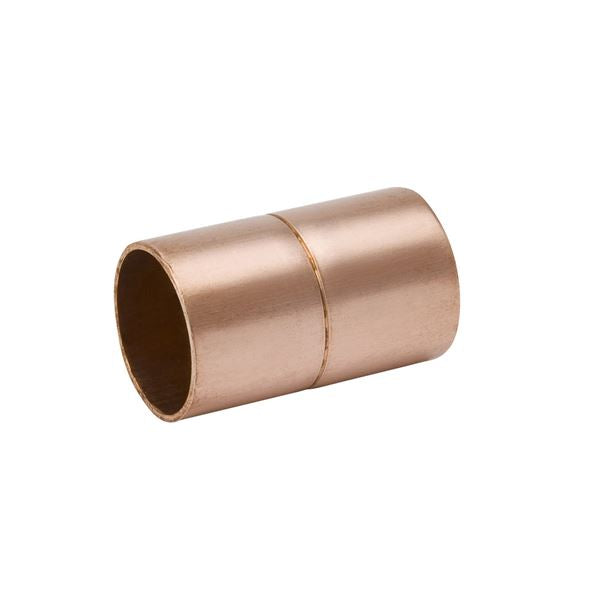

Mueller Streamline W 01055 stop coupling 1-3/8 in OD (1-1/4 nominal / WC400-1-3/8)

Product Description

The Mueller Streamline W 01055 is a rolled-stop solder-joint coupling sized for 1-3/8 in outside diameter tubing (nominal 1-1/4 in). Constructed of wrot copper (WC-400 style) with C x C cup ends, it is intended for above-ground potable water supply systems and is rated for pressure service to 700 psi. The fitting meets applicable ASME B16 series standards and NSF 61G where specified.

• Rolled-stop coupling with C x C (cup) female solder ends for solder-joint connections
• Material: wrot copper (WC-400); nominal size 1-1/4 in; outside diameter 1-3/8 in
• Pressure rating 700 psi; meets ASME B16.15, B16.18, B16.22, B16.24, B16.50 and NSF 61G

Product Highlights

Rolled-stop copper solder-joint coupling for 1-1/4 nominal (1-3/8 in OD) with 700 psi rating and ASME/NSF compliance

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 01055
• Country of Origin: United States

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 01055
• Alternate Part Numbers: WC400-1-3/8; 30685768206003; 50685768206007; 90-04-GJ; C1-3/8; C138; CO138; CPR 1 3/8 CUP; MBCWC400-1-3/8; W01055
• Product Type: Coupling, Rolled Stop
• Nominal Size: 1-1/4 in
• Outside Diameter: 1-3/8 in (1.375 in)
• End Style: C x C (cup/cup, female solder)
• Connection Type: Sweat (solder-joint)
• Material: Wrot copper (WC-400)
• Style: WC-400
• Pressure Rating: 700 psi
• Application: Above-ground potable water supply systems; pressure service
• Standards/Certifications: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; NSF 61G
• Item Number: W 01055
• Overall Length: 2.11 in
• Overall Width: 1.49 in
• Overall Height: 1.49 in
• Weight: 0.15 lb
