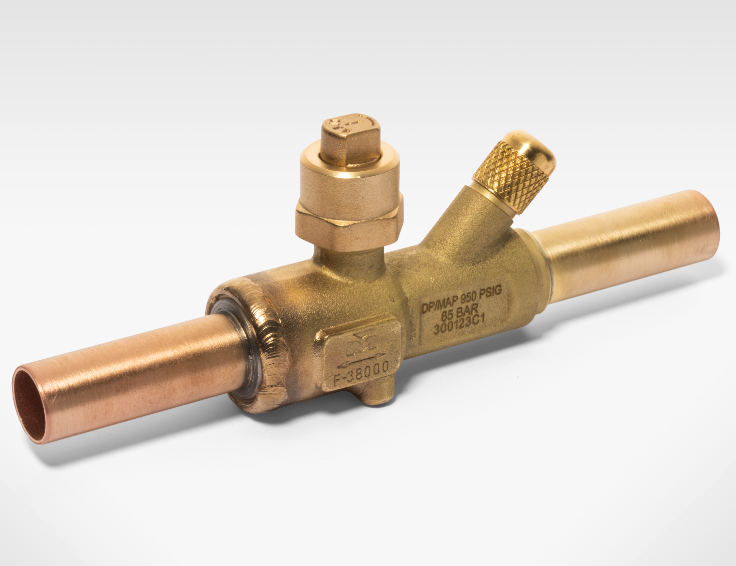

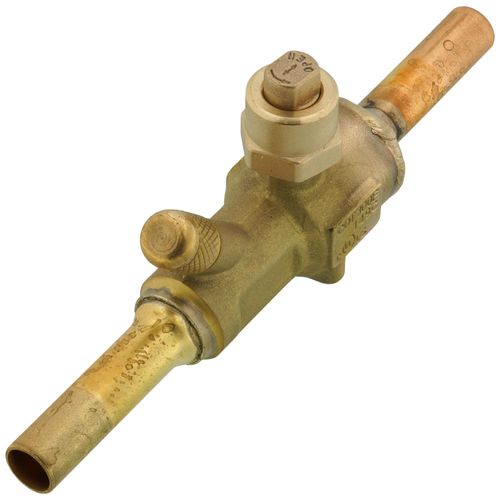

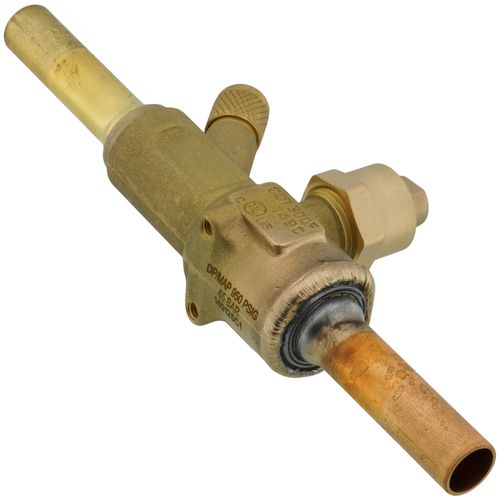

Mueller Streamline RP18961 Cyclemaster Multi-Split Ball Valve with Access Port 1/2 inches FTG

Product Description

The Mueller Streamline RP18961 is a 1/2" OD FTG Cyclemaster Multi-Split Ball Valve with Access Port. It features full port construction to match line size ID and an internally equalized ball design. The valve also has a rupture-proof encapsulated stem and MCM Seal Technology. Operating temperature ranges from -40F to 300F.

• 1/2" FTG Connection
• -40°F Min Temp
• 300°F Max Temp

Product Highlights

This Cyclemaster multi-split ball valve is UL/cUL Listed and conforms to Pressure Equipment Directive 2014/68/EU. It is designed for easy use with Streamline ACR Copper Press Fittings.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP18961

Technical Specifications

• Connection Type: FTG
• Min Temp (F): -40°F
• Product Type: Ball Valve
• Size: 1/2"
• Max Temp (F): 300°F
• Connection Size: 1/2 in
• End Type: FTG
• A: 6.43 in
• B: 3.54 in
• C: 1.64 in
• D: 1.65 in
• E: 0.500 in
• F: 0.54 in
• G: 2.23 in
• H: 0.87 in
• I: M4×0.7
• Overall Length (In.): 6.43
