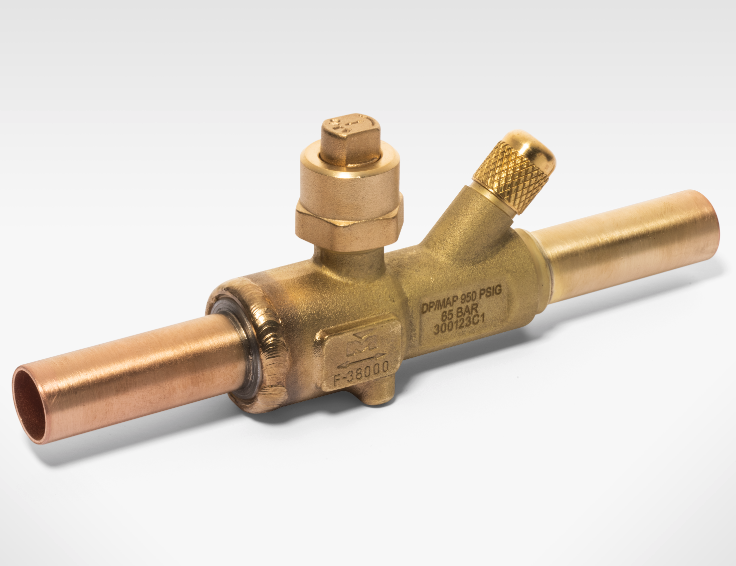

Mueller Streamline RP18960 CYCLEMASTER FTG x FTG Multi Split Ball Valve with Access Port

Product Description

The MUELLER STREAMLINE RP18960 CYCLEMASTER FTG x FTG Multi Split Ball Valve features an access port and is available in sizes 1/4” – 1-3/8”. It has full port construction to match line size ID and an internally equalized ball design. This valve features a rupture-proof encapsulated stem and MCM Seal Technology. It is UL/cUL Listed and conforms to Pressure Equipment Directive 2014/68/EU.

• Available in sizes 1/4” – 1-3/8”
• Operating Temperature: -40°F – 300°F / -40°C – 149°C
• Full port construction to match line size ID

Product Highlights

The MUELLER STREAMLINE RP18960 ball valve is designed for use with Streamline ACR Copper Press Fittings and is UL Recognized to 700 PSI.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP18960

Technical Specifications

• Connection Size: 3/8 in
• End Type: FTG
• End Style: FTG x FTG
• Nominal Size: 3/8 in
• Manufacturer: Mueller Industries
• Manufacturer #: RP18960
• Series: CYCLEMASTER
• Operating Temperature: -40°F – 300°F / -40°C – 149°C
• Temperature Rating: -40 to 300 deg F
