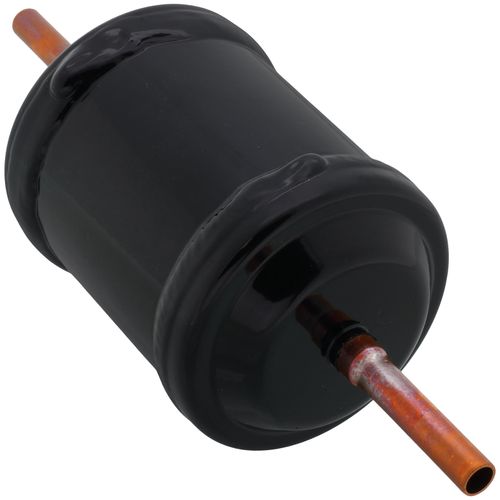

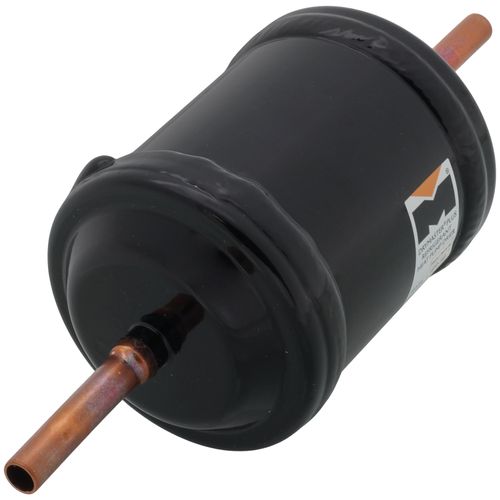

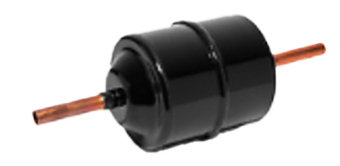

Mueller Streamline RP17391 3/8 inches - 16 inches FTG Drymaster Heat Pump Filter Drier

Product Description

The MUELLER STREAMLINE RP17391 is a 3/8" - 16" FTG Drymaster Heat Pump Filter Drier. It features a solid core design and a high-pressure shell with connections. The high retention filter removes particulate as small as 25 microns. Operating temperature ranges from -40°F to 160°F (-40°C to 70°C).

• Operating Temperature: -40°F - 160°F/ -40°C - 70°C
• Solid core design
• High retention filter for removal of particulate as small as 25 microns

Product Highlights

This filter drier is UL/cUL Listed and conforms to EU Pressure Equipment Directive and UK Pressure Equipment Regulation.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP17391
• Country of Origin: CHINA

Technical Specifications

• Min Temp (F): -40°F
• Max Temp (F): 160°F
• Connection Size: 3/8"
• Product Type: Filter Drier
• Micron Rating: 25
• Model: HPP-163
• Dessicant Cu: 16
• Size: 3/8 in
• B: 8.59 in
• A: 4.33 in
• D1: 3.11 in
• D2: 2.92 in
• Length: 8.59"
• Dessicant Cu In.: 16
• Size (In.): 3/8
• Overall Length (In.): 8.59
• Overall Width (In.): 3.11
• Brand: Streamline
• MPN: RP17391
• UPC: 685768452478
