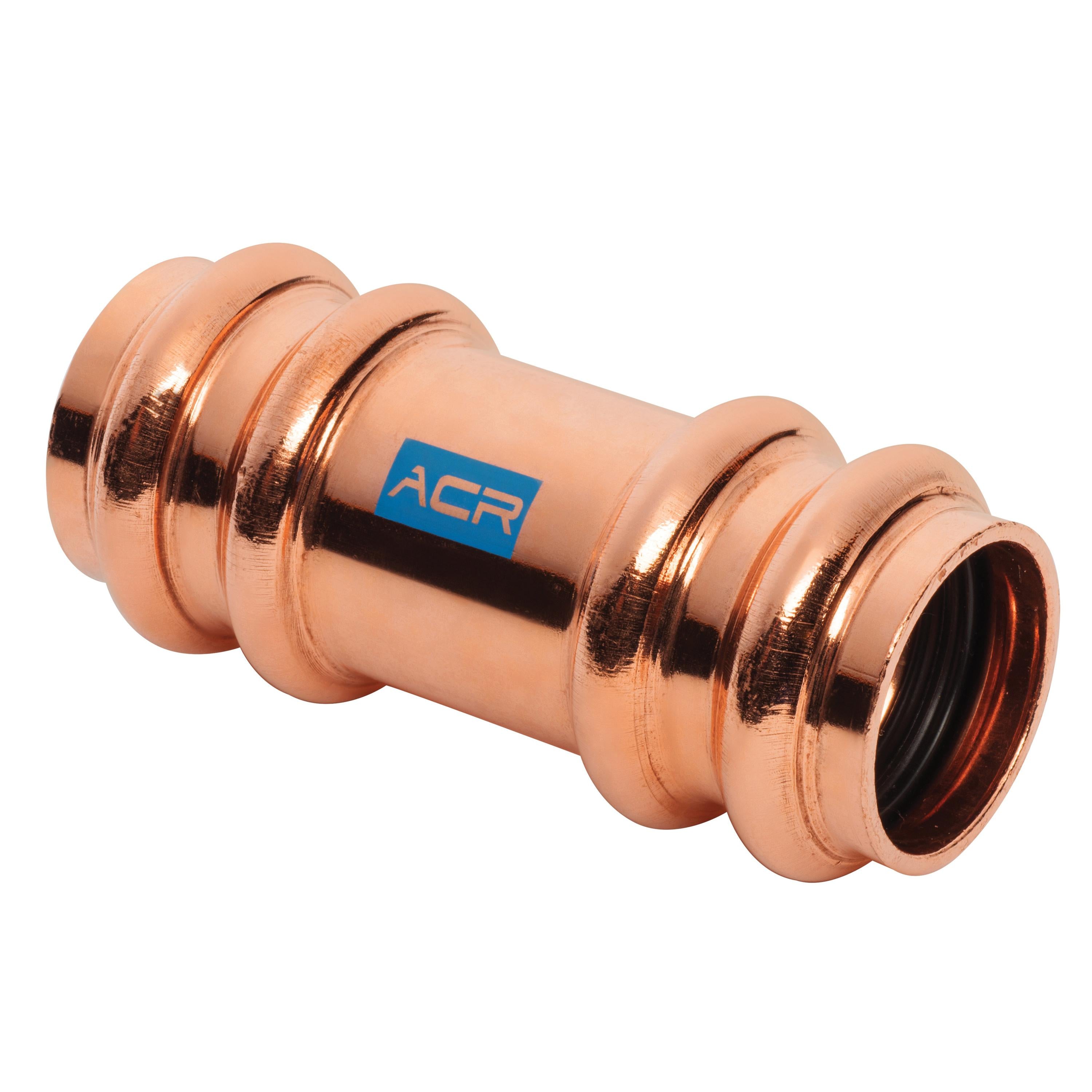

Mueller Streamline RP10144 Coupling With Staked Stop 1/2 in Press x 1/2 in Press

Product Description

The Mueller Streamline RP10144 coupling is designed for high-performance connections in press applications. With a size of one-half inch press on both sides, this coupling is made from durable copper material.

• Compatible with Type-ACR, L, K hard and soft copper tubes.
• Features two-ring advanced press technology for superior joint strength.
• Operating temperature range from negative forty to two hundred fifty degrees Fahrenheit.

Product Highlights

This coupling incorporates industry-leading technology to ensure effective sealing and reliability under pressure.

Product Information

Standard Information

• Brand: Mueller Streamline
• Material: Copper

Technical Specifications

• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type 1: Press
• Connection Type 2: Press
• Fitting Type: Coupling
• For Use With: Type-ACR, L, K Hard and Soft Copper Tubes
• Dimensions: 2.28 in L x 0.79 in W x 0.79 in H
• Pressure Rating: 700 psi
• Temperature Rating: -40 to 250 deg F
