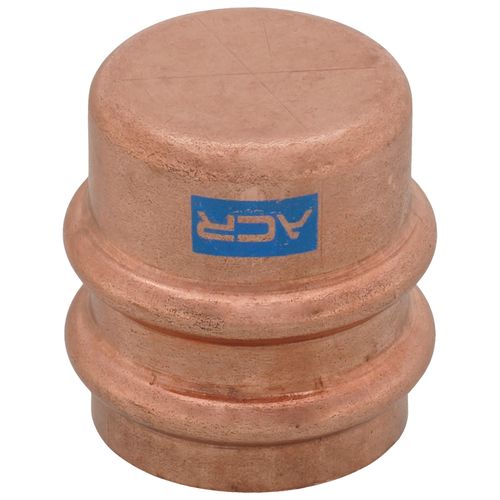

Mueller Streamline RP07012 ACR Press Tube Cap 1-3/8 inches

Product Description

The MUELLER STREAMLINE RP07012 is a 1-3/8" OD ACR Copper Press Cap. Approved for use with Type ACR, L, K hard and soft copper tube. It features Two Ring Advanced Press (T.R.A.P.) Technology and DualSeal Ring Design that provides superior sealing and joint strength with 200% more surface contact. Compatible with leading full-size press tools on the market.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology
• DualSeal Ring Design provides superior sealing and joint strength with 200% more surface contact.

Product Highlights

The Mueller Streamline ACR copper press cap features Two Ring Advanced Press (T.R.A.P.) Technology and DualSeal Ring Design.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP07012

Technical Specifications

• Material: Copper
• Max Temp (F): 250°F
• Max Pressure (PSI): 700
• Min Temp (F): -40°F
• Connection Type: Press
• Size: 1-3/8"
• Product Type: Cap
• Operating Temperature [Min]: -40 °F
• Operating Temperature [Max]: 250 °F
• Operating Pressure [Max]: 700 psi
• End Type: ACR Press
• End Size: 1 3/8 in
• Overall Length: 1.77 in
• Overall Height: 1.75 in
• Overall Width: 1.75 in
