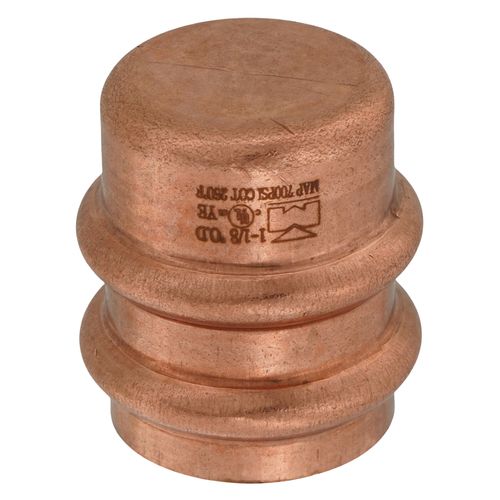

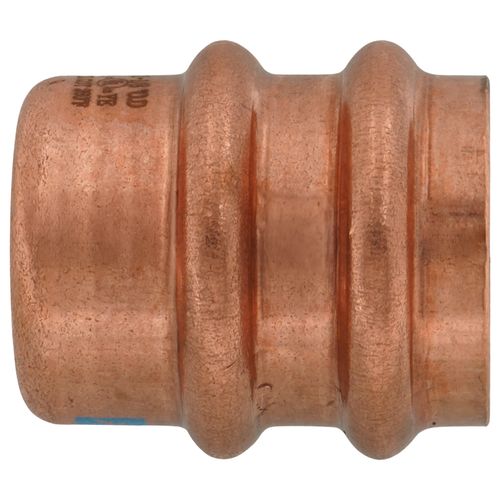

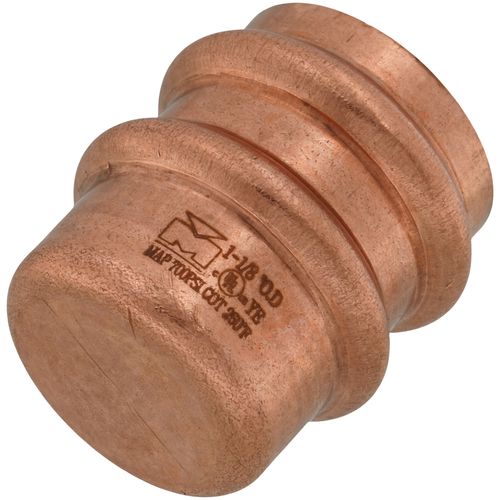

Mueller Streamline RP07011 ACR Press Tube Cap 1 1/8 inches

Product Description

The MUELLER STREAMLINE RP07011 is an ACR press tube cap with a size of 1 1/8". This cap is approved for use with Type ACR, L, K hard and soft copper tube. It is compatible with R410A and other commonly used refrigerant gases and oils. Compatible with leading full-size press tools on the market.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology
• DualSeal Ring Design provides superior sealing and joint strength with 200% more surface contact.

Product Highlights

The Streamline ACR press tube cap provides a secure and reliable connection for ACR systems, ensuring optimal performance and longevity.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP07011

Technical Specifications

• Material: Copper
• Size: 1-1/8"
• Max Temp (F): 250°F
• Max Pressure (PSI): 700
• Min Temp (F): -40°F
• Connection Type: Press
• Product Type: Cap
• Operating Temperature [Min]: -40 ºF
• Operating Temperature [Max]: 250 ºF
• Operating Pressure [Max]: 700 psi
• End Type: ACR Press
• End Size: 1 1/8 in
• Overall Length: 1.63 in
• Overall Height: 1.50 in
• Overall Width: 1.50 in
• Fitting / Connector Type: Cap
• Series: Steamline
• Manufacturer: Mueller Industries
• Manufacturer #: RP07011
• Pressure Rating: 700 psi
• Temperature Rating: -40 to 250 deg F
