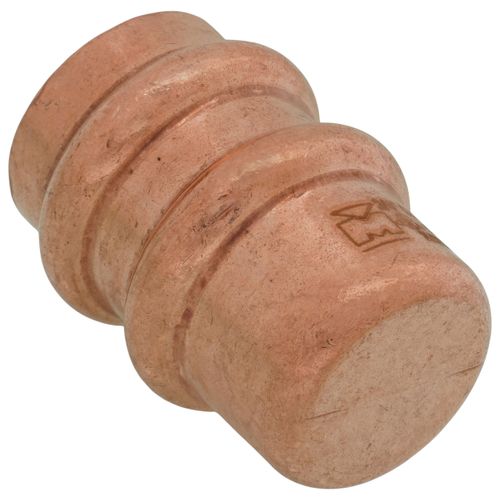

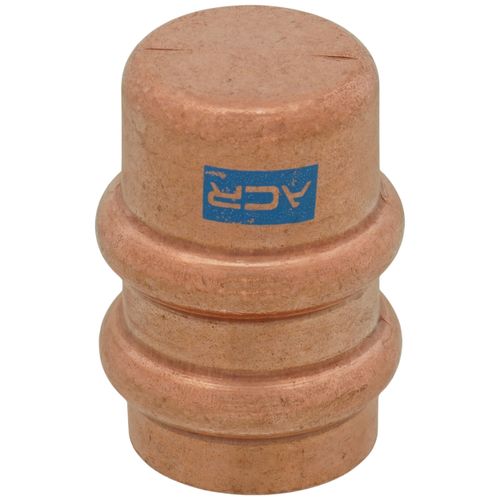

Mueller Streamline RP07008 ACR Press Tube Cap 3/4 inches

Product Description

The Mueller Streamline RP07008 is a 3/4" OD ACR copper press cap approved for use with Type ACR, L, and K hard and soft copper tube. It features industry-leading Two Ring Advanced Press (T.R.A.P.) Technology and a DualSeal Ring Design for superior sealing and joint strength. Compatible with R410A and other commonly used refrigerant gases and oils.

• Approved for use with Type ACR, L, K hard and soft copper tube
• Features Two Ring Advanced Press (T.R.A.P.) Technology
• Compatible with R410A and other commonly used refrigerant gases and oils

Product Highlights

The Mueller Streamline ACR press tube cap offers a reliable and efficient solution for HVACR applications, ensuring secure connections and compatibility with various refrigerants.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP07008
• Country of Origin: United States

Technical Specifications

• Product Type: Cap
• Max Pressure (PSI): 700
• Size: 3/4"
• Min Temp (F): -40°F
• Connection Type: Press
• Material: Copper
• Max Temp (F): 250°F
• Operating Temperature [Min]: -40 ºF
• Operating Temperature [Max]: 250 ºF
• Operating Pressure [Max]: 700 psi
• End Type: ACR Press
• End Size: 3/4 in
• Overall Length: 1.44 in
• Overall Height: 1.07 in
• Overall Width: 1.07 in
• Dimension X: 0.18 in
• Brand: Streamline
• MPN: RP07008
• UPC: 685768449058
• Country of Origin: United States
• Category: Business & Industrial
• Operating Temperature (Min.): -40°F
• Operating Temperature (Max.): 250°F
