Product Description
The Mueller Streamline RP07007 is a 5/8" OD ACR Press Tube Cap. Approved for use with Type ACR, L, K hard and soft copper tube. Compatible with R410A and other commonly used refrigerant gases and oils. Compatible with leading full-size press tools on the market.
- Approved for use with Type ACR, L, K hard and soft copper tube
- DualSeal Ring Design provides superior sealing and joint strength with 200% more surface contact
- Compatible with R410A and other commonly used refrigerant gases and oils
Product Highlights

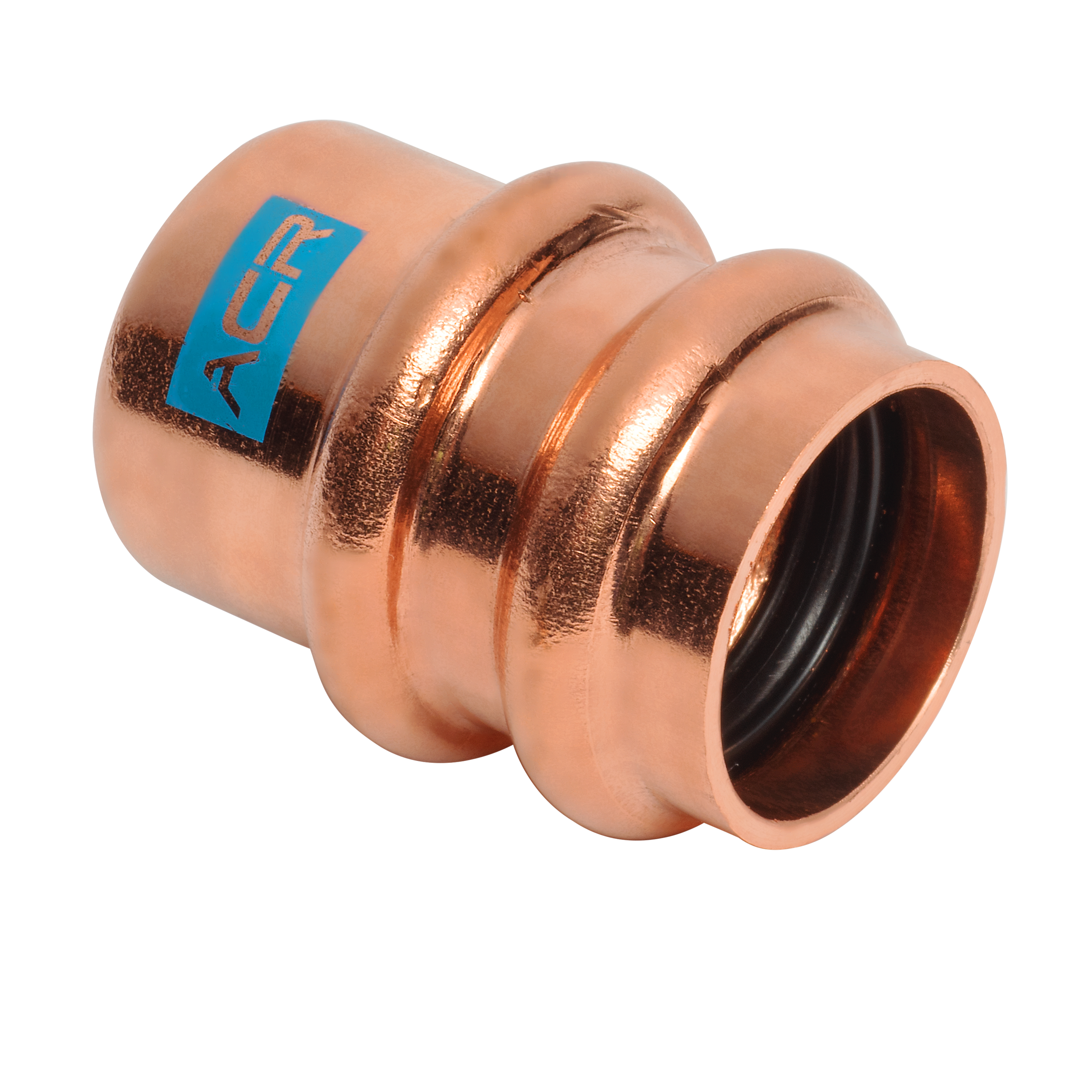

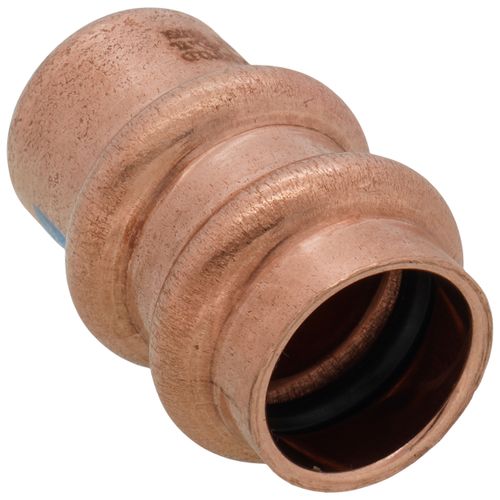

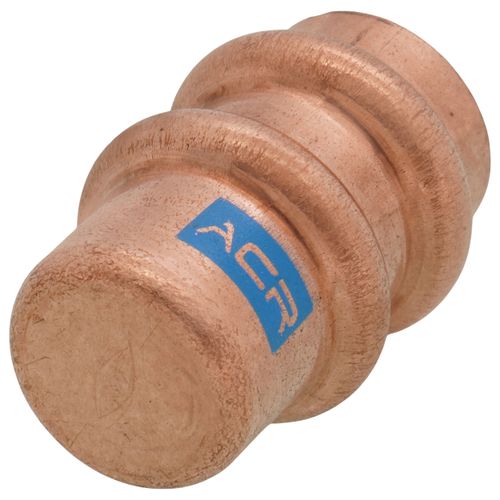

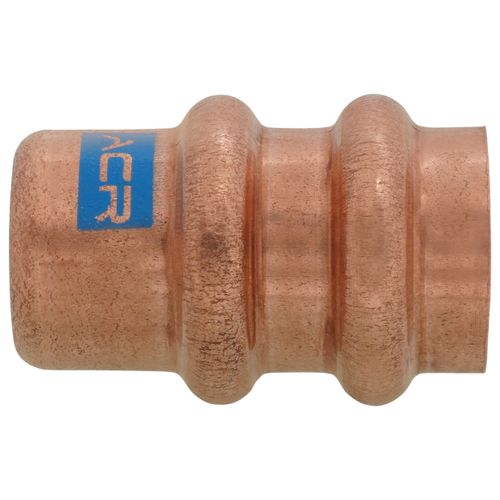

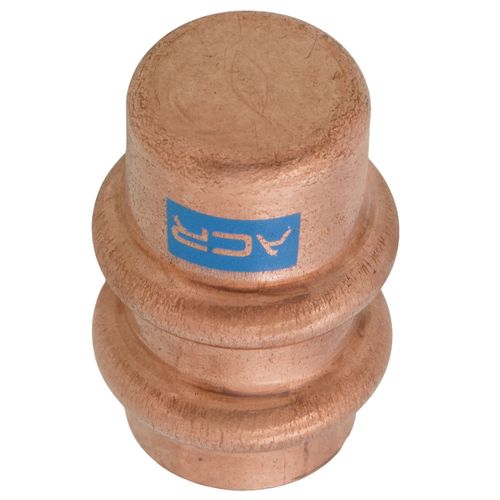

This 5/8" OD ACR copper press cap features Two Ring Advanced Press (T.R.A.P.) Technology and a DualSeal Ring Design.
Product Information
Standard Information
-
Brand: MUELLER STREAMLINE
-
Manufacturer Part Number: RP07007
-
Country of Origin: United States
Technical Specifications
-
Material: Copper
-
Size: 5/8"
-
Max Temp (F): 250°F
-
Connection Type: Press
-
Product Type: Cap
-
Max Pressure (PSI): 700
-
Operating Temperature [Min]: -40 ºF
-
Operating Temperature [Max]: 250 ºF
-
Operating Pressure [Max]: 700 psi
-
End Type: ACR Press
-
End Size: 5/8 in
-
Overall Length: 1 15/32"
-
Overall Height: 0.96 in
-
Overall Width: 0.96 in
-
Dimension X: 0.22 in
-
Brand: Streamline
-
MPN: RP07007
-
UPC: 685768449041
-
Country of Origin: United States
-
Operating Temperature (Min.): -40°F
-
Operating Temperature (Max.): 250°F
-
Item: Fitting
-
Application: Oils, Refrigerant Gases
-
Compatible Copper Tube Type: Type Acr, Type K, Type L
-
Compatible Tube Material: Copper
-
Compatible Tube Outer Dia.: 5/8"
-
Fitting Connection Type: Press Fit
-
Fitting Material: Copper
-
Grade: Grade C12200
-
Material Grade: Grade C12200
-
Max. Operating Pressure: 700 psi
-
Maximum Operating Temperature: 250°F
-
Minimum Operating Temperature: -40°F
-
O-ring Material: HNBR
-
Specific Fitting Shape: Cap
-
Standards: Asme Standards B16.15, B1.20.1, B16.18, B16.22, B16.24, B16.50, Nsf 61G
-
Sub-brand: Streamline(R) Acr
