Product Description

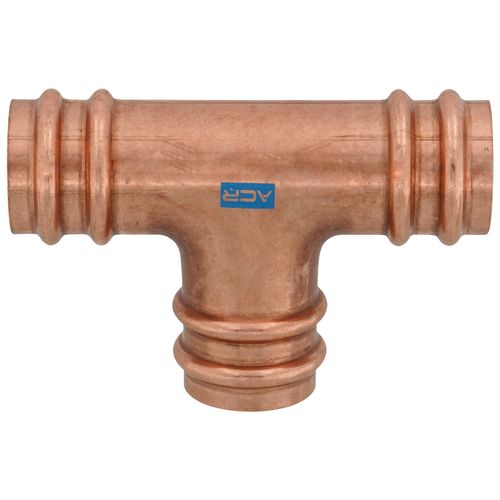

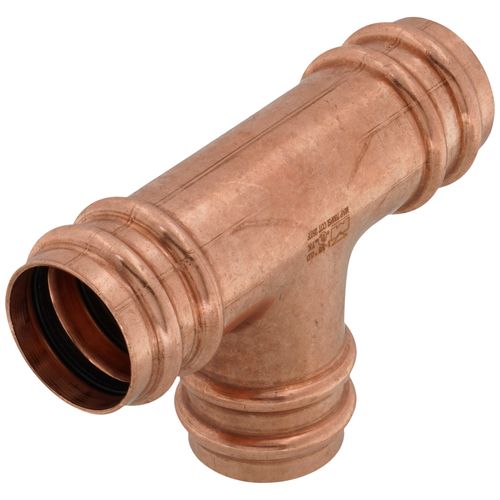

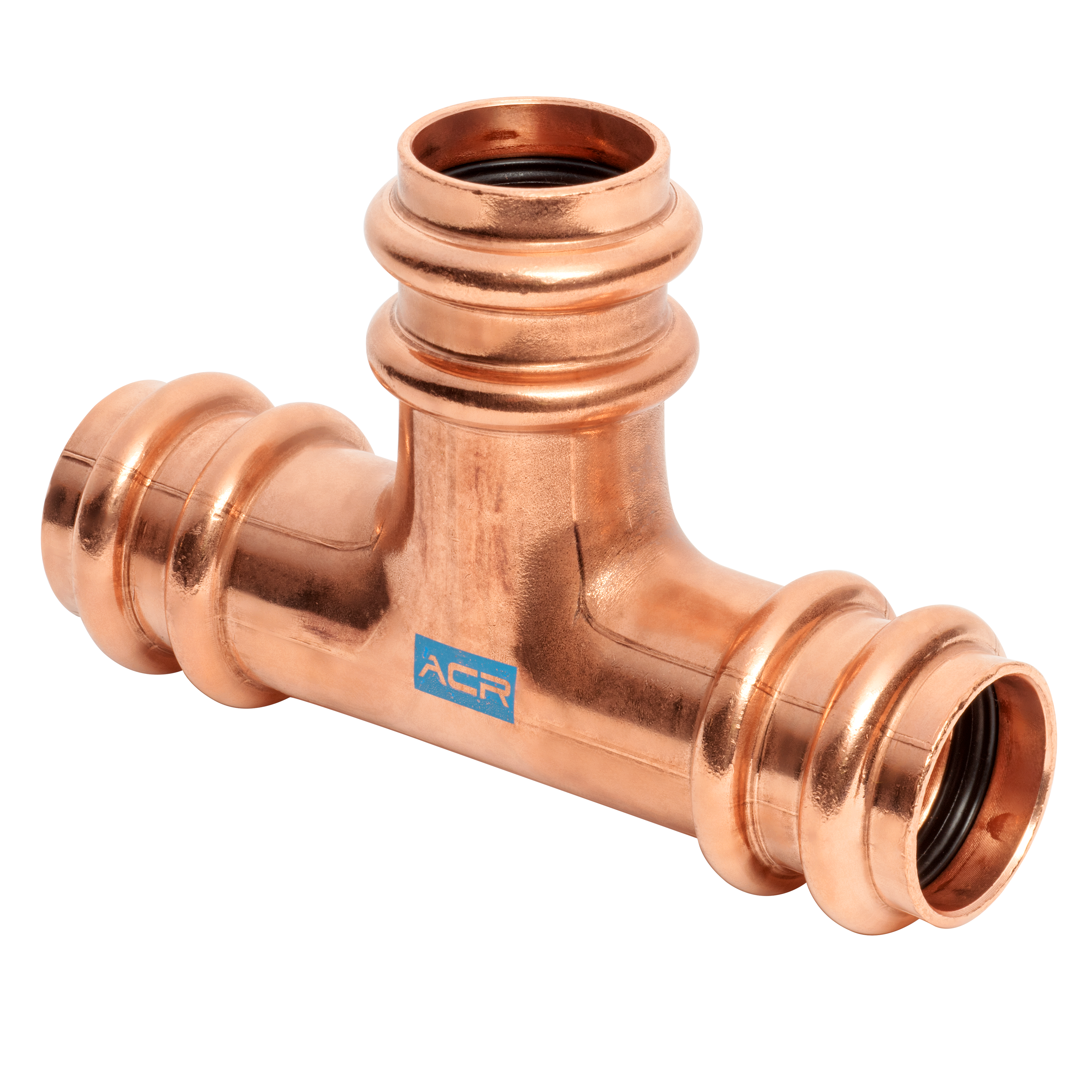

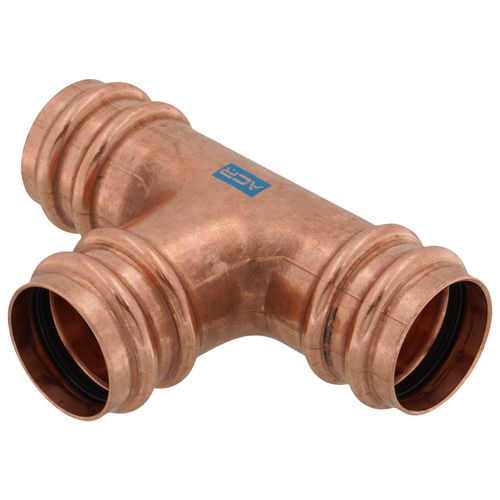

The MUELLER STREAMLINE RP04068 is a 1 3/8" ACR Press Tee. Approved for use with Type ACR, L, K hard and soft copper tube. It features DualSeal Ring Design that provides superior sealing and joint strength with 200% more surface contact. Compatible with R410A and other commonly used refrigerant gases and oils.
- Approved for use with Type ACR, L, K hard and soft copper tube
- DualSeal Ring Design provides superior sealing and joint strength
- Compatible with R410A and other commonly used refrigerant gases and oils
Product Highlights
The MUELLER STREAMLINE ACR Press Tee offers reliable sealing and compatibility with various refrigerant gases, ensuring efficient and productive operations.
Product Information
Standard Information
-
Brand: MUELLER STREAMLINE
-
Manufacturer Part Number: RP04068
Technical Specifications
-
Material: Copper
-
Product Type: Tee
-
Size: 1-3/8"
-
Min Temp (F): -40°F
-
Connection Type: Press
-
Max Pressure (PSI): 700
-
Max Temp (F): 250°F
-
Operating Temperature [Min]: -40 ºF
-
Operating Temperature [Max]: 250 ºF
-
Operating Pressure [Max]: 700 psi
-
End Type: ACR Press
-
End Size: 1 3/8 in
-
Second End Type: ACR Press
-
Second End Size: 1 3/8 in
-
Third End Type: ACR Press
-
Third End Size: 1 3/8 in
-
Overall Length: 5.08 in
-
Overall Height: 3.42 in
-
Overall Width: 1.75 in
-
Dimension X: 0.96 in
-
Dimension Y: 0.96 in
