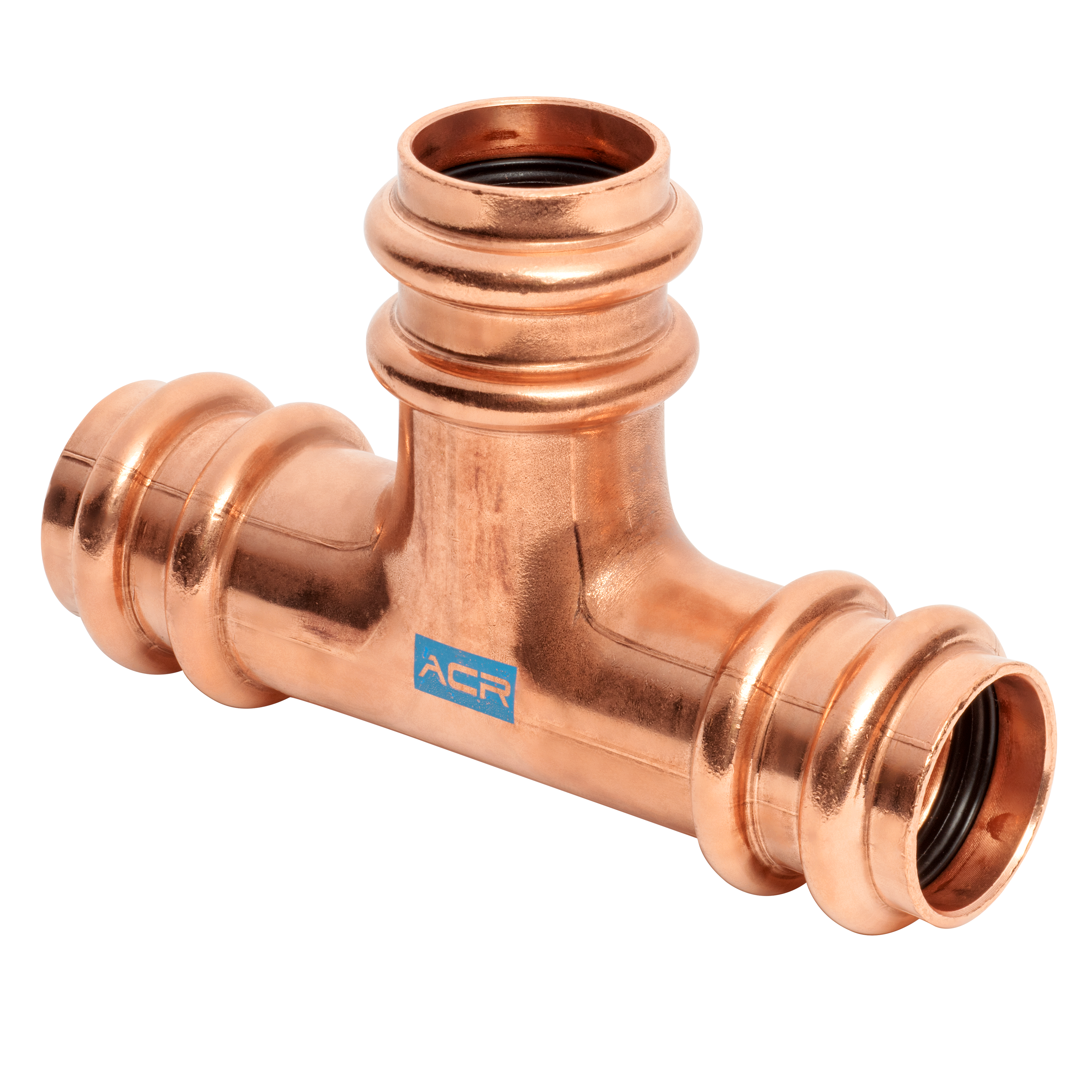

Mueller Streamline RP04048 1 1/8 inches Streamline Acr Press Tee

Product Description

The MUELLER STREAMLINE RP04048 1 1/8" Streamline Acr Press Tee is approved for use with Type ACR, L, K hard and soft copper tube. It features industry-leading Two Ring Advanced Press (T.R.A.P.) Technology and DualSeal Ring Design for superior sealing and joint strength. Compatible with R410A and other commonly used refrigerant gases and oils.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology
• DualSeal Ring Design provides superior sealing and joint strength with 200% more surface contact.

Product Highlights

The Streamline ACR Press Tee offers reliable performance with its advanced press technology and compatibility with various refrigerant gases and oils.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP04048

Technical Specifications

• MPN: RP04048
• Brand: MUELLER STREAMLINE
• Material: COPPER
• Operating Temperature [Min]: -40 ºF
• Operating Temperature [Max]: 250 ºF
• Operating Pressure [Max]: 700 psi
• End Type: ACR Press
• End Size: 1 1/8 in
• Second End Type: ACR Press
• Second End Size: 1 1/8 in
• Third End Type: ACR Press
• Third End Size: 1 1/8 in
• Overall Length: 4.49 in
• Overall Height: 2.99 in
• Overall Width: 1.50 in
• Dimension X: 0.79 in
• Dimension Y: 0.79 in
• Qty Pcs / Bag: 1
• Master Qty Pcs / Box: 40
• Item: Fitting
• Application: Air Conditioning, Ethylene Glycol, Heat Pump, Non-Potable Water, Refrigeration
• Compatible Tube Material: Copper
• Fitting Material: Copper
• Fitting Side A Connection Type: Press Fit
• Fitting Side A Copper Tube Size: 1 1/8"
• Fitting Side A Tube Outer Diameter: 1 1/8"
• Fitting Side B Connection Type: Press Fit
• Fitting Side B Copper Tube Size: 1 1/8"
• Fitting Side B Tube Outer Diameter: 1 1/8"
• Fitting Side C Connection Type: Press Fit
• Fitting Side C Copper Tube Size: 1 1/8"
• Fitting Side C Tube Outer Diameter: 1 1/8"
• Grade: Grade C12200
• Material Grade: Grade C12200
• Max. Operating Pressure: 700 psi
• Maximum Operating Temperature: 250°F
• Minimum Operating Temperature: -40°F
• O-ring Material: HNBR
• Specific Fitting Shape: TEE
• Standards: Ashrae 15, Asme B31.5, Csa C22.2, Imc, Irc, Iso 14903, Iso 5149-2, Ul 109, Ul 1963, Ul 207, Umc
• Sub-brand: Streamline(R) Acr
• End Connection: Press
• Fitting Size: 1-1/8" O.D.
• Fitting Type: Tee
• Manufacturer Name: Mueller Streamline
