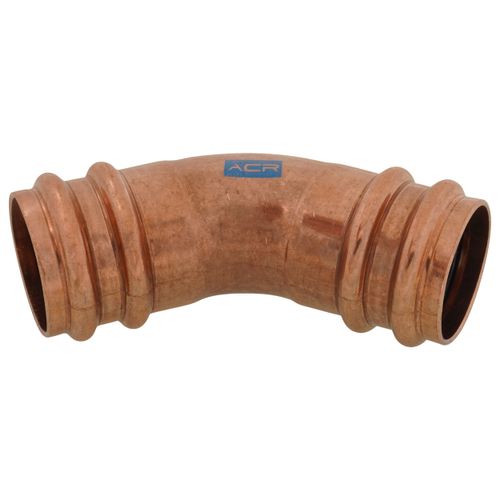

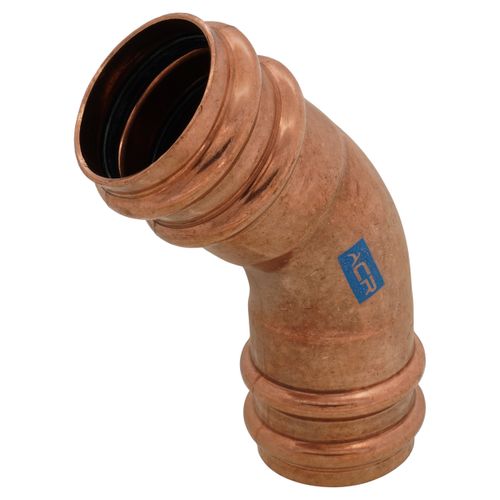

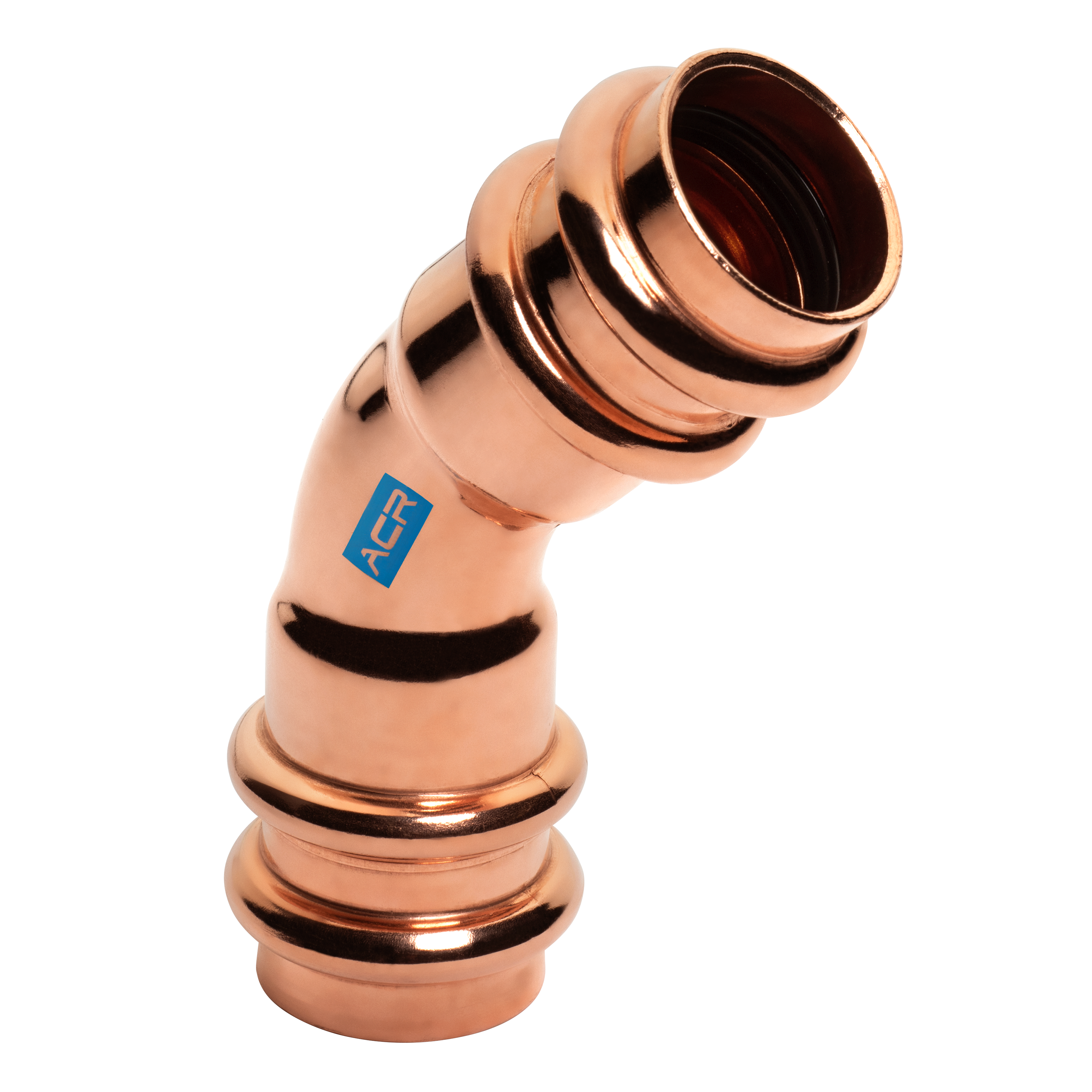

Mueller Streamline RP03050 1 3/8 inches Streamline ACR Press LR 45 Ell

Product Description

The MUELLER STREAMLINE RP03050 is a 1 3/8" Streamline ACR Press LR 45 Ell. Approved for use with Type ACR, L, K hard and soft copper tube. It features industry-leading Two Ring Advanced Press (T.R.A.P.) Technology and a DualSeal Ring Design that provides superior sealing and joint strength. Compatible with R410A and other commonly used refrigerant gases and oils.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology
• DualSeal Ring Design provides superior sealing and joint strength with 200% more surface contact.

Product Highlights

This copper press long radius elbow is compatible with leading full-size press tools

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP03050

Technical Specifications

• Max Temp (F): 250°F
• Product Type: 45° Elbow
• Material: Copper
• Size: 1-3/8"
• Max Pressure (PSI): 700
• Connection Type: Press
• Min Temp (F): -40°F
• End Type: ACR Press
• End Size: 1 3/8 in
• Second End Size: 1 3/8 in
• Overall Width: 1.75 in
• Dimension X: 0.79 in
