Mueller Streamline RP03021 ACR Press 45 Deg Elbow 1/2 inch

Product Description

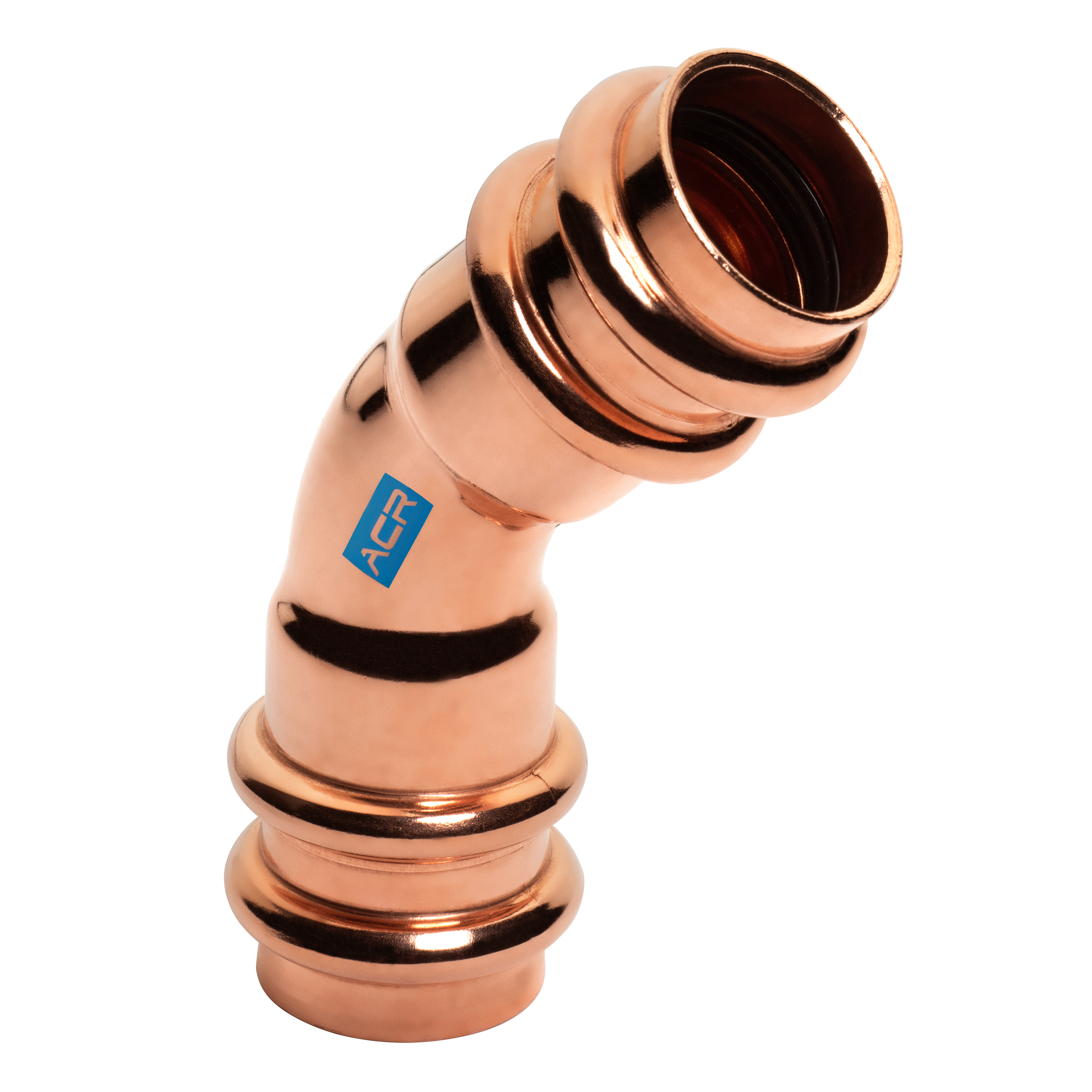

The MUELLER STREAMLINE RP03021 is a 45-degree ACR press elbow with a 1/2 inch nominal size. This fitting is approved for use with Type ACR, L, and K hard and soft copper tube. It features Two Ring Advanced Press (T.R.A.P.) Technology and a DualSeal Ring Design for enhanced sealing and joint strength. Compatible with leading full-size press tools.

• Approved for use with Type ACR, L, K hard and soft copper tube
• Features Two Ring Advanced Press (T.R.A.P.) Technology
• DualSeal Ring Design provides superior sealing and joint strength

Product Highlights

ACR press fitting with advanced sealing technology, compatible with various copper tube types and press tools.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP03021

Technical Specifications

• Manufacturer: Mueller Streamline
• Material: Copper
• End Type: ACR Press
• End Size: 1/2 in
• Second End Size: 1/2 in
• Overall Length: 1.65 in
• Overall Height: 2.27 in
• Overall Width: 0.79 in
• Operating Temperature (Min.): -40°F
• Operating Temperature (Max.): 250°F
• Second End Type: ACR Press
• Bend Angle: 45 Deg
• Nominal Size A: 1/2 inch
• Nominal Size B: 1/2 inch
• Connection Type: Press x Press
• Item Name: Elbow
• End Style: Press
• Fitting/Connector Type: 45 deg Elbow
• Nominal Size: 1/2 in
• Pressure Rating: 700 psi
• Series: RP
• Temperature Rating: 250 deg F
• Brand: Streamline
• MPN: RP03021
• UPC: 685768450870
