Mueller Streamline RP02717 1/2 inches Streamline Acr Press Lr 90 Ell

Product Description

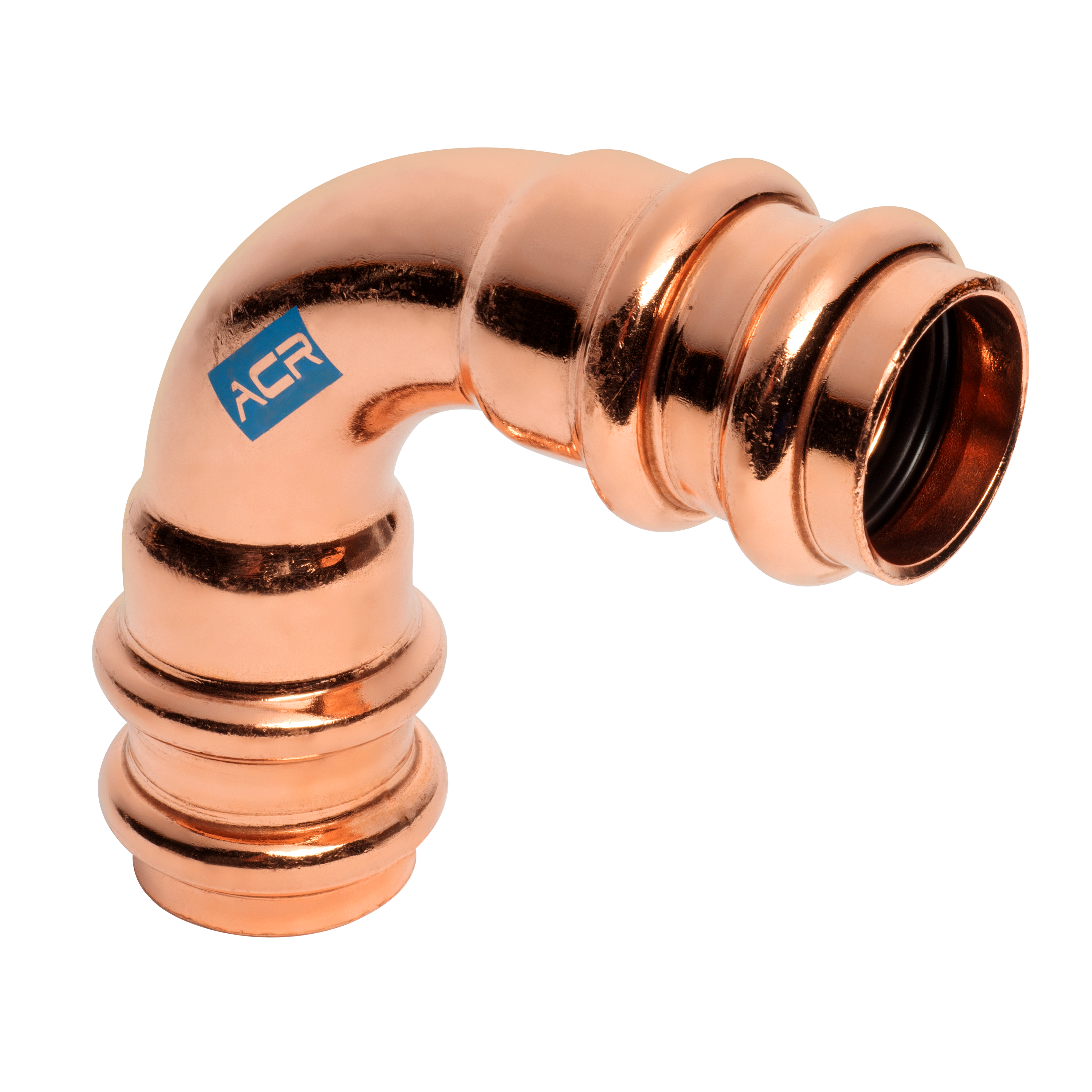

The MUELLER STREAMLINE RP02717 is a 1/2" Streamline ACR Press LR 90 Ell. This elbow is approved for use with Type ACR, L, K hard and soft copper tube. It features Two Ring Advanced Press (T.R.A.P.) Technology with DualSeal Ring Design for superior sealing and joint strength. Compatible with leading full-size press tools, it ensures leak protection with its TrapZone Leak Barrier.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Features Two Ring Advanced Press (T.R.A.P.) Technology
• DualSeal Ring Design provides superior sealing and joint strength

Product Highlights

1/2" ACR press long radius 90 degree elbow with T.R.A.P. technology for HVACR applications, ensuring a secure and reliable connection.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP02717

Technical Specifications

• MPN: RP02717
• Brand: MUELLER STREAMLINE
• Approved for use with: Type ACR, L, K hard and soft copper tube.
• Material: COPPER
• Operating Temperature [Min]: -40 °F
• Operating Temperature [Max]: 250 °F
• Operating Pressure [Max]: 700 psi
• End Type: ACR Press
• End Size: 1/2 in
• Second End Type: ACR Press
• Second End Size: 1/2 in
• Overall Length: 2.25 in
• Overall Height: 2.25 in
• Overall Width: 0.79 in
• Dimension X: 0.75 in
• Bend Angle: 90 Deg
• Nominal Size A: 1/2 inch
• Nominal Size B: 1/2 inch
• Connection Type: Press x Press
