Mueller Streamline RP02350 1 3/8 inches Streamline ACR Press FTG X P LR 90 Ell

Product Description

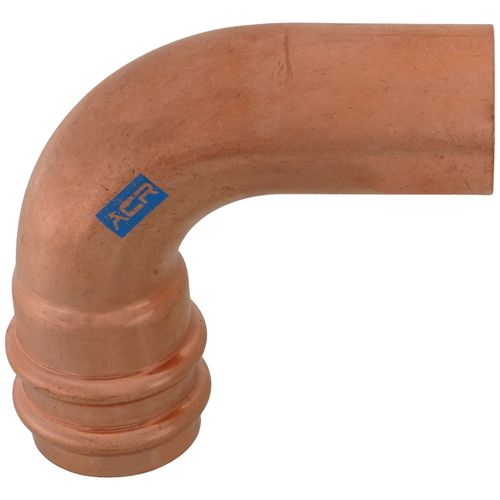

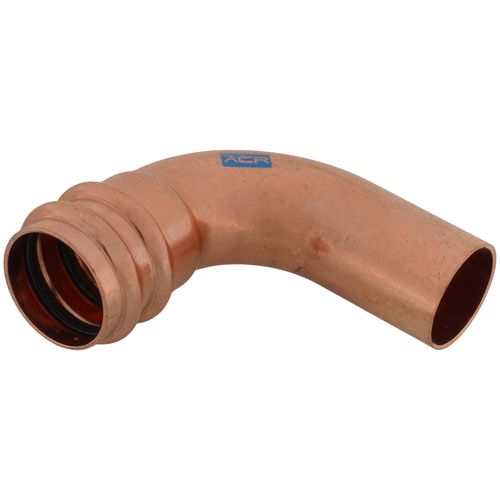

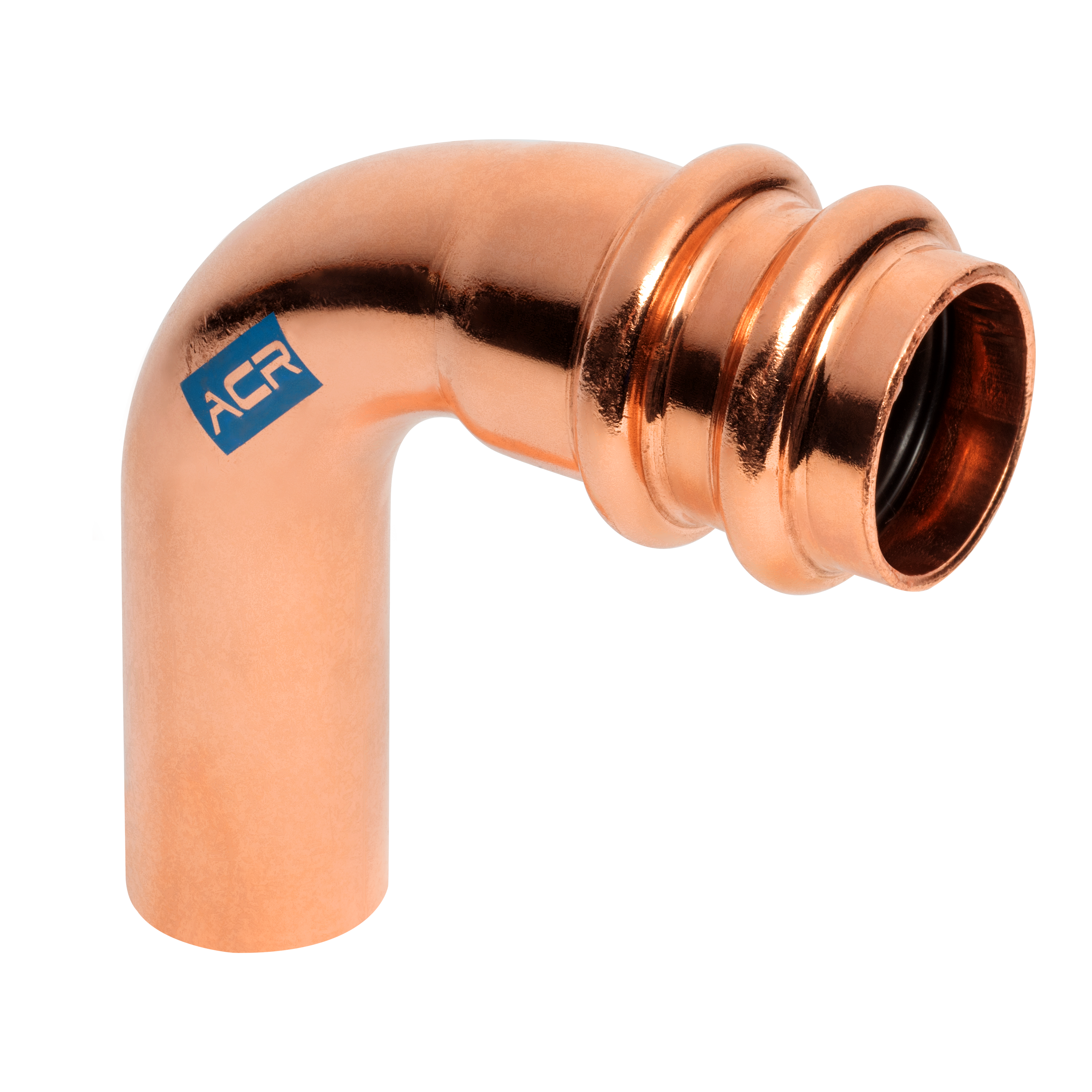

The MUELLER STREAMLINE RP02350 is a 1 3/8" Streamline ACR Press FTG X P LR 90 Ell. This elbow fitting is approved for use with Type ACR, L, K hard and soft copper tube. It features Two Ring Advanced Press (T.R.A.P.) Technology and a DualSeal Ring Design that provides superior sealing and joint strength. Compatible with R410A and other commonly used refrigerant gases and oils.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology
• DualSeal Ring Design provides superior sealing and joint strength with 200% more surface contact.

Product Highlights

This 90 degree elbow fitting offers reliable performance and is compatible with leading full-size press tools.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP02350

Technical Specifications

• Size: 1-3/8"
• Max Temp (F): 250°F
• Material: Copper
• Min Temp (F): -40°F
• Connection Type: Press
• Max Pressure (PSI): 700
• Product Type: 90° Elbow
• Operating Temperature [Min]: -40 °F
• Operating Temperature [Max]: 250 °F
• Operating Pressure [Max]: 700 psi
• End Type: Fitting
• End Size: 1 3/8 in
• Second End Type: ACR Press
• Second End Size: 1 3/8 in
• Overall Length: 3.91 in
• Overall Height: 4.18 in
• Overall Width: 1.75 in
• Dimension X: 1.65 in
• Dimension Z: 3.31 in
