Mueller Streamline RP02055 acr press lr 90 ell 1-3/8 inches

Product Description

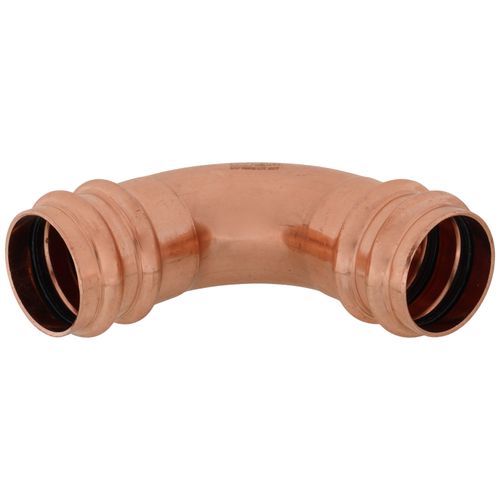

The MUELLER STREAMLINE RP02055 is a 1-3/8" OD ACR Copper Press Long Radius 90° Elbow. It is approved for use with Type ACR, L, K hard and soft copper tube. Compatible with R410A and other commonly used refrigerant gases and oils. Features Two Ring Advanced Press (T.R.A.P.) Technology.

• 1-3/8" Copper Press Connection
• DualSeal Ring Design provides superior sealing and joint strength
• Compatible with leading full-size press tools

Product Highlights

This 90 degree elbow fitting is designed for HVAC and VRF applications, offering reliable press connections for copper tubes.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP02055
• Country of Origin: KOREA, REPUBLIC OF

Technical Specifications

• Max Pressure (PSI): 700
• Size: 1-3/8"
• Min Temp (F): -40°F
• Max Temp (F): 250°F
• Material: Copper
• Connection Type: Press
• Product Type: 90° Elbow
• Approved for use with: Type ACR, L, K hard and soft copper tube
• Operating Temperature [Min]: -40 °F
• Operating Temperature [Max]: 250 °F
• Operating Pressure [Max]: 700 psi
• End Type: ACR Press
• End Size: 1 3/8 in
• Second End Type: ACR Press
• Second End Size: 1 3/8 in
• Overall Length: 4.10 in
• Overall Height: 4.10 in
• Overall Width: 1.75 in
• Dimension X: 1.65 in
• Description: Elbow 90° P x P
• Nom. Size: 1-3/8"
• Length (In.): 3.37
• Width (In.): 1.75
• Height (In.): 1.75
• Connection Size (In.): 1.375
