Mueller Streamline RP01956 ACR Press Extended No-Stop Coupling 1 3/8 inches

Product Description

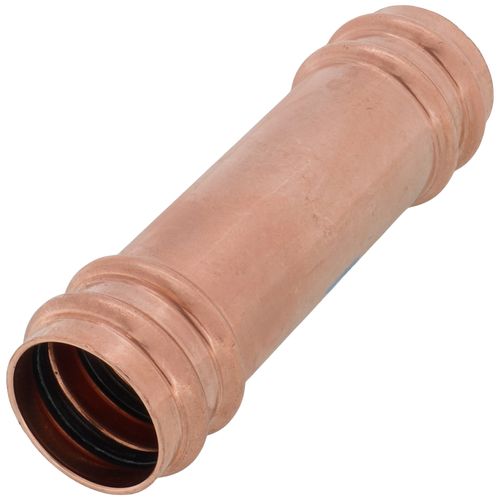

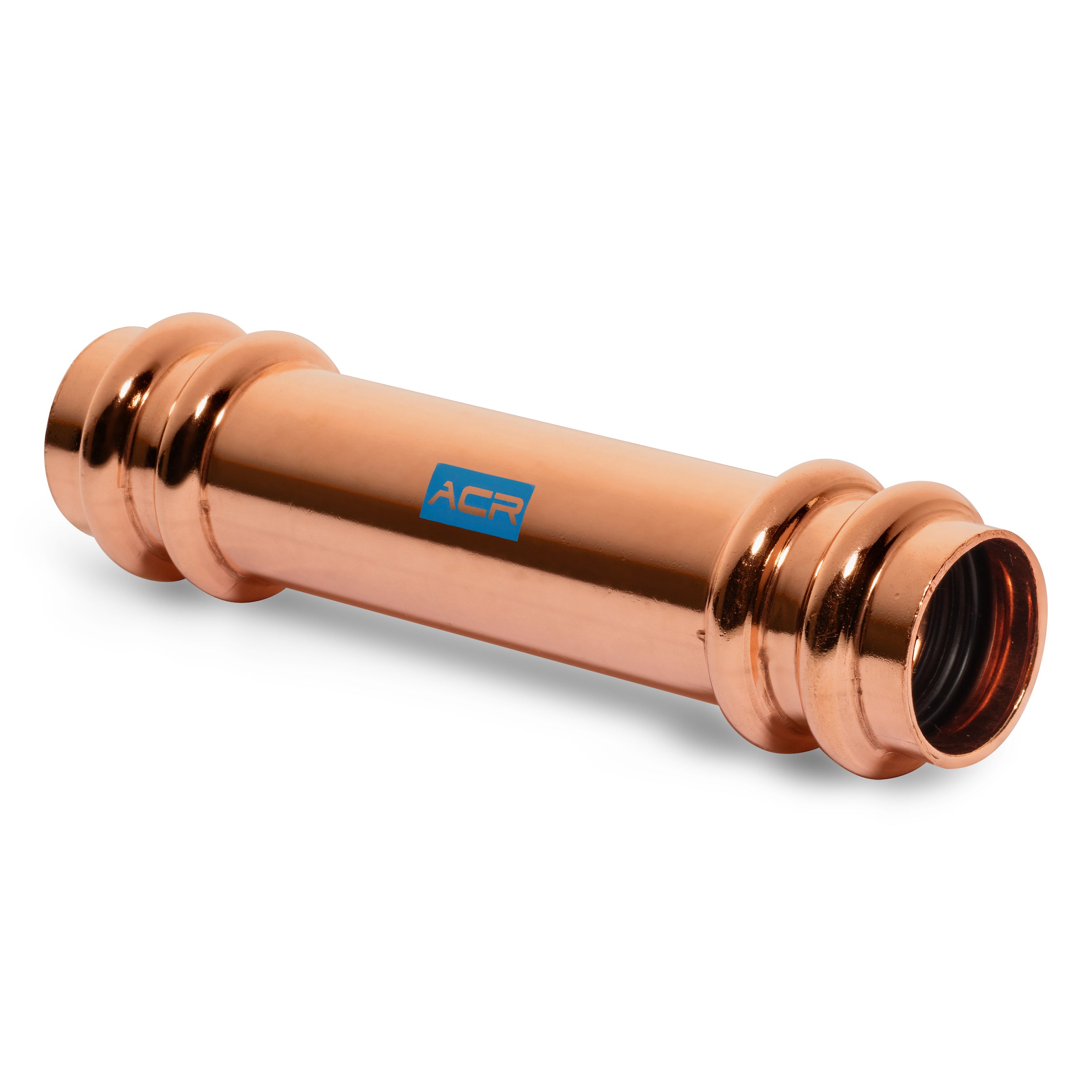

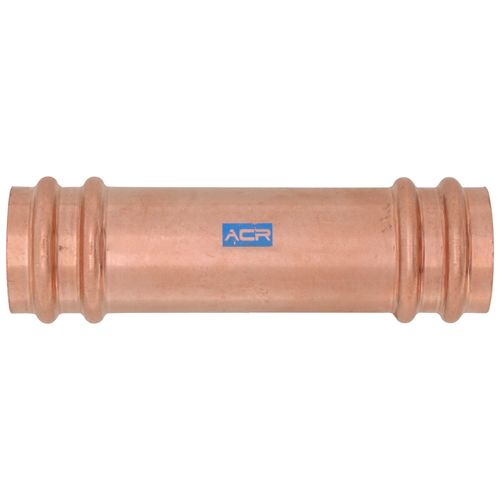

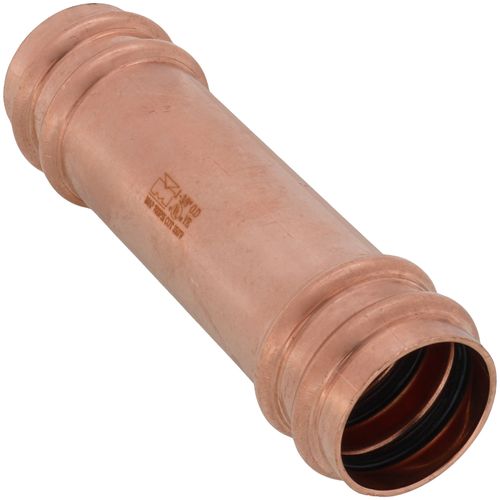

The MUELLER STREAMLINE RP01956 is a 1 3/8" OD ACR copper press extended length coupling with a no-stop design. It is approved for use with Type ACR, L, K hard and soft copper tube and features industry-leading Two Ring Advanced Press (T.R.A.P.) Technology. Compatible with R410A and other commonly used refrigerant gases and oils.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology
• DualSeal Ring Design provides superior sealing and joint strength with 200% more surface contact.

Product Highlights

ACR press extended no-stop coupling made of copper with Two Ring Advanced Press (T.R.A.P.) Technology.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP01956

Technical Specifications

• Product Type: Coupling
• Material: Copper
• Min Temp (F): -40°F
• Connection Type: Press
• Size: 1-3/8"
• Max Temp (F): 250°F
• Operating Temperature [Min]: -40 ºF
• Operating Temperature [Max]: 250 ºF
• End Type: ACR Press
• End Size: 1 3/8 in
• Second End Type: ACR Press
• Second End Size: 1 3/8 in
• Overall Length: 5.51 in
• Overall Height: 1.75 in
• Overall Width: 1.75 in
