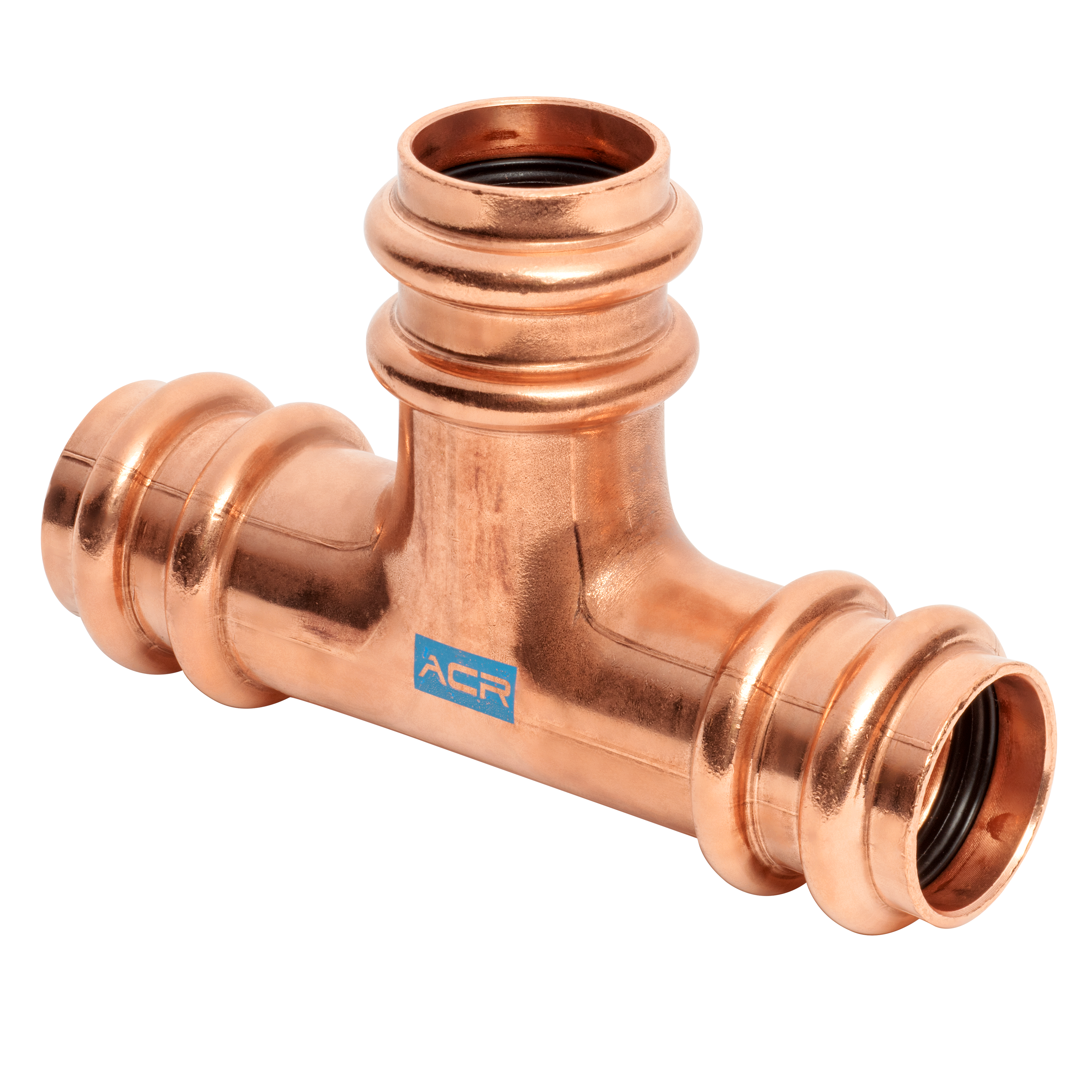

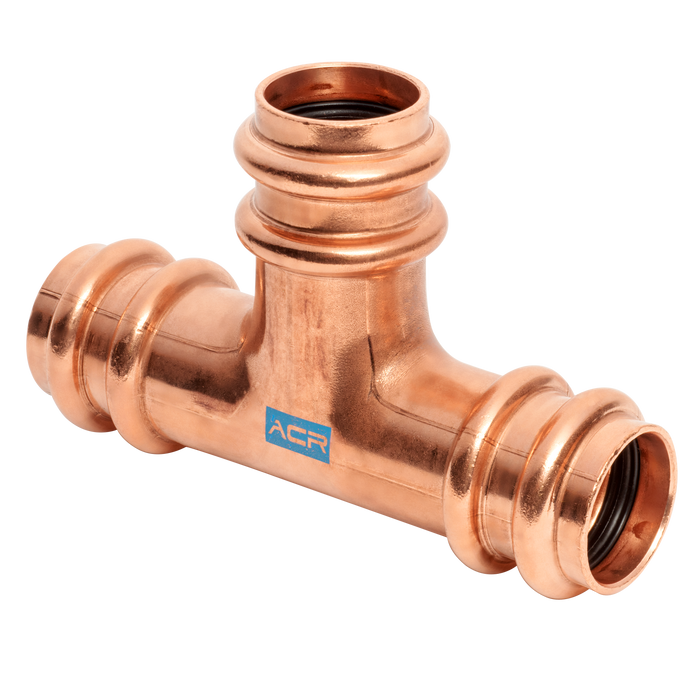

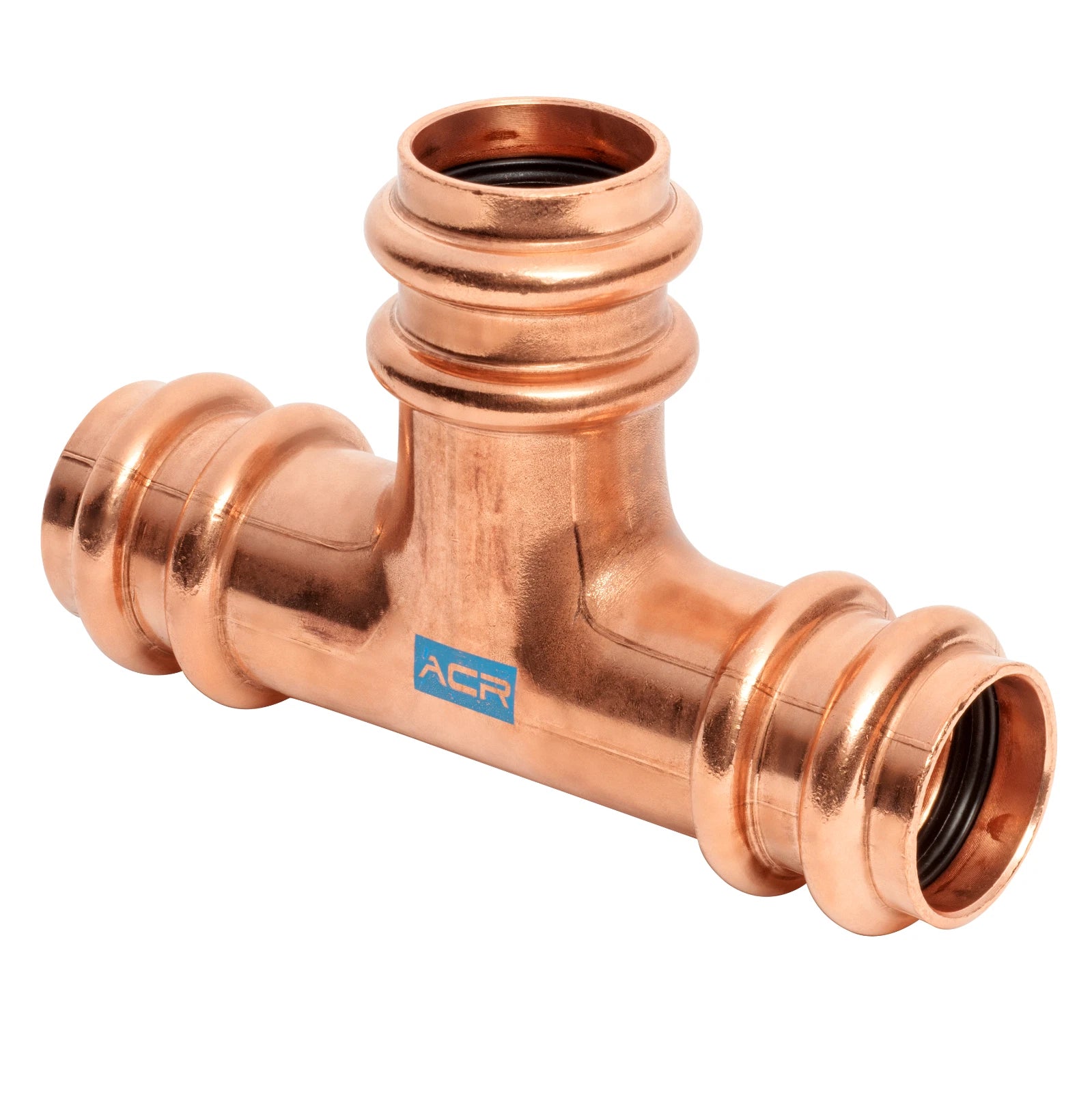

Mueller Streamline PRESS-RP04000 ACR Copper Press Tee 3/8

Product Description

The Mueller Streamline ACR Copper Press Tee is a component used in HVACR systems. This fitting, model PRESS-RP04000, is made from copper and is suitable for various copper tubing types including ACR, L, and K. It is capable of handling R410A refrigerants among others. The fitting incorporates advanced T.R.A.P. Technology that includes a DualSeal ring for reliable performance.

• Three ACR press end connections.
• Rated for a maximum operating pressure of 700 psi.
• Constructed entirely from durable copper material.

Product Highlights

This copper press tee is ideal for professionals working in HVACR applications, ensuring a secure and efficient connection in refrigerant systems.

Product Information

Standard Information

• Material: Copper
• End Type: ACR Press

Technical Specifications

• End Size: 3/8 in
• Maximum Operating Pressure: 700 psi
• Operating Temperature [Min]: -40 F
• Operating Temperature [Max]: 250 F
• Overall Length: 2.87 in
• Overall Height: 1.75 in
• Overall Width: 0.63 in
• Weight: 0.19 lb
