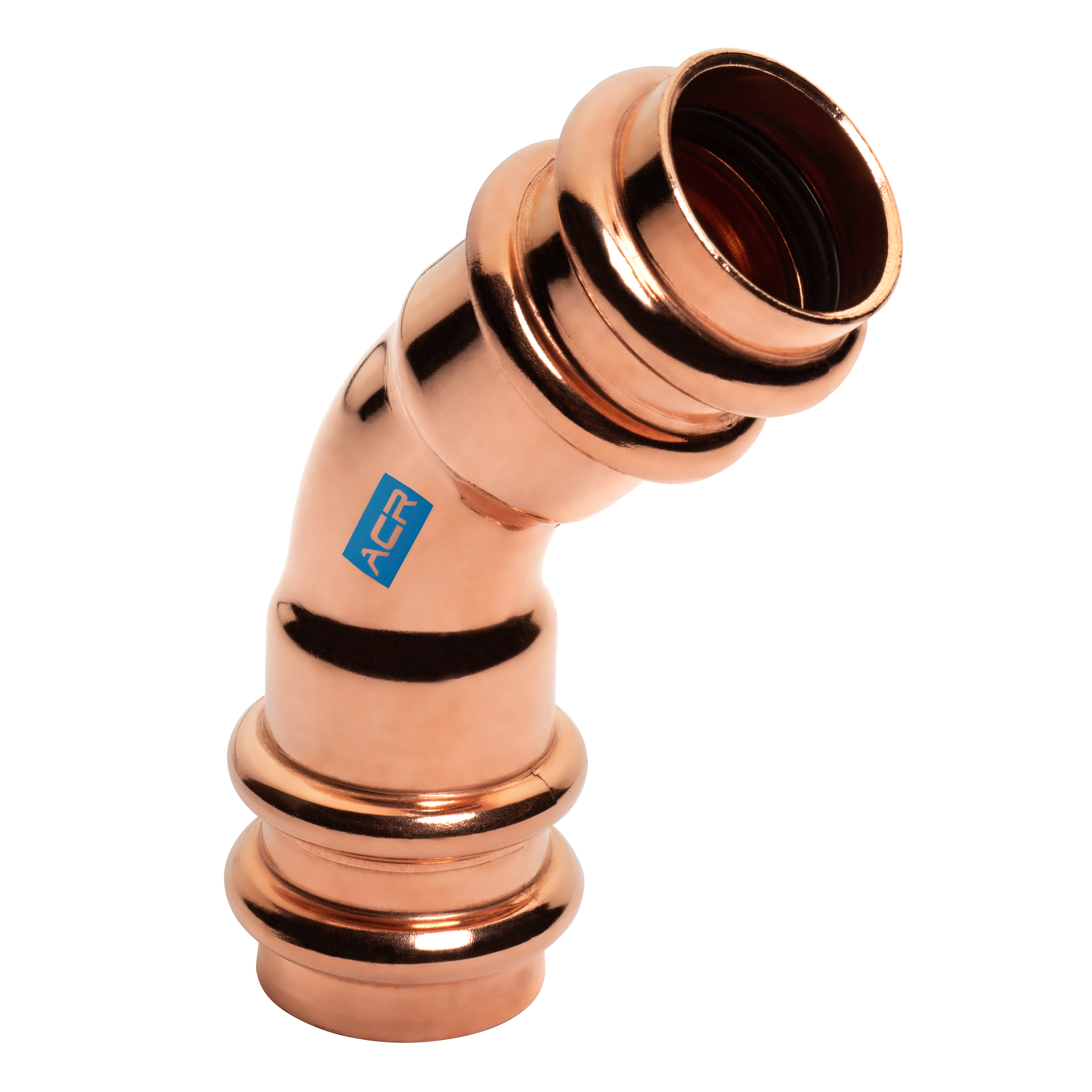

Mueller Streamline PRESS-RP03030 ACR 45° Elbow (P X P)

Product Description

The Mueller Streamline PRESS-RP03030 ACR 45° Elbow (P X P) is designed for use with Type ACR, L, and K hard and soft copper tube. It features Two Ring Advanced Press (T.R.A.P.) Technology and a DualSeal Ring Design for enhanced sealing and joint strength. Compatible with leading full-size press tools and R410A refrigerant.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Features Two Ring Advanced Press (T.R.A.P.) Technology
• DualSeal Ring Design provides superior sealing and joint strength

Product Highlights

This copper ACR press elbow offers reliable performance with its advanced sealing technology and broad compatibility.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PRESS-RP03030

Technical Specifications

• Approved for use with: Type ACR, L, K hard and soft copper tube.
• Industry-leading: Two Ring Advanced Press (T.R.A.P.) Technology
• DualSeal Ring Design: provides superior sealing and joint strength with 200% more surface contact.
• TrapZone Leak Barrier: innovative vacuum-zone further ensures leak protection.
• Force360 Press Contour: provides more uniform joint compression and sealing performance.
• Tri-Lock Press Profile: creates superior joint strength and pressure handling capabilities.
• Compatible with: leading full-size press tools on the market.
• Material: COPPER
• End Type: ACR Press
• End Size: 3/4 in
• Second End Size: 3/4 in
• Overall Length: 2.12 in
• Overall Height: 3.39 in
• Overall Width: 1.07 in
• Dimension X: 0.55 in
• Qty Pcs / Bag: 3
• Master Qty Pcs / Box: 120
• Operating Temperature (Min.): -40°F
• Operating Temperature (Max.): 250°F
• Second End Type: ACR Press
• Bend Angle: 45 Deg
• Nominal Size A: 3/4 inch
• Nominal Size B: 3/4 inch
• Connection Type: Press x Press
