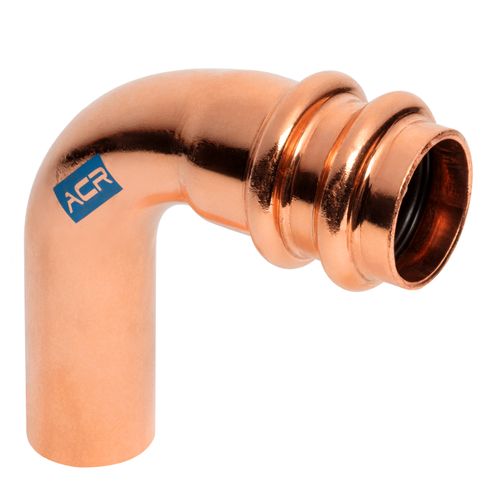

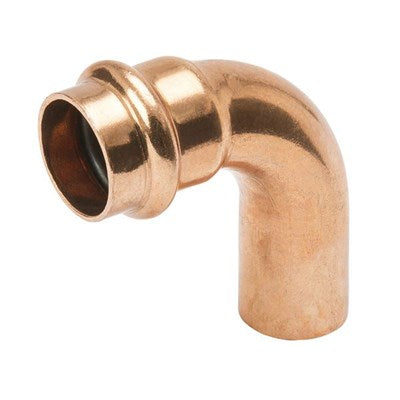

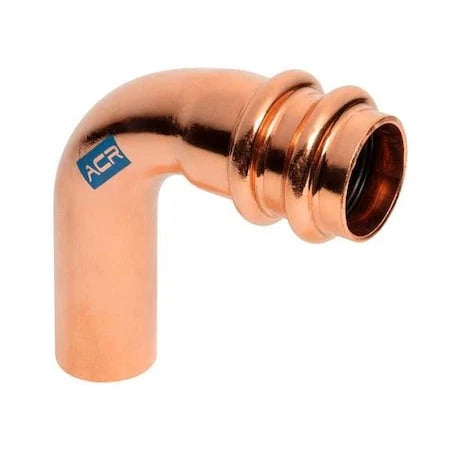

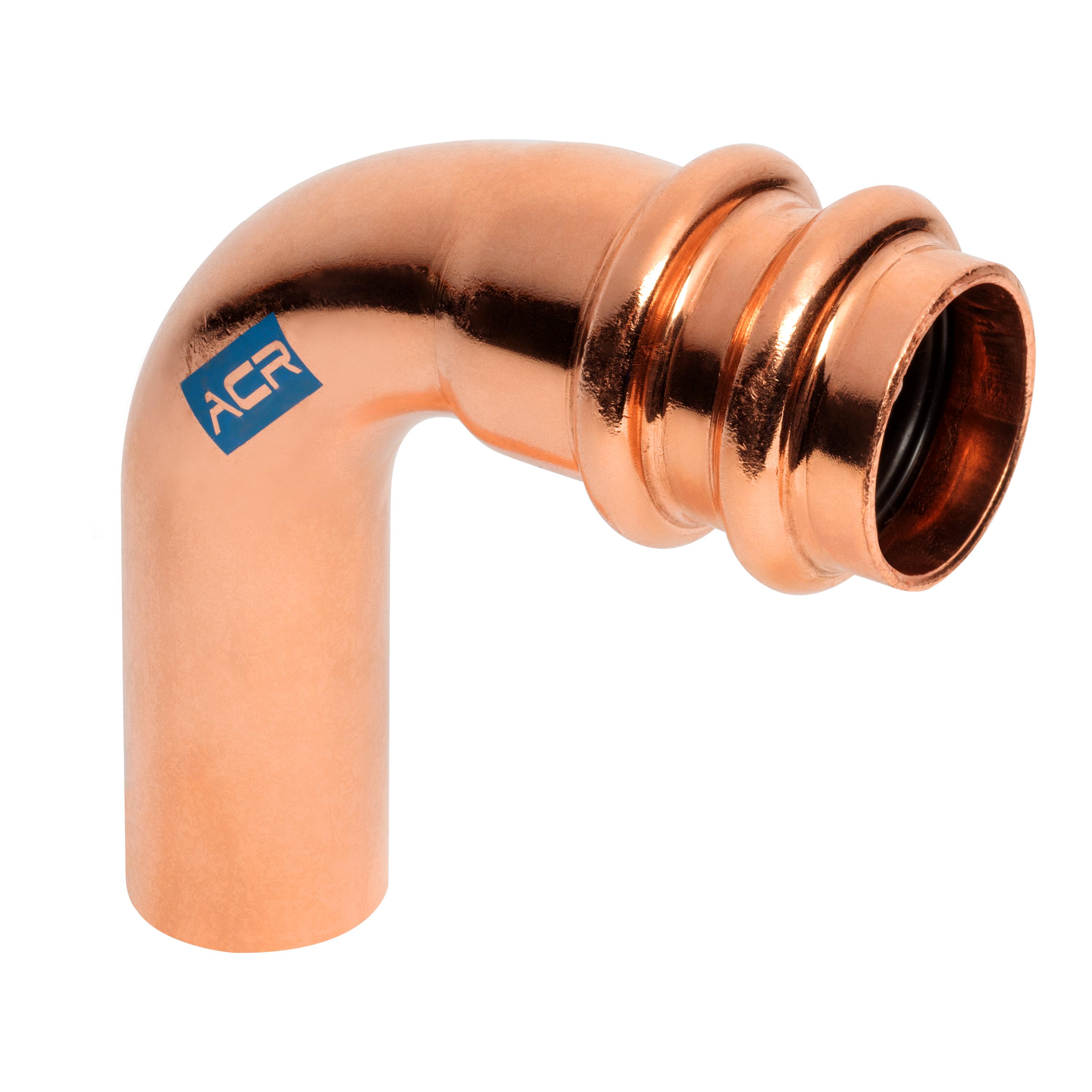

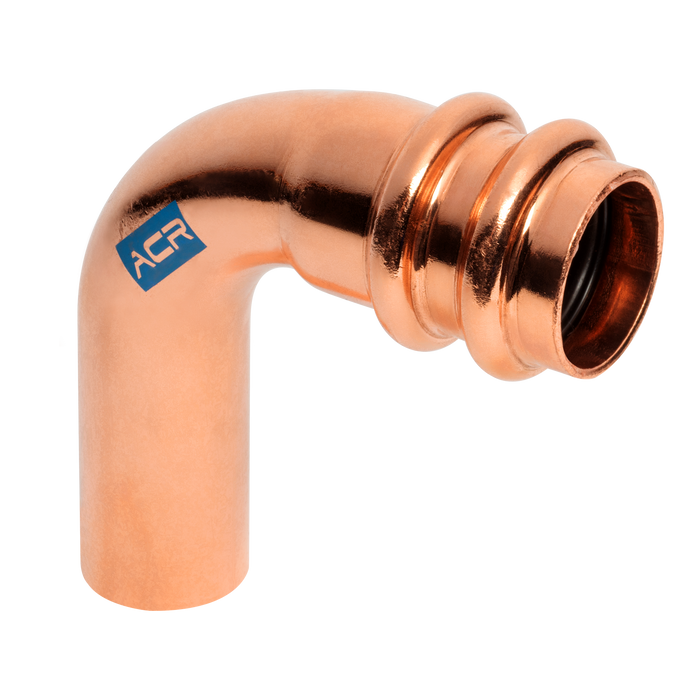

Mueller Streamline PRESS-RP02808 ACR 90-Degree Street Elbow

Product Description

The Mueller Streamline ACR 90-Degree Street Elbow with MPN PRESS-RP02808 connects two sections of tubing at a 90-degree angle. This copper fitting has press connections on both ends and is intended for HVACR applications. It works with R410A refrigerant and other common refrigerant gases and oils. The product features T.R.A.P. Technology that includes a DualSeal Ring Design.

• Fitting end type on both sides
• Constructed from durable copper
• Rated for maximum operating pressure of 700 psi

Product Highlights

This fitting is effective in high-pressure systems and compatible with various refrigerants.

Product Information

Standard Information

• Brand: Mueller Streamline
• MPN: PRESS-RP02808

Technical Specifications

• Product Type: 90-Degree Elbow
• Material: Copper
• End Type: Fitting
• Second End Type: ACR Press
• End Size: 1/4 inches
• Second End Size: 1/4 inches
• Operating Temperature [Min]: -40 °F
• Operating Temperature [Max]: 250 °F
• Operating Pressure [Max]: 700 psi
• Overall Length: 1.60 inches
• Overall Height: 1.79 inches
• Overall Width: 0.48 inches
• Dimension X: 0.51 inches
• Dimension Z: 1.56 inches
• Weight: 0.03 lbs
• Connection Type: Press
