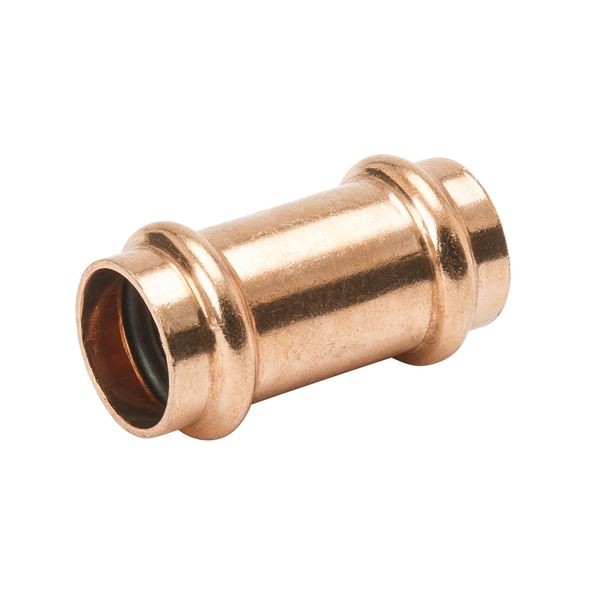

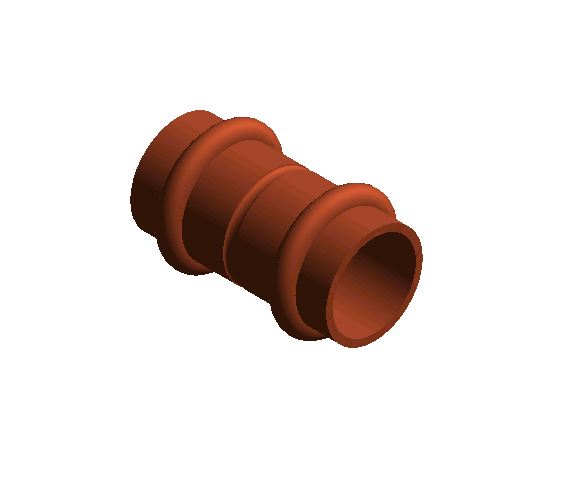

Mueller Streamline PRESS-PF10147 PRS Coupling w/ Stop (PxP) SD

Product Description

The MUELLER STREAMLINE PRESS-PF10147 Streamline® PRS™ Copper-Press Fitting provides a flameless joining alternative for plumbing or mechanical applications. It is available in sizes ranging from 1/2” to 4” in diameter. The coupling has a maximum operating pressure of 300 psi and can be used in temperatures from -20 °F to 250 °F.

• Flameless joining alternative
• For plumbing or mechanical applications
• Available sizes ranging from 1/2” to 4” in diameter

Product Highlights

Copper press fitting for plumbing and mechanical applications. Features flameless joining and a wide range of available sizes.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PRESS-PF10147

Technical Specifications

• Material: COPPER
• Operating Temperature [Min]: -20 °F
• Operating Temperature [Max]: 250 °F
• Operating Pressure [Max]: 300 psi
• End Type: Press
• End Size: 1 in
• Second End Type: Press
• Second End Size: 1 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 1.81 in
• Overall Height: 1.47 in
• Overall Width: 1.47 in
