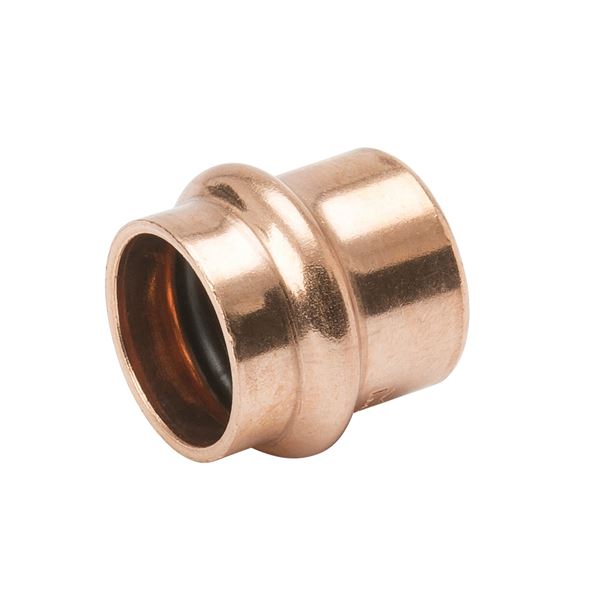

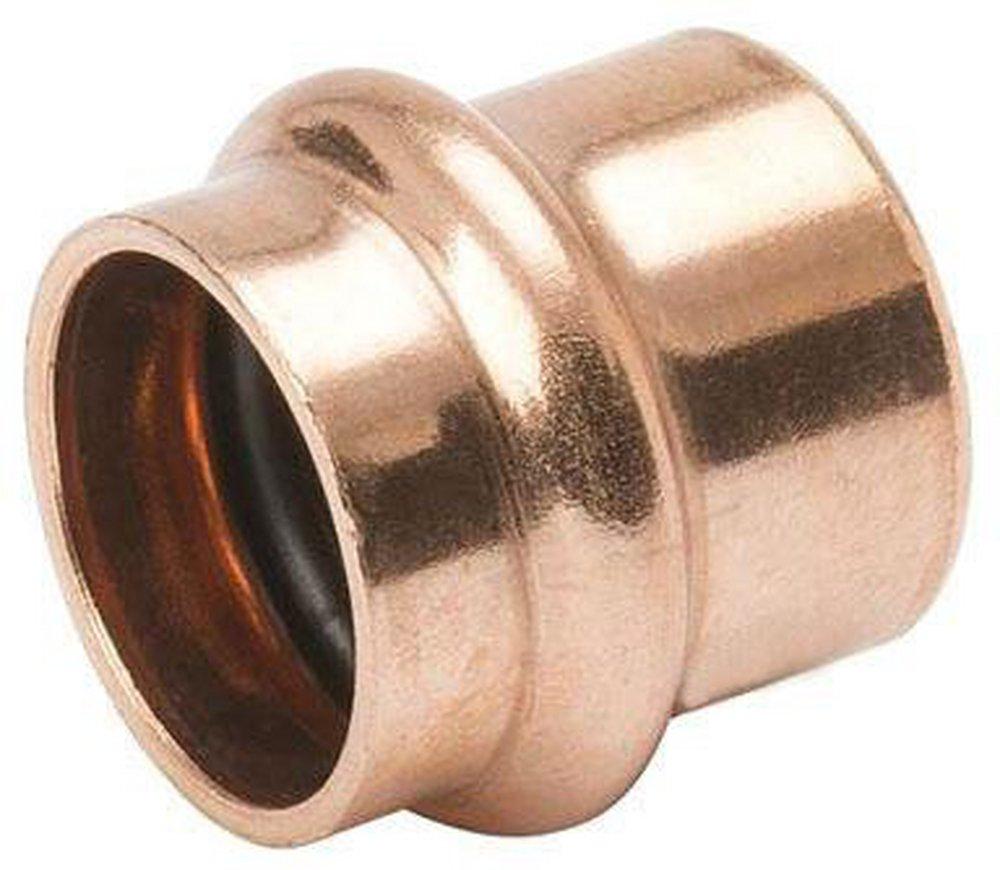

Mueller Streamline PRESS-PF07011 PRS™ Cap (P) SD

Product Description

The Mueller Streamline PRESS-PF07011 Streamline® PRS™ Copper-Press Fittings offer a flameless joining alternative for plumbing or mechanical applications. It is designed for use in above and below ground applications as allowed by local code. Available in sizes ranging from 1/2” to 4” in diameter.

• Flameless joining alternative
• For plumbing or mechanical applications
• Available sizes ranging from 1/2” to 4” in diameter

Product Highlights

The Streamline® PRS™ Copper-Press Fittings provide a flameless joining alternative for plumbing or mechanical applications.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PRESS-PF07011

Technical Specifications

• Material: COPPER
• Operating Temperature [Min]: -20 ºF
• Operating Temperature [Max]: 250 ºF
• Operating Pressure [Max]: 300 psi
• End Type: Press
• End Size: 1 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 0.84 in
• Overall Height: 1.47 in
• Overall Width: 1.47 in
• End Connection 1: Press
• End Connections: Press
• Fitting Size 1: 1 in
• Fitting Sizes: 1 in
• Fitting Type: Cap
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Maximum Temperature: 250
• NSF Certified: Yes
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Collection: Streamline®
