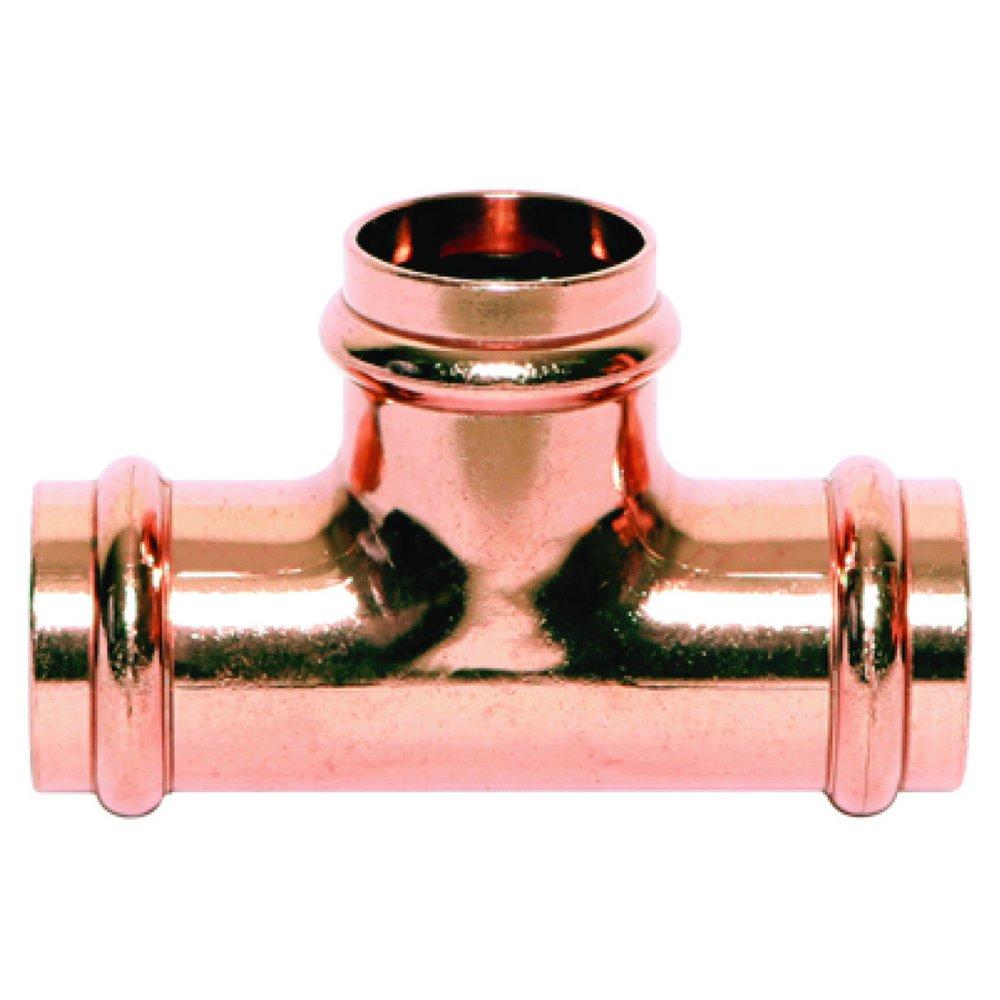

Mueller Streamline PRESS-PF04048 PRS Tee (PxPxP) SD

Product Description

The MUELLER STREAMLINE PRESS-PF04048 PRS Tee is designed for plumbing and mechanical applications, suitable for ASTM B88 (Types K, L, M) hard-drawn and soft copper tubes. It features SURE PRS Seal Technology for 360° leak detection and anti-creep protection. This copper tee has a maximum operating pressure of 300 psi and an operating temperature range of -20°F to 250°F.

• Designed for ASTM B88 (Types K, L, M) hard-drawn and soft copper tubes.
• Features SURE PRS Seal Technology for 360° leak detection.
• Operating temperature range: -20° F to 250° F

Product Highlights

Copper tee designed for plumbing and mechanical applications with leak detection and anti-creep protection.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PRESS-PF04048
• Country of Origin: United States

Technical Specifications

• Material: COPPER
• Operating Temperature [Min]: -20 °F
• Operating Temperature [Max]: 250 °F
• Operating Pressure [Max]: 300 psi
• End Type: Press
• End Size: 1 in
• Second End Type: Press
• Second End Size: 1 in
• Third End Type: Press
• Third End Size: 1 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 3.58 in
• Overall Height: 2.43 in
• Overall Width: 1.47 in
• X: 0.89 in
• X1: 0.89 in
• Y: 0.79 in
• Mueller Description: 1 P X P X P TEE
• Manufacturer Part Number: 9099300PCU
• Manufacturer: NIBCO INC
• Brand: NIBCO
• Model: 9099300PCU
• Type: Tee
• Country of Origin: United States
• ANSI: ANSI 372, ANSI 61, ANSI 61-G
• ASME: ASME B16.51
• ASTM: ASTM B-88 Type K, ASTM B-88 Type L, ASTM B-88 Type M
• CSA Certified: CSA MSE 13
• Clean Bagged: No
• Collection: Streamline®
• End Connection 1: Press
• End Connection 2: Press
• End Connection 3: Press
• End Connections: Press
• FM Approved: No
• Fitting Size 1: 1 in
• Fitting Size 2: 1 in
• Fitting Size 3: 1 in
• Fitting Sizes: 1 in
• Fitting Type: Tee
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material Type: C12200, EPDM
• Maximum Temperature: 250
• NSF: NSF 372, NSF 61, NSF 61-G
• NSF Certified: Yes
• Origin: Global
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
