Mueller Streamline PRESS-PF04043 PRS Tee (PxPxP) SD

Product Description

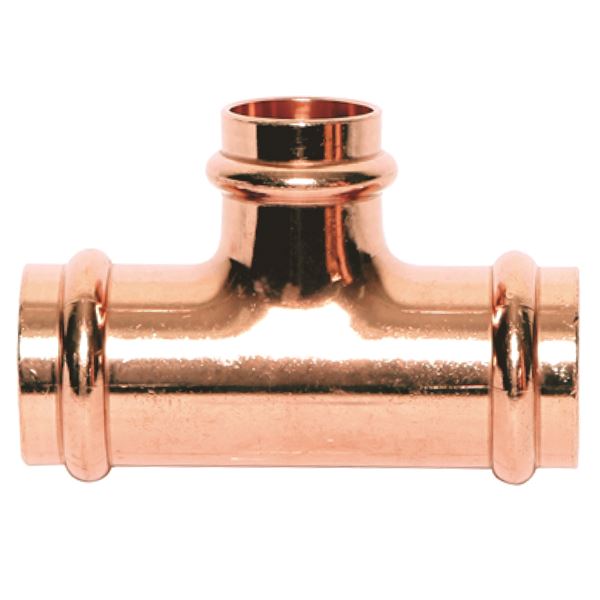

The MUELLER STREAMLINE PRESS-PF04043 is a copper tee with press end connections. This P x P x P configured tee features a 3/4'' end size and two 1/2'' end sizes. It is suitable for various plumbing and heating applications.

• Constructed from durable copper material.
• Features press end connections for secure and efficient installation.
• Complies with industry standards such as ASME B16.51, IAPMO PS-117, and NSF/ANSI 61.

Product Highlights

Copper tee with press connections, ideal for plumbing and heating systems, ensuring reliable performance and adherence to industry standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PRESS-PF04043

Technical Specifications

• Material: COPPER
• Operating Temperature [Min]: -20 ºF
• Operating Temperature [Max]: 250 ºF
• Operating Pressure [Max]: 300 psi
• End Type: Press
• End Size: 3/4 in
• Second End Type: Press
• Second End Size: 1/2 in
• Third End Type: Press
• Third End Size: 1/2 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 3.03 in
• Overall Height: 1.91 in
• Overall Width: 1.22 in
• X: 0.61 in
• X1: 0.77 in
• Y: 0.55 in
• Mueller Description: 3/4 P X 1/2 P X 1/2 P TE
