Mueller Streamline PRESS-PF04041 PRS Tee (PxPxP) SD

Product Description

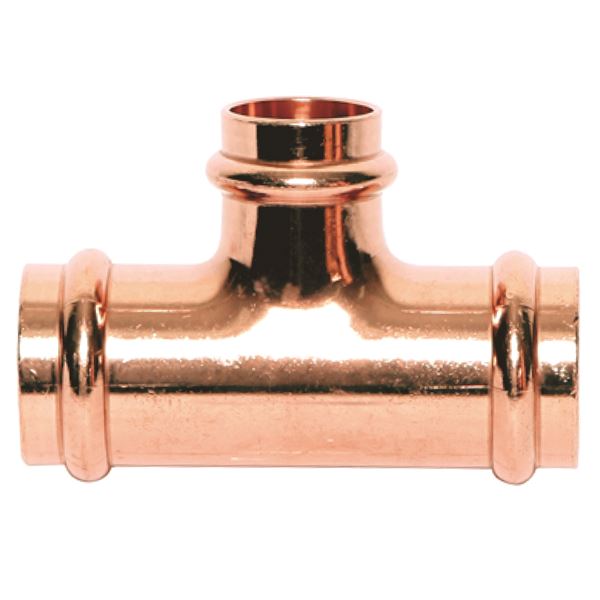

The MUELLER STREAMLINE PRESS-PF04041 is a copper tee with press end connections. This fitting features a 3/4'' x 1/2'' x 3/4'' size and is suitable for various plumbing applications. It is designed to withstand a maximum operating pressure of 300 psi and temperatures from -20 ºF to 250 ºF.

• Constructed from copper for durability and corrosion resistance.
• Features press end connections for quick and secure installation.
• Complies with industry standards such as ASME B16.51, IAPMO PS-117, and NSF/ANSI 61.

Product Highlights

Copper tee with press connections, ideal for plumbing systems requiring secure and efficient connections.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PRESS-PF04041

Technical Specifications

• Material: COPPER
• Operating Temperature [Min]: -20 ºF
• Operating Temperature [Max]: 250 ºF
• Operating Pressure [Max]: 300 psi
• End Type: Press
• End Size: 3/4 in
• Second End Type: Press
• Second End Size: 1/2 in
• Third End Type: Press
• Third End Size: 3/4 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 3.35 in
• Overall Height: 2.07 in
• Overall Width: 1.22 in
• X: 0.81 in
• X1: 0.89 in
• Y: 0.55 in
• Mueller Description: 3/4 P X 1/2 P X 3/4 P TE
