Mueller Streamline PRESS-PF04033 PRS Tee (PxPxP) SD

Product Description

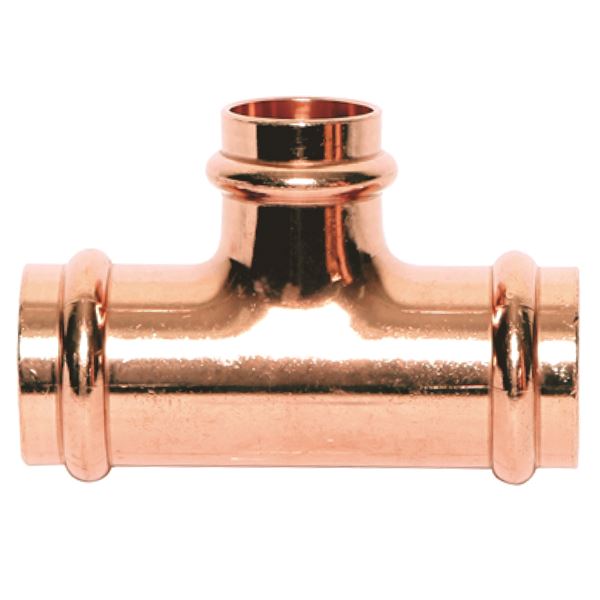

The MUELLER STREAMLINE PRESS-PF04033 PRS Tee is a copper tee with press end connections. It features end sizes of 3/4'' x 3/4'' x 1/2'' and is suitable for applications with a maximum operating pressure of 300 psi and temperatures ranging from -20°F to 250°F. This tee meets ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, and CSA TIL-MSE-13 standards.

• Constructed from copper for durability and corrosion resistance.
• Features press end connections for quick and secure installation.
• Compliant with industry standards including ASME B16.51 and NSF/ANSI 61.

Product Highlights

Copper tee with press connections, ideal for plumbing and heating applications requiring secure and reliable connections.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PRESS-PF04033

Technical Specifications

• Material: COPPER
• Operating Temperature [Min]: -20 ºF
• Operating Temperature [Max]: 250 ºF
• Operating Pressure [Max]: 300 psi
• End Type: Press
• End Size: 3/4 in
• Second End Type: Press
• Second End Size: 3/4 in
• Third End Type: Press
• Third End Size: 1/2 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 3.03 in
• Overall Height: 2.01 in
• Overall Width: 1.22 in
