Mueller Streamline PRESS-PF02722 PRS 90° Elbow Long Radius (P x P) SD

Product Description

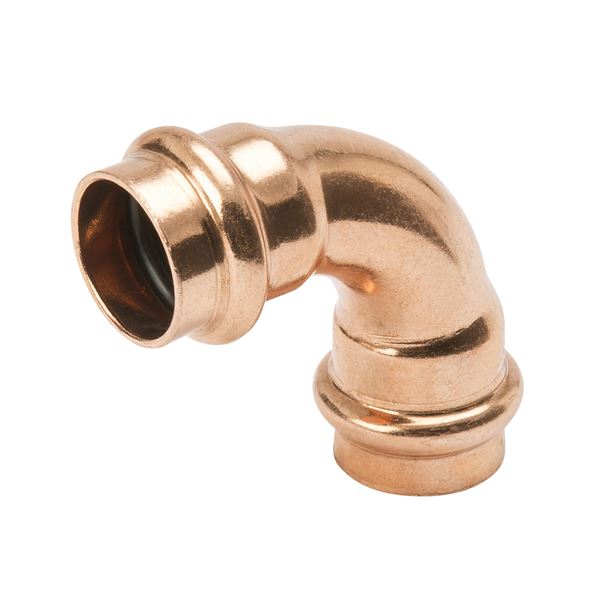

The Mueller Streamline PRESS-PF02722 is a copper elbow with a 90° long radius, designed for press connections. This fitting provides a flameless joining alternative for plumbing and mechanical applications. It has press end types with 1/2 in sizes. It conforms to ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, and CSA TIL-MSE-13 standards.

• Flameless joining alternative
• For plumbing or mechanical applications
• Available sizes ranging from 1/2” to 4” in diameter

Product Highlights

Copper elbow with 90° long radius and press connections for plumbing and mechanical applications.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PRESS-PF02722

Technical Specifications

• Material: COPPER
• Operating Temperature [Min]: -20 °F
• Operating Temperature [Max]: 250 °F
• Operating Pressure [Max]: 300 psi
• End Type: Press
• End Size: 1/2 in
• Second End Type: Press
• Second End Size: 1/2 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 1.96 in
• Overall Height: 1.96 in
• Overall Width: 0.93 in
• X: 0.75 in
• X1: 0.75 in
• Mueller Description: 1/2 P X P LT 90 ELL
